Sistema di controllo lama PowerBlade Leica

Applicazioni

Lo strumento Leica PowerBlade Scraper System è destinato a uso professionale nei seguenti contesti:

• Cantieri edili, infrastrutture e impianti
• Officine, laboratori e produzione industriale
• Manutenzione tecnica specializzata
• Operatori e professionisti del settore Controllo Macchina

Perché sceglierlo

Leica è un marchio riconosciuto nel settore Controllo Macchina, sinonimo di qualità, robustezza e prestazioni affidabili. Scegliere Leica PowerBlade Scraper System significa investire in uno strumento professionale supportato dall'esperienza di AMES Srl, con consulenza pre e post vendita e fornitura su preventivo.

Standard e Conformità

Normative di riferimento: marcatura CE secondo direttive UE applicabili al settore Controllo Macchina, conformità alle normative tecniche e di sicurezza vigenti, documentazione tecnica fornita dal produttore Leica.

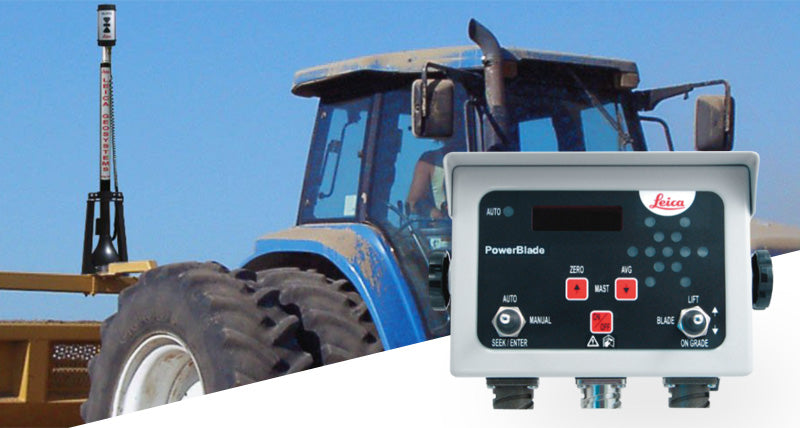

Leica PowerBlade Scraper System (Leica) — Automated grading system for construction and agricultural tractors The Leica PowerBlade system is a complete solution steered by the MCP700 control box – easy-to-use and full of features. A choice of laser receivers allows you to tailor the system to your application. An extremely rugged electric mast and a variety of hydraulic options complete the system. All components have been developed to meet the extra strain experienced on dozers and agricultural tractors. The PowerBlade system features a very rugged and durable design and is up to any challenge: The system can be mounted on a broad range of machinery such as scrapers, dozers and agricultural tractors, automatically controlling and adjusting the work. This feature makes land levelling a simple task. The small size of the control box makes it easy to integrate into any machine. Electric mast MPM700 The electric mast MPM700 was specifically developed for use in tough and demanding environments. The rugged design and the anti-vibration system of the platform are the ultimate combination against damage in harsh construction environments. Laser receiver MLS720 The laser receiver is waterproof (IP68) and uses an LED display that can be easily read, even in strong direct sunlight. The receiver has a 360° capture range, with a measurement window of 190 mm. It features five different indications of grade position. The receiver communicates and is powered via CAN bus from the MCP700.

Caratteristiche principali

• Designed for advanced agricultural land levelling, providing survey capability, automatic averaging and lift functionality
• Variety of hydraulic valves can be operated and tuned (black/white, proportional, Danfoss)
• Choice of manual or automatic level control of the machine
• Quick learning curve due to simple user interface
• Bright LED display that can be read even in strong direct sunlight
• 360° capture range in 190 mm (8”) window with MLS720 receiver
• Proportional detection gives you the accuracy exactly where you need it
• 2,5 mm (1/10”) accuracy independent of laser beam width
• Works with all types of lasers

Vantaggi

• Precisione e affidabilità Leica: qualità comprovata e basso costo totale di proprietà
• Tecnologia di punta: oltre 200 anni di innovazione Leica Geosystems / Hexagon
• Ecosistema integrato: hardware, software di campo/ufficio e servizi cloud Hexagon
• Supporto e assistenza: rete ufficiale e durata nel tempo

Richiedi un preventivo ad AMES Srl per Leica PowerBlade Scraper System: il nostro team ti contatterà con configurazione, disponibilità e condizioni di fornitura.
