IrudekAnchor lanyard NEXION 258 IrudekCode 101007100011
Connect the harness to the anchor and absorb the jolt in the event of a fall from height.
All Irudek products

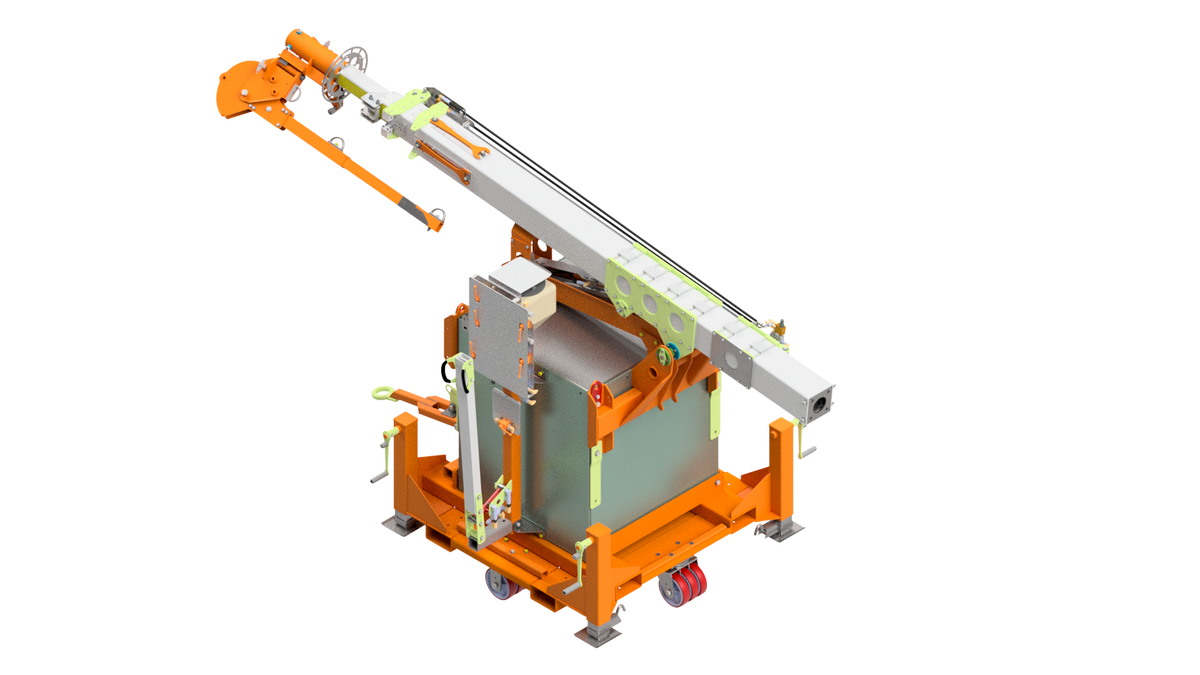

Anchor EXOSPHERE Hydraulic, Stable Ground (Foldable), Irudek
Key features
- StandardEN 795 B | TS 16415
- Load capacity140 kg (per arm)
- Users2 (1 per arm)
- Reach (m)1,8
- Arm angle360° swivel / lockable
- Adjustable height (m)4,7 - 12,1
What it is
Anchor EXOSPHERE hydraulic stable ground (foldable) (code exosphere-idraulico-terreno-stabile-pieghevole) is an Irudek anchor device for fall protection. It is intended for professional use for working at height safely, in accordance with the manufacturer's instructions.
A fall protection anchor is the fixed point, permanent or mobile, to which the worker's fall arrest or rope access system is connected.
What it is for
Used as an anchor point in fall protection systems, as personal protective equipment in hazardous work and for work at height, where access and restraint must be ensured for the whole job.
How to use it
Choose the type according to the substrate (concrete, rock, steel, beam, vehicle) and install it following the manufacturer's instructions, using the specified fixings. Check its condition before use and connect with a connector, preferably above the worker's head. Take into account the fall clearance below the work position; an anchor that has arrested a fall must be taken out of service.
Where it is used
- Industrial construction
- Residential construction
- Workplace safety and PPE
Technical data
- Standard: EN 795 B | TS 16415
- Load capacity: 140 kg (per arm)
- Users: 2 (1 per arm)
- Reach (m): 1,8
- Arm angle: 360° swivel / lockable
- Adjustable height (m): 4,7 - 12,1
- Weight with cement (kg): 4273
- Folded height (m): 2,3
- Folded length (m): 4,4
- Certifications: EN 795
Who it is for
Designed for building maintenance operatives, industrial maintenance technicians and health and safety officers.
Standards and compliance
Device compliant with EN 795 B | TS 16415. The manufacturer's data sheet is available.
Related products
- Anchor EXOSPHERE Hydraulic, Stable Ground, Irudek
- Anchor EXOSPHERE Hydraulic, Irudek
- Harness FR1, Irudek — from the category Fall Arrest Harnesses
- Connector SILVERLIGHT 990 Irudek — from the category Safety Karabiners
- Fall-arrest lanyard with energy absorber Astun Flex Y 180HSS (398) Irudek — from the category Lanyards and Energy Absorbers
- Browse the whole category: Anchors
Before you order
In your request, please state the length and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 10
| Standard | EN 795 B | TS 16415 |
|---|---|
| Load capacity | 140 kg (per arm) |
| Users | 2 (1 per arm) |
| Reach (m) | 1,8 |
| Arm angle | 360° swivel / lockable |
| Adjustable height (m) | 4,7 - 12,1 |
| Weight with cement (kg) | 4273 |
| Folded height (m) | 2,3 |
| Folded length (m) | 4,4 |
| Certifications | EN 795 |
Compare with similar models
Technical data declared by the manufacturers. An empty cell means the figure is not declared.
| Feature |
This model
Anchor EXOSPHERE Hydraulic, Stable Ground (Foldable), Irudek
|
Anchor EXOSPHERE Hydraulic Off-road (Foldable), Irudek
|
Anchor EXOSPHERE Hydraulic, Stable Ground, Irudek
|
Anchor EXOSPHERE Electric 12V, Stable Ground (Foldable), Irudek
|
|---|---|---|---|---|
| Brand | Irudek | Irudek | Irudek | Irudek |
| Standard | EN 795 B | TS 16415 | EN 795 B | TS 16415 | EN 795 B | TS 16415 | EN 795 B | TS 16415 |
| Load capacity | 140 kg (per arm) | 140 kg (per arm) | 140 kg (per arm) | 140 kg (per arm) |
| Users | 2 (1 per arm) | 2 (1 per arm) | 2 (1 per arm) | 2 (1 per arm) |
| Reach | 1,8 m | 1,8 m | 1,8 m | 1,8 m |
| Arm angle | 360° swivel / lockable | 360° swivel / lockable | 360° swivel/lockable | 360° swivel/ lockable |
| Adjustable height | 4,7 - 12,1 m | 4,7 m - 12,1 m | 3,6-8,3 m | 4,8-12 m | 3,9 m - 8,4 m | 4,9 m - 12,3 m |
| Weight with cement | 4273 kg | 4750 kg | 2410 kg | 4045 kg | 4273 kg | 4318 kg |
| Folded height | 2,3 m | 2,2 m | — | — |
| View product → | View product → | View product → |
