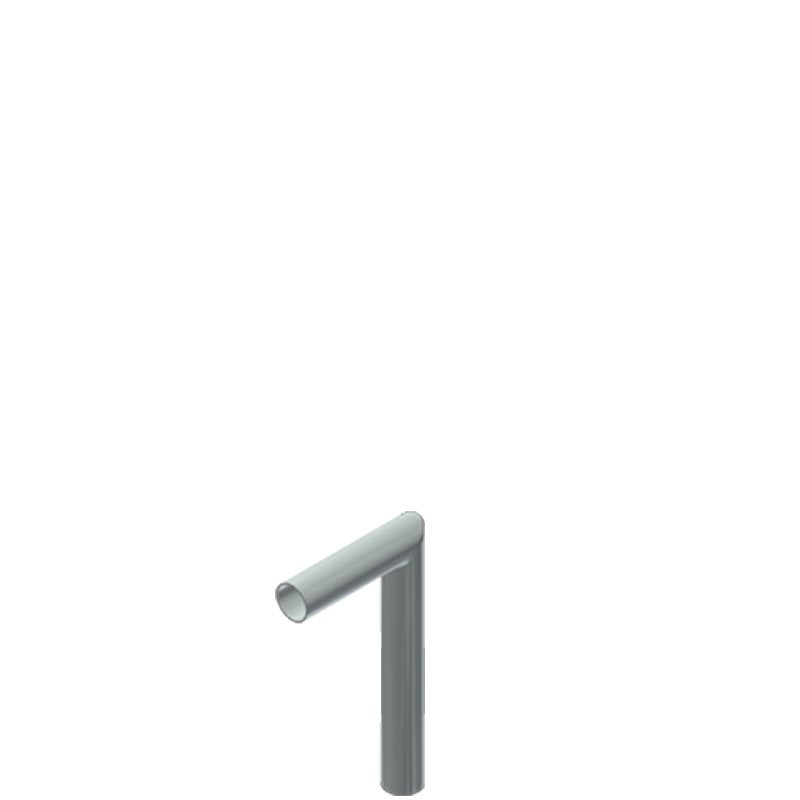

Anchor for Scaffolding, CSC Edilizia 121C

What it is

The scaffolding anchor CSC Edilizia 121C is a building element for tying scaffolding to the structures of the building. It has a length of 350 mm and a weight of 1.40 kg, features that make it compact and suitable for ties close to the wall. The galvanised finish ensures corrosion resistance and reliability even in exposed installations.

Fixed scaffolding accessories are couplers, eye-bolt wall ties, coupler covers and bucket holders that complete tube-and-fitting and frame scaffolds.

What it is for

Used for setting up the construction site, for work at height, where access and restraint must be ensured for the whole job and for erecting scaffolding.

How to use it

They are fitted by trained personnel in accordance with the PiMUS (scaffold assembly, use and dismantling plan) and the approved scaffold layout. Fix wall ties to the façade with anchors suited to the substrate and connect them to the scaffold at the spacing specified in the design; tighten couplers with a spanner to the torque stated by the manufacturer. Before each use, check that no coupler is loose and that the ties are intact.

Where it is used

• Commercial construction
• Residential construction

Technical data

• Application: Construction
• Length (mm): 350
• Weight (kg): 1,40
• Treatment: Galvanised

Who it is for

Designed for site managers, formwork carpenters, building contractors and construction workers.

Related products

• Anchor for Scaffolding, CSC Edilizia 121E
• Anchor for Scaffolding, CSC Edilizia 120W2
• Plastic base pad Mafi — from the category Galvanised Fixed Scaffolding
• Netting for work platforms Reti Brembo — from the category Scaffold Netting
• Universal Expansion Anchor PTB M8 x 75, DeWalt DFM1110100 — from the category Heavy-Duty Anchors
• Browse the whole category: Fixed Scaffolding Accessories

Before you order

In your request, please state the length and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
