Linear connector CSC Edilizia 321X
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- Holes (mm)Ø 6
- Weight (kg)0,80
What it is

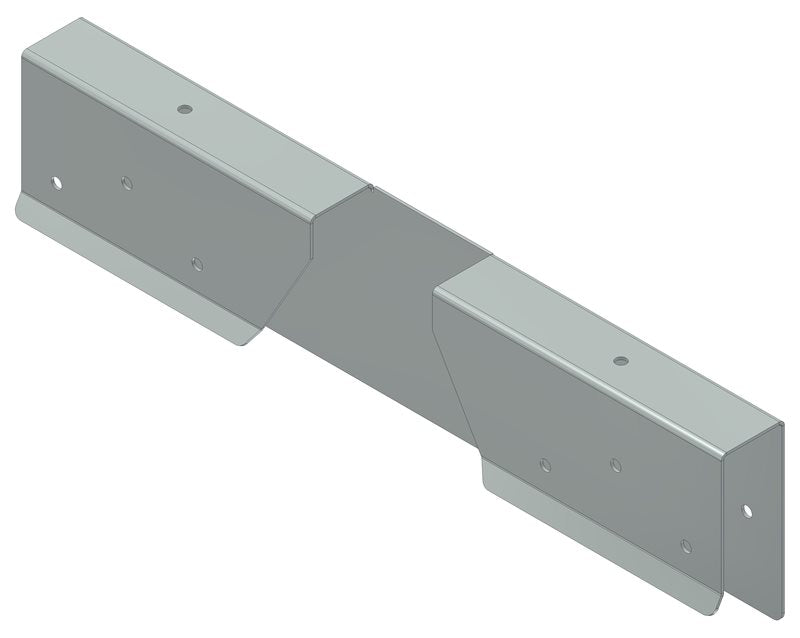

The 321X straight joint by CSC Edilizia is a connecting component for safety guardrails, designed to join the elements of the system in line. Made of S235JR (Fe 360 B) steel, a structural grade chosen for its strength and weldability, it is a lightweight element weighing 0.80 kg, fitted with Ø6 mm holes for quick coupling between modules. Machining complies with the general tolerances of UNI-ISO 2768.
Rods, extensions, bases, supports and joints are the components and accessories fitted to build or complete a temporary guardrail.
What it is for
Used for fall protection, as part of a fall arrest or work restraint system, for protecting edges and corners and for construction site safety.
How to use it
Choose components from the same system that are compatible with the guardrail installed. Fit them at the points indicated by the manufacturer, tightening screws and clamps well, with no openings left between the parts. Check tightness before every shift and after wind or bad weather.
Where it is used
- Residential construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Holes (mm): Ø 6
- Weight (kg): 0,80
Who it is for
Designed for site managers, formwork carpenters, construction workers and health and safety officers.
Related products
- Plastic linear connector CSC Edilizia 100-1
- Mobile toe board CSC Edilizia FP4040
- Scaffold netting green Master Green Verdelook — from the category Scaffold Netting
- Semi-planed spruce carpentry boards, 15cm, A.M.E.S. srl — from the category Timber
- Harness AS1, Irudek — from the category Fall Arrest Harnesses
- Browse the whole category: Temporary Galvanised Steel Guardrails
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 4
| Material | S235JR (Fe 360 B) |
|---|---|
| Regulations | UNI-ISO 2768 |
| Holes (mm) | Ø 6 |
| Weight (kg) | 0,80 |
