Pressure washer 6 Series 610, Annovi Reverberi

What it is

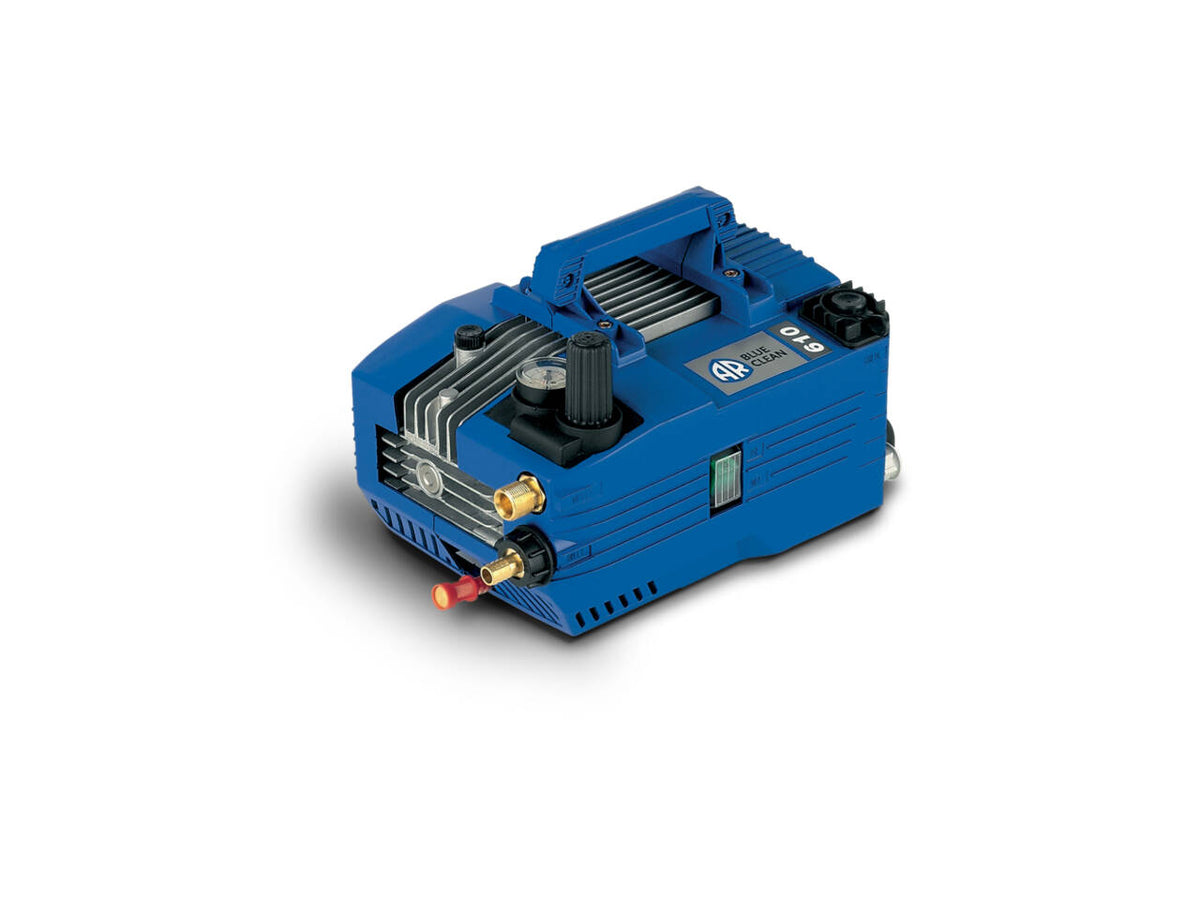

Cold water pressure washer Annovi Reverberi 6 Series 610 (code 12358), the lead model of the 6 series. The HPV pump has 3 stainless steel pistons with ceramic coating, a connecting rod-crank system and an aluminium head, with an automatic by-pass valve; the 2.2 kW single-phase induction motor has thermal protection. It delivers 130 bar and 500 l/h, accepts inlet water up to 60 °C and weighs 17.5 kg. A pressure regulator with pressure gauge and detergent suction are integrated.

What it is for

Used for pressure washing surfaces, vehicles and equipment, for high-pressure washing of heavily soiled surfaces, vehicles and machinery and for cleaning hard surfaces before treatment or at the end of the job.

How to use it

Connect the supply hose and the high-pressure hose, turn on the water and bleed the air by operating the gun before starting the motor. Choose the nozzle according to the dirt and work at a distance from the surface, never aiming the jet at people, animals, cables or, at close range, tyres. Never run it dry, and drain it in winter to prevent frost damage.

Where it is used

• Agriculture
• Building maintenance
• Facility services and cleaning

Technical data

• Max pressure (bar): 130
• Max flow rate, l/h: 500
• Rpm (rpm): 2800
• Voltage: 230
• Maximum inlet water temperature (°C): 60
• Weight (kg): 17,5
• Dimensions (L×P×H): 350 × 220 × 240
• Max flow rate (l/h): 500
• Absorbed power (kW): 2,2
• Rpm: 2800
• Power supply (V): 230
• Frequency: 50 Hz (1~)
• Maximum inlet water temperature: 60°C
• Packaging dimensions (mm): 530 × 280 × 340

Who it is for

Designed for building maintenance operatives, agricultural workers and industrial cleaners.
