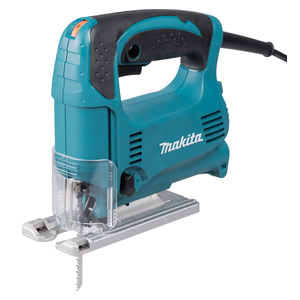

Jigsaw Makita 4329KX1
Key features
- Absorbed power (W)450
- Stroke length (mm)18
- Maximum left tilt0 - 45 º
- Maximum wood cutting capacity, 90° (mm)65
- Cable length (m)2,0
- Sound power LwA94 dB(A)
What it is
Jigsaw Makita 4329KX1. Key specifications: absorbed power (W) 450, stroke length (mm) 18, maximum left tilt 0 - 45 º.
A jigsaw is a power tool with a short reciprocating blade for straight and curved cuts in wood, metal, plastic and panels; this category includes dedicated accessories.
What it is for
Used for cutting solid wood, panels and battens, on the bench or on site, for cutting everyday site materials and for cutting metal sections, sheet and tube.
How to use it
Insert the blade suited to the material into the holder, set the pendulum action (high for fast cuts in wood, zero for metal and clean cuts) and clamp the workpiece. Rest the base plate on the workpiece, start the saw and follow the line without forcing, making sure the blade can protrude freely below the workpiece. Wear safety glasses and change the blade when it cuts crooked or burns the wood.
Where it is used
- Residential construction
- Renovation
Technical data
- Absorbed power (W): 450
- Stroke length (mm): 18
- Maximum left tilt: 0 - 45 º
- Maximum wood cutting capacity, 90° (mm): 65
- Cable length (m): 2,0
- Sound power LwA: 94 dB(A)
- Sound pressure LpA (dB(A)): 86
- Sound pressure uncertainty K (dB(A)): 3
- Vibration level, sheet metal cutting (m/s²): 5,0
- Maximum steel cutting capacity at 90° (mm): 6
- Weight without cable (kg): 1,9
- Dimensions (mm): 223 × 77 × 197
- Max power output (W): 420
- Blows per minute (bpm): 500 - 3100
Who it is for
Designed for formwork carpenters, joiners and furniture makers.
Related products
- Jigsaw Makita 4350FCTJ
- Jigsaw Makita 4327
- Jigsaw Blade, 75x0.9mm, Makita A-85737 — from the category Jigsaw Blades for Wood
- Metal spring clamp (9-83-080) Stanley — from the category Locking Pliers and Quick-Release Clamps
- Li-ion battery charger 36V Makita 194863-5 — from the category Power Tool Batteries and Chargers
- Browse the whole category: Jigsaws
Before you order
In your request, please state the length, the power rating and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 19
| Absorbed power (W) | 450 |
|---|---|
| Stroke length (mm) | 18 |
| Maximum left tilt | 0 - 45 º |
| Maximum wood cutting capacity, 90° (mm) | 65 |
| Cable length (m) | 2,0 |
| Sound power LwA | 94 dB(A) |
| Sound pressure LpA (dB(A)) | 86 |
| Sound pressure uncertainty K (dB(A)) | 3 |
| Vibration level, sheet metal cutting (m/s²) | 5,0 |
| Maximum steel cutting capacity at 90° (mm) | 6 |
| Weight without cable (kg) | 1,9 |
| Dimensions (mm) | 223 × 77 × 197 |
| Max power output (W) | 420 |
| Blows per minute (bpm) | 500 - 3100 |
| Maximum right tilt | 0 - 45 º |
| Vibration uncertainty, factor K, sheet metal cutting (m/s²) | 1,5 |
| Vibration level, panel cutting (m/s²) | 7,0 |
| Vibration uncertainty, factor K, panel cutting (m/s²) | 1,5 |
| Vacuum cleaner connection, in/out | 25 / - mm |
Technical documents
Manufacturer documents (PDF, opens in a new tab).
Compare with similar models
Technical data declared by the manufacturers. An empty cell means the figure is not declared.
| Feature |
This model
Jigsaw Makita 4329KX1
|
Jigsaw FSPE 110 X Milwaukee
|
Jigsaw JSPE 135 Milwaukee
|
Jigsaw Makita 4350FCTJ
|
|---|---|---|---|---|
| Brand | Makita | Milwaukee | Milwaukee | Makita |
| Absorbed power | 450 W | 710 | 750 | 720 W |
| Stroke length | 18 mm | — | — | 26 mm |
| Maximum wood cutting capacity, 90° | 65 mm | — | — | 135 mm |
| Cable length | 2,0 m | — | — | 2,5 m |
| Sound power LwA | 94 dB(A) | 98 | 99 | 95 dB(A) |
| Sound pressure LpA (dB(A)) | 86 dB(A | 87 | 88 | 87 dB(A |
| Sound pressure uncertainty K (dB(A)) | 3 dB(A | 3 | 3 | 3 dB(A |
| Vibration level, sheet metal cutting | 5,0 m/s² | — | — | 4,5 m/s² |
