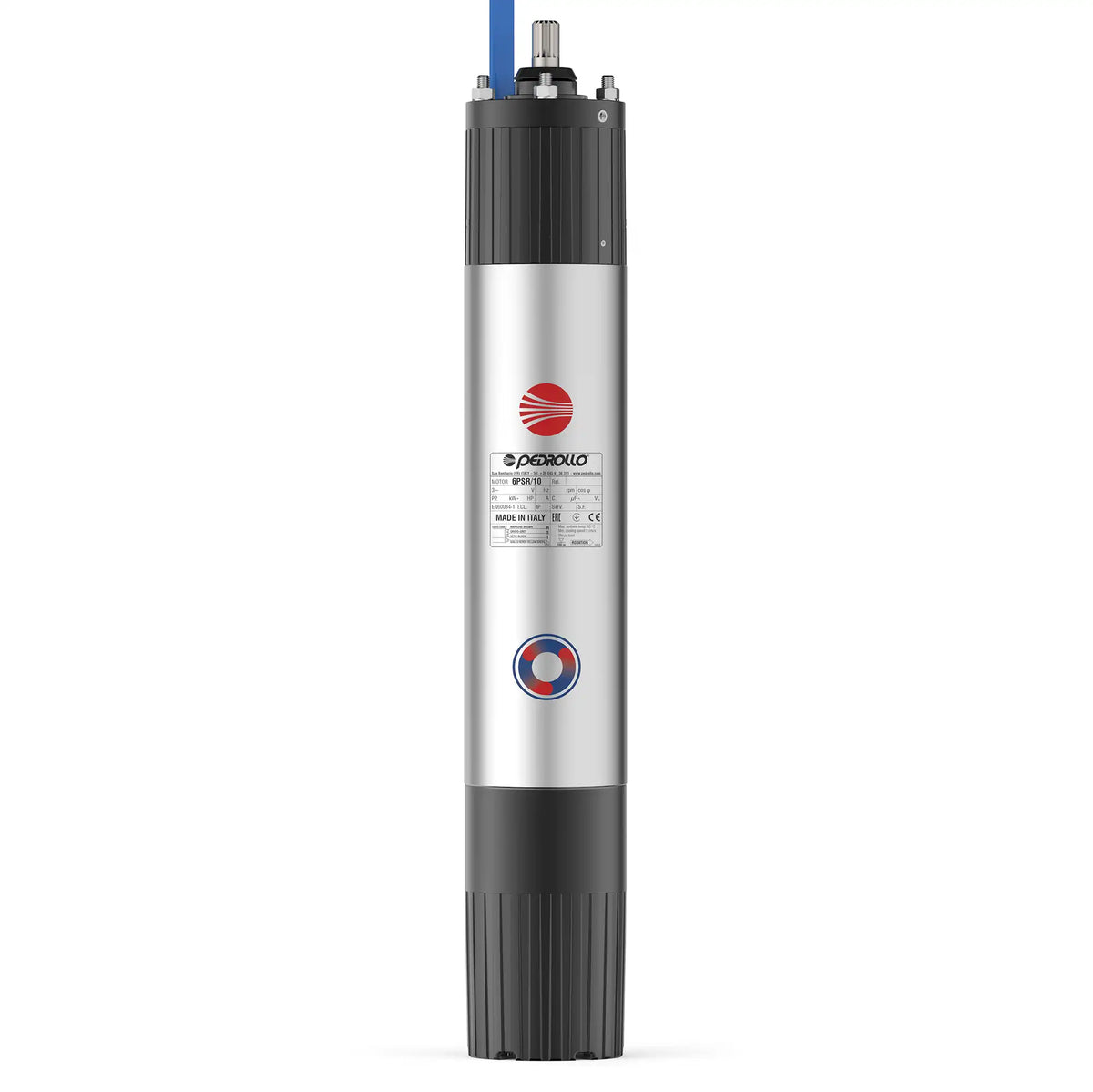

Submersible motor 6PSR Pedrollo
Key features
- ProtectionIP68
- BaseCast iron G25
- Powerda 5,5 a 37 kW
- Liquid temperatureup to +30 °C
- Maximum operating depth (m)150
- Insulation classF
What it is
Submersible motor 6PSR Pedrollo. Key specifications: protection IP68, base Cast iron G25, power da 5,5 a 37 kW.
The submersible motor is a watertight electric motor designed to run submerged in water, coupled to the pump end to form a borehole electric pump.
What it is for
Used in the installation and maintenance of plumbing systems, in irrigation systems, from the water supply point to the emitter and for pumping water out of excavations, tanks and sumps.
How to use it
Couple it to the pump end, checking that the power and connection match. Lower it into the well suspended from a safety rope, always staying below the water level and clear of the bottom, and splice the cable watertight. The electrical connection to the protected control panel must be made by an electrician, and the motor must never be run dry.
Where it is used
- Agriculture
- Building services
- Water engineering works
Technical data
- Protection: IP68
- Base: Cast iron G25
- Power: da 5,5 a 37 kW
- Liquid temperature: up to +30 °C
- Maximum operating depth (m): 150
- Insulation class: F
- Motor: 2-pole
- Outer casing: Stainless steel AISI 304
- Motor and base supports: Cast iron G25
- Drive shaft: Stainless steel AISI 431
Who it is for
Designed for plumbers and heating and plumbing engineers.
Related products
- Submersible motor 6PD Pedrollo
- Submersible motor 4PS Pedrollo
- Multi-Power Unit Compact Breaker — from the category Hydraulic Power Packs and Units
- Electronic protection for electric pumps EP Pedrollo — from the category Distribution Boards and Protection Devices
- CEE socket 32A 3P+E IP44 FR-P432 Friggeri — from the category Site Electrical Equipment: Plugs, Sockets, Cables and Extension Leads
- Browse the whole category: Electric Motors, Industrial Gear Motors, Converters and Inverters
Before you order
In your request, please state the power rating and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 11
| Item code | 6PSR |
|---|---|
| Protection | IP68 |
| Base | Cast iron G25 |
| Power | da 5,5 a 37 kW |
| Liquid temperature | up to +30 °C |
| Maximum operating depth (m) | 150 |
| Insulation class | F |
| Motor | 2-pole |
| Outer casing | Stainless steel AISI 304 |
| Motor and base supports | Cast iron G25 |
| Drive shaft | Stainless steel AISI 431 |
