Pressurisation unit with inverter TISSEL 100 Pedrollo
Key features
- CapacityUp to 160 l/min (9.6 m³/h)
- Head (m)up to 62
- Gauge suction height (m)up to 8
- Liquid temperatureFrom 0 °C to +55 °C
- Ambient temperatureFrom -10 °C to +40 °C
- Max pressure in the pump body6 bar for 3-4CP – 7 bar for 5CR – 10 bar for 2CP
What it is

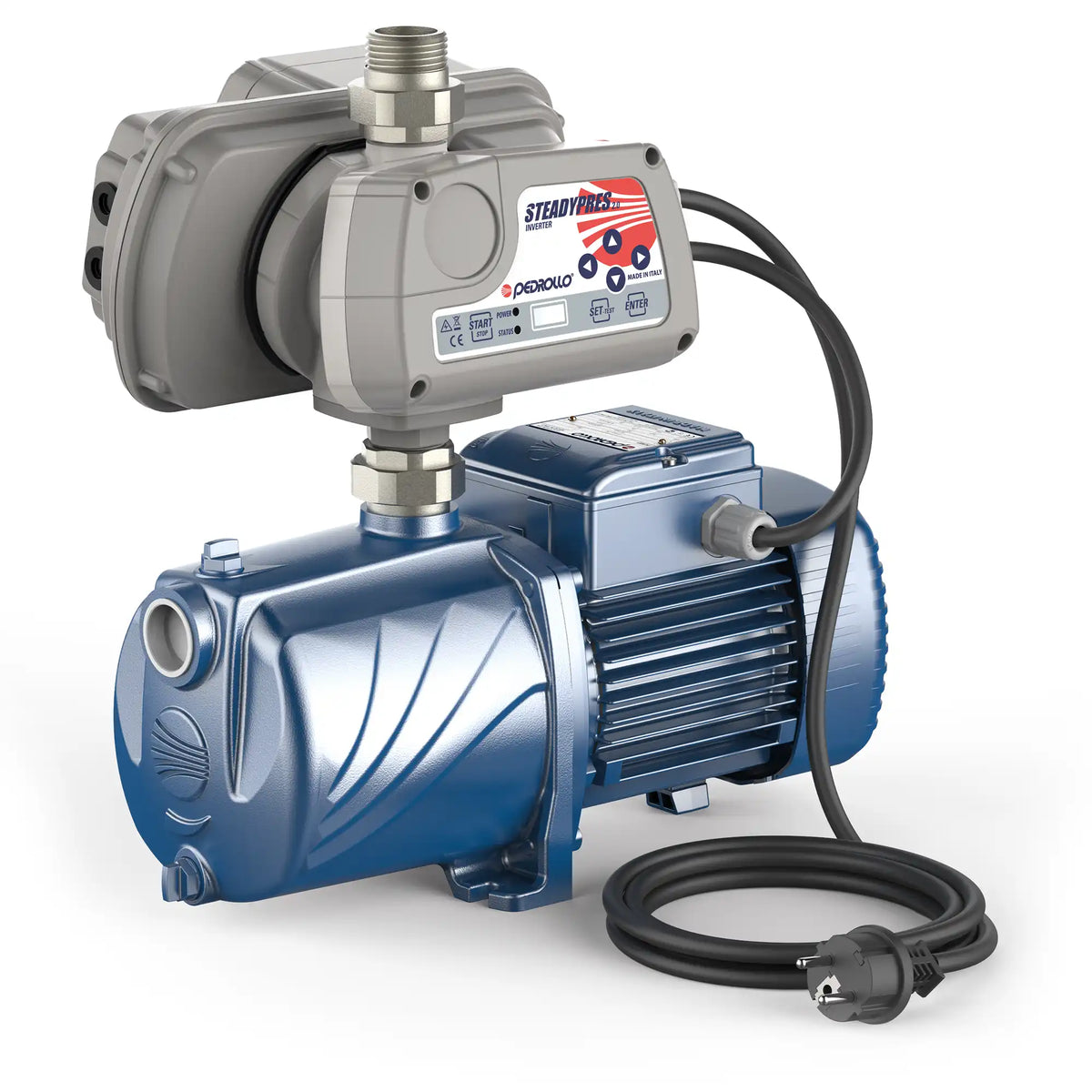

TISSEL 100 (code TISSEL) is a Pedrollo electric pump — automatic pressurisation system with inverter, with a flow rate of up to 160 l/min (9.6 m³/h), head of up to 62 m, manometric suction height of up to 8 m. Professional product, reliable for intensive use.
A booster set is a system with one or more pumps, often with a tank or electronic regulation, that keeps the water pressure constant to supply a home, irrigation or a building site.
What it is for
Used in the installation and maintenance of plumbing systems, in irrigation systems, from the water supply point to the emitter and for pumping water out of excavations, tanks and sumps.
How to use it
Install it in a dry, ventilated room, close to the well or tank, and connect it with pipes of suitable diameter and a non-return valve. Before starting it, fill the pump with water; the pressure is set as indicated in the manual. The electrical system must have a residual current device and, in winter, the set is drained or protected from frost.
Where it is used
- Agriculture
- Building services
- Water engineering works
Technical data
- Capacity: Up to 160 l/min (9.6 m³/h)
- Head (m): up to 62
- Gauge suction height (m): up to 8
- Liquid temperature: From 0 °C to +55 °C
- Ambient temperature: From -10 °C to +40 °C
- Max pressure in the pump body: 6 bar for 3-4CP – 7 bar for 5CR – 10 bar for 2CP
- Motor: 2-pole
- IP protection rating: IPX4
Who it is for
Designed for plumbers, agricultural workers and heating and plumbing engineers.
Related products
- Automatic pressurisation unit with inverter DG-BLU Pedrollo
- Fixed-speed pressurisation unit CB2 Pedrollo
- PrimoFlex Premium flexible hose 5/8" – 50m Kärcher — from the category Water Hoses and Layflat Hoses
- Galvanised steel extensions — from the category Galvanised Pipe Fittings
- Container for horizontal drum storage Sall — from the category Tanks, Cisterns and Drums for Liquid Storage
- Browse the whole category: Clean Water Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 8
| Capacity | Up to 160 l/min (9.6 m³/h) |
|---|---|
| Head (m) | up to 62 |
| Gauge suction height (m) | up to 8 |
| Liquid temperature | From 0 °C to +55 °C |
| Ambient temperature | From -10 °C to +40 °C |
| Max pressure in the pump body | 6 bar for 3-4CP – 7 bar for 5CR – 10 bar for 2CP |
| Motor | 2-pole |
| IP protection rating | IPX4 |
