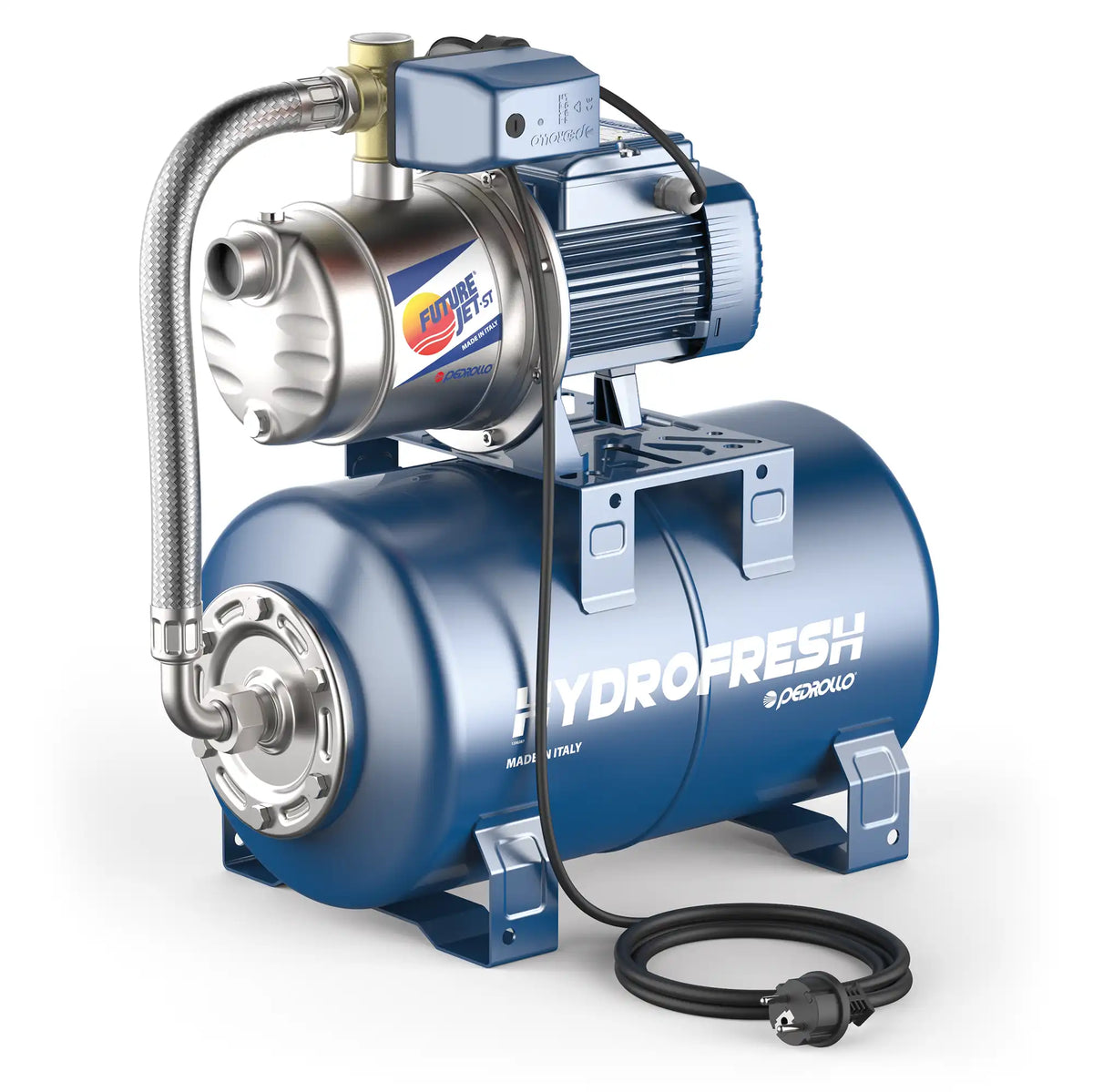

Pressure booster set with electric pump and tank HYDROFRESH Pedrollo
Key features
- CapacityUp to 120 l/min (7.2 m³/h)
- HeadUp to 55 m
- Gauge suction heightUp to 9 m
- Liquid temperatureFrom -10 °C to +40 °C
- Ambient temperatureUp to +40 °C
- Max pressure in the pump body6 bar for FUTURE JET 1 – 7 bar for FUTURE JET 2
What it is
Pressure booster set with electric pump and tank HYDROFRESH Pedrollo. Key specifications: capacity Up to 120 l/min (7.2 m³/h), head Up to 55 m, gauge suction height Up to 9 m.
A booster set is a system with one or more pumps, often with a tank or electronic regulation, that keeps the water pressure constant to supply a home, irrigation or a building site.
What it is for
Used in the installation and maintenance of plumbing systems, in irrigation systems, from the water supply point to the emitter and for pumping water out of excavations, tanks and sumps.
How to use it
Install it in a dry, ventilated room, close to the well or tank, and connect it with pipes of suitable diameter and a non-return valve. Before starting it, fill the pump with water; the pressure is set as indicated in the manual. The electrical system must have a residual current device and, in winter, the set is drained or protected from frost.
Where it is used
- Agriculture
- Building services
- Water engineering works
Technical data
- Capacity: Up to 120 l/min (7.2 m³/h)
- Head: Up to 55 m
- Gauge suction height: Up to 9 m
- Liquid temperature: From -10 °C to +40 °C
- Ambient temperature: Up to +40 °C
- Max pressure in the pump body: 6 bar for FUTURE JET 1 – 7 bar for FUTURE JET 2
- Motor: 2-pole
- IP protection rating: IPX4
Who it is for
Designed for plumbers, agricultural workers and heating and plumbing engineers.
Related products
- Variable-speed pressure unit GPW Pedrollo
- Electric pump WR Pedrollo
- Flexible hose PrimoFlex 5/8" - 25 m Kärcher — from the category Water Hoses and Layflat Hoses
- FF hose fittings, flat seat, art. 330 — from the category Galvanised Pipe Fittings
- Container for waste oil Butti — from the category Tanks, Cisterns and Drums for Liquid Storage
- Browse the whole category: Clean Water Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 8
| Capacity | Up to 120 l/min (7.2 m³/h) |
|---|---|
| Head | Up to 55 m |
| Gauge suction height | Up to 9 m |
| Liquid temperature | From -10 °C to +40 °C |
| Ambient temperature | Up to +40 °C |
| Max pressure in the pump body | 6 bar for FUTURE JET 1 – 7 bar for FUTURE JET 2 |
| Motor | 2-pole |
| IP protection rating | IPX4 |
