90° front guardrail for timber CSC Edilizia 112 HZ
Key features
- MaterialFe 360 B
- TreatmentGalvanising
- Vice opening (mm)80 - 210
- Weight (kg)10
- RegulationsEN 13374
What it is

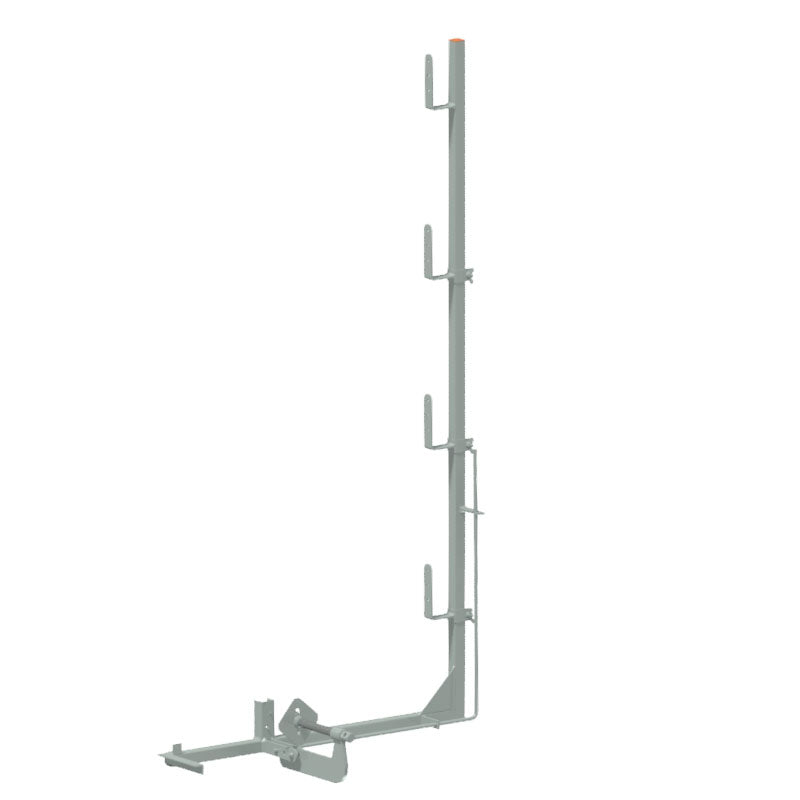

The 90° front guardrail for timber CSC Edilizia 112 HZ is an edge protection device made of Fe 360 B steel with a galvanised finish. Designed for fixing to timber elements, it has a clamp with an adjustable opening from 80 to 210 mm and weighs 10 kg. It complies with the EN 13374 standard on temporary edge protection systems.
A temporary guardrail is a temporary galvanised steel fall protection system, with posts, clamps or hooks and boards, fitted to the edges of slabs, roofs and excavations during works.
What it is for
Used for fall protection, as part of a fall arrest or work restraint system, for protecting edges and corners and for construction site safety.
How to use it
Choose the attachment according to the edge: clamp on a slab or beam, under-tile hook on a roof, freestanding base on a flat surface. Fit the posts at the spacings specified by the manufacturer and insert the rails and toe board without leaving openings. Check tightness before each shift and after wind or bad weather.
Where it is used
- Residential construction
- Workplace safety and PPE
Technical data
- Material: Fe 360 B
- Treatment: Galvanising
- Vice opening (mm): 80 - 210
- Weight (kg): 10
- Regulations: EN 13374
Who it is for
Designed for site managers, formwork carpenters, construction workers and health and safety officers.
Related products
- Front guardrail for timber CSC Edilizia
- Guardrail with under-tile hook CSC Edilizia 118
- Netting for road bridge soffits Reti Brembo — from the category Scaffold Netting
- Fir batten for trellis 10x30 mm A.M.E.S. srl — from the category Timber
- Harness Expert 2 DE, Irudek — from the category Fall Arrest Harnesses
- Browse the whole category: Temporary Galvanised Steel Guardrails
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
