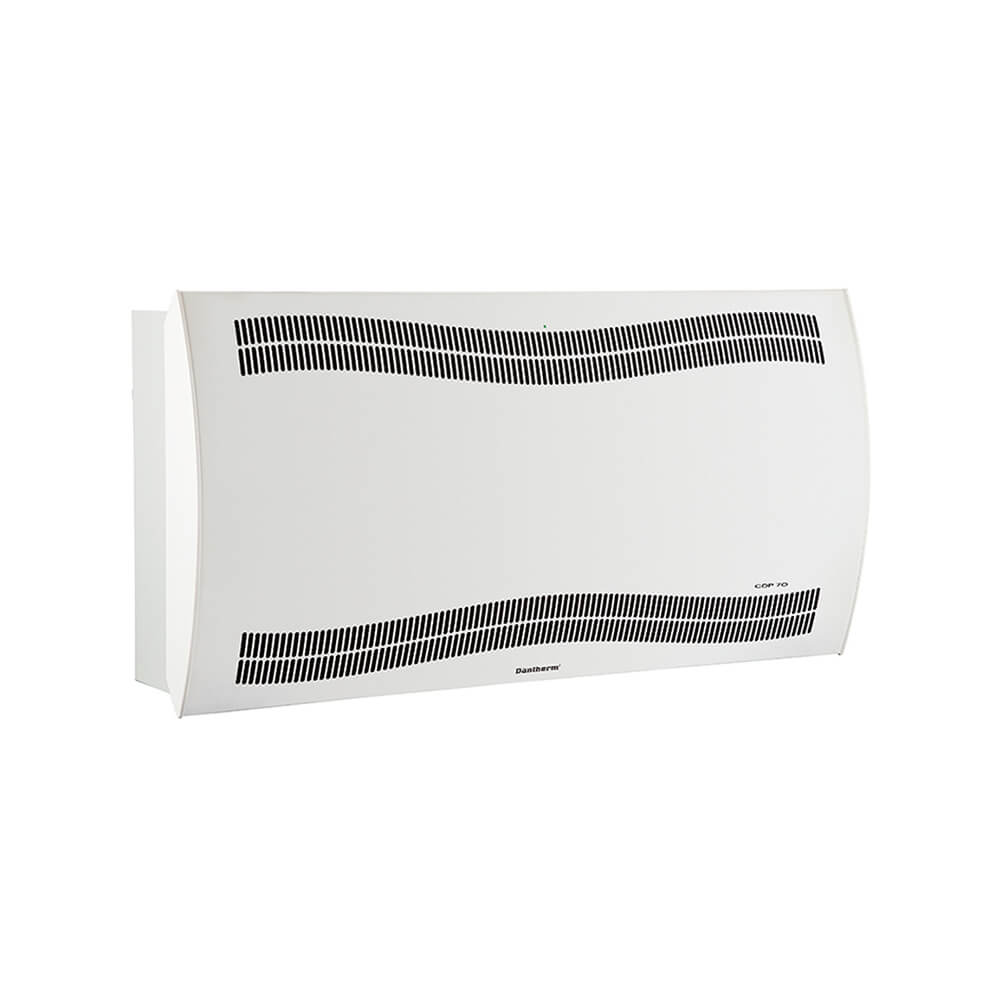

Deumidificatore Dantherm CDP 70
All Dantherm Group products

Dehumidifier Dantherm CDP 70

Code dantherm-cdp-70

Key features

  • Working temperature range10–36 °C
  • Dehumidifying capacity at 30 °C/60% RH73,9 l/24h
  • Dehumidifying capacity at 20 °C/60% RH43,2 l/24h
  • Specific energy consumption at 30°C/60°C0.45 kWh/l
  • Specific energy consumption at 20°C/60°C0.59 kWh/l
  • Air flow rate (m³/h)840
See all 15 specifications

What it is

Dehumidifier Dantherm CDP 70. Key specifications: working temperature range 10–36 °C, dehumidifying capacity at 30 °C/60% RH 73,9 l/24h, dehumidifying capacity at 20 °C/60% RH 43,2 l/24h.

Dehumidifiers and heat pumps are units that extract moisture from the air to dry rooms, building sites and indoor swimming pools, or heat pool water.

What it is for

Used for air conditioning indoor spaces, for dehumidifying rooms and structures and for dehumidifying indoor spaces.

How to use it

Stand the unit level, away from walls to allow air to circulate, and close the doors and windows of the room being treated. Set the desired humidity level or temperature and drain the condensate into the tank or through a hose to a drain. Clean the air filter regularly; install and connect fixed units and heat pumps as described in the manual.

Where it is used

  • Building services
  • Building maintenance
  • Renovation

Technical data

  • Working temperature range: 10–36 °C
  • Dehumidifying capacity at 30 °C/60% RH: 73,9 l/24h
  • Dehumidifying capacity at 20 °C/60% RH: 43,2 l/24h
  • Specific energy consumption at 30°C/60°C: 0.45 kWh/l
  • Specific energy consumption at 20°C/60°C: 0.59 kWh/l
  • Air flow rate (m³/h): 840
  • Weight of R454C gas, CO2 equivalent: 1,2/0,18 kg/t
  • Max current (A): 7,7
  • Energy consumption at 30°C/60°C (kW): 1,4
  • Energy consumption at 20°C/60°C (kW): 1,1
  • Max energy consumption with electric heater (kW): 6,7
  • Heat recovered at 30 °C/60% RH (kW): 3,5
  • Heat recovered at 20 °C/60% RH (kW): 2,3
  • Filter type: PPI 15

Who it is for

Designed for industrial maintenance technicians and HVAC technicians.

Technical specifications

Specification Value
Operating range - temperature °C
Operating range - humidity % RH
Dehumidification capacity at 30 °C/60% l/24h
Dehumidification capacity at 20 °C/60% l/24h
Specific energy consumption at 30 °C/60% kWh/l
Specific energy consumption at 20 °C/60% kWh/l
Air flow rate m³/h
Noise level at 1 m dB(A)
R454C gas weight / CO₂ equivalent kg/t
Power supply V/Hz
Current, max. A
Power consumption, max. kW
Power consumption at 30 °C/60% kW
Power consumption at 20 °C/60% kW
Power consumption, max., with electric heater kW
Product dimensions (W x D x H) mm
Weight kg

Related products

Before you order

In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.

Quantity
Specifications 15
Working temperature range10–36 °C
Dehumidifying capacity at 30 °C/60% RH73,9 l/24h
Dehumidifying capacity at 20 °C/60% RH43,2 l/24h
Specific energy consumption at 30°C/60°C0.45 kWh/l
Specific energy consumption at 20°C/60°C0.59 kWh/l
Air flow rate (m³/h)840
Weight of R454C gas, CO2 equivalent1,2/0,18 kg/t
Max current (A)7,7
Energy consumption at 30°C/60°C (kW)1,4
Energy consumption at 20°C/60°C (kW)1,1
Max energy consumption with electric heater (kW)6,7
Heat recovered at 30 °C/60% RH (kW)3,5
Heat recovered at 20 °C/60% RH (kW)2,3
Filter typePPI 15
Protection classIPX4
