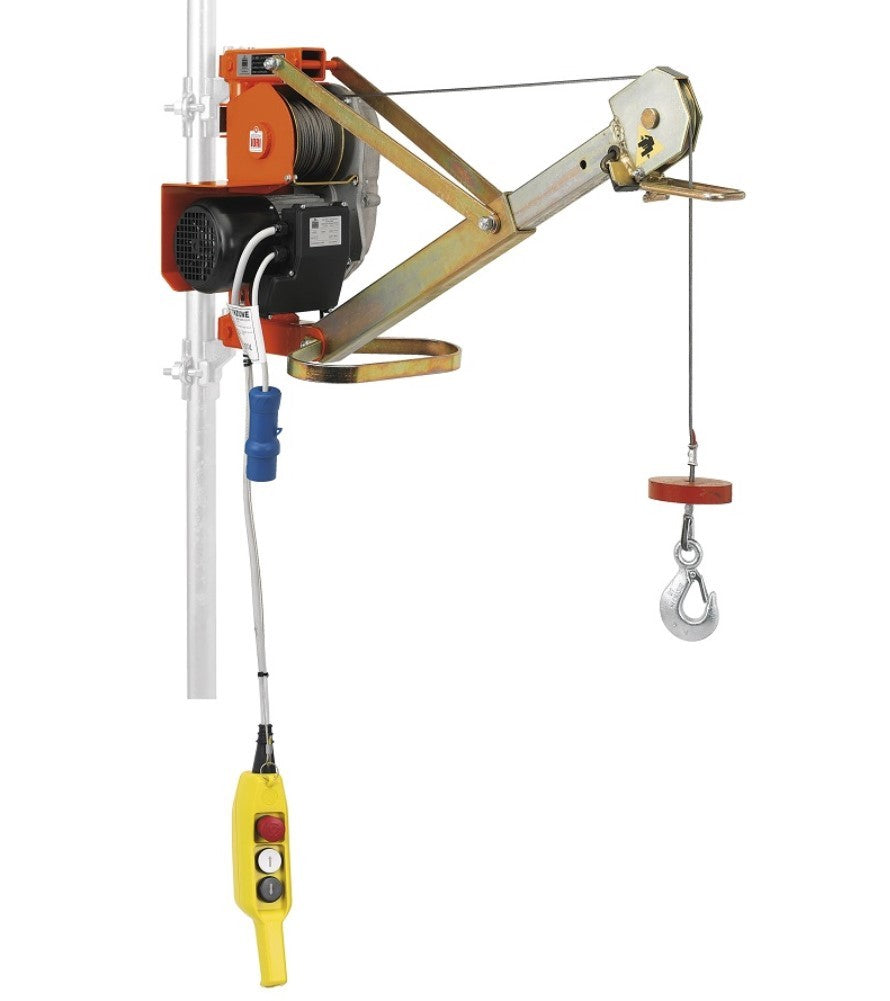

Jib hoist DM 200 Condor Iori Officine
Key features
- Rated capacity (kg)200
- Winch mass (kg)41
- Lifting speedM/min 21
- Engine powerKW 0,75
- Current intensityA 6
- VoltageV 230
What it is
Jib hoist DM 200 Condor Iori Officine. Key specifications: rated capacity (kg) 200, winch mass (kg) 41, lifting speed M/min 21.
Swing-arm hoists and electric hoists are motorised winches on a slewing arm, with bucket holders and other accessories, for lifting materials on site or in the workshop.
What it is for
Used for lifting loads, with accessories rated for the weight involved.
How to use it
Fix them to the scaffold, column or designated support, checking anchors and stability before loading. Attach the load with a hook fitted with a safety latch or in the bucket holder, without exceeding the rated capacity, and lift it from the pendant control with the area below kept clear. Periodically check the rope or chain, hook, brake and limit switches.
Where it is used
- Residential construction
- Renovation
Technical data
- Rated capacity (kg): 200
- Winch mass (kg): 41
- Lifting speed: M/min 21
- Engine power: KW 0,75
- Current intensity: A 6
- Voltage: V 230
- Frequency: Hz 50
- Shaft rotation speed: 1400 rpm
- Reduction ratio: 1:25,9
- Anti twist rope (mm): 4
- Breaking load: KN 11
- Rope length (m): 18
- Maximum rope length (m): 18
- Length: 900
Who it is for
Designed for crane operators, bricklayers and construction workers.
Related products
- Jib hoist DM 200AP / DM 200AP Velox Iori Officine
- Jib hoist DM 150I Velox / DM 200I Velox Iori Officine
- Storage container for frames Mafi — from the category Galvanised Fixed Scaffolding
- Rubber tubs Rubtub for tiles Rubi — from the category Buckets, Tubs and Mortar Buckets
- Laying hook for drainage channels SHS Probst — from the category Lifting and Towing Hooks
- Browse the whole category: Electric Hoists and Jib Hoists with Accessories
Before you order
In your request, please state the length, the supply voltage, the power rating and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 18
| Rated capacity (kg) | 200 |
|---|---|
| Winch mass (kg) | 41 |
| Lifting speed | M/min 21 |
| Engine power | KW 0,75 |
| Current intensity | A 6 |
| Voltage | V 230 |
| Frequency | Hz 50 |
| Shaft rotation speed | 1400 rpm |
| Reduction ratio | 1:25,9 |
| Anti-twist rope (mm) | 4 |
| Breaking load | KN 11 |
| Rope length (m) | 18 |
| Maximum rope length (m) | 18 |
| Length | 900 |
| Width | 350 |
| Height | 420 |
| Electric motor | Single-phase |
| Dimensions (L×P×H mm) | 900 × 350 × 420 |
