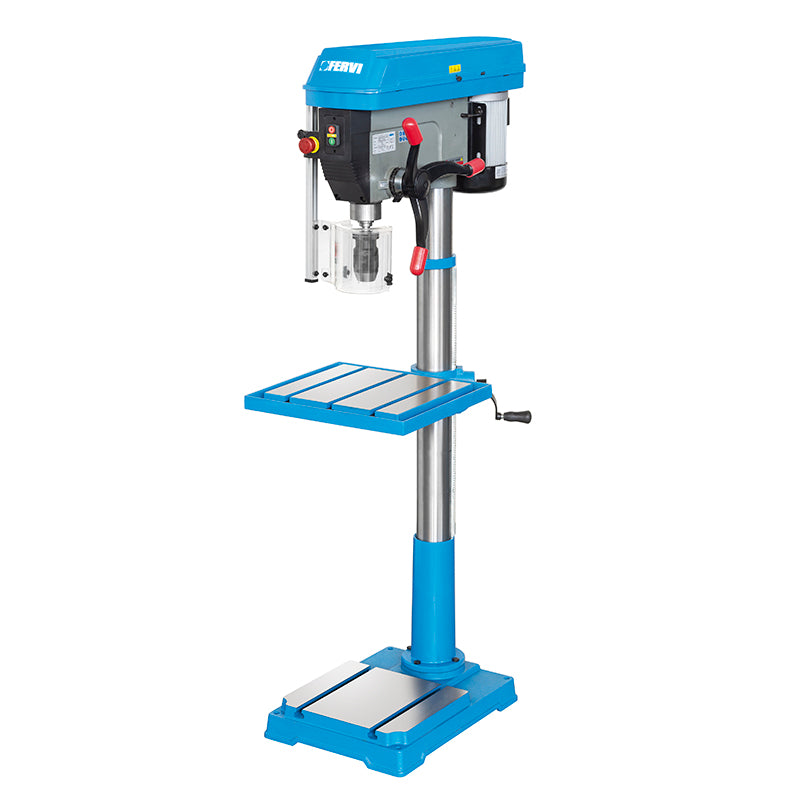

Belt-driven pillar drill Fervi 0754/400V

What it is

The Fervi 0754/400V pillar drill is a workshop machine designed for precision drilling of metal materials, with a continuous drilling capacity of Ø 20 mm that rises to Ø 28 mm on S235JR steel with a pilot hole and to Ø 32 mm on cast iron. The belt drive provides twelve spindle speeds from 150 to 2450 rpm, while the MT 4 Morse taper and the 5-20 mm B22 chuck accommodate bits and tools of different diameters. The spindle stroke is 120 mm and the 400 V 50 Hz three-phase motor delivers 1.5 kW.

A pillar drill is a stationary drilling machine on a column or magnetic base for accurate, perpendicular holes; this category also includes chucks and drill vices.

What it is for

Used for drilling steel, stainless steel and aluminium, on a pillar drill or with a hand-held drill and in workshop machining of steel, aluminium and alloy parts.

How to use it

Clamp the workpiece in the vice, or fix the magnetic base to clean steel; never hold the workpiece by hand. Fit the bit in the chuck and tighten it firmly, set the speed according to diameter and material and drill with a steady feed, using coolant on metals. Wear safety glasses, no gloves near the chuck, and keep sleeves and hair tied back.

Where it is used

• Mechanical engineering industry
• Mechanical workshops

Technical data

• Cast iron drilling capacity with pilot hole (mm): Ø 32
• Maximum drilling capacity in steel with pilot hole, S235JR (mm): Ø 28
• Continuous drilling capacity (mm): Ø 20
• Morse taper: CM 4
• Chuck: 5 - 20 mm B22
• Spindle speed: (12) 150 – 2450 rpm
• Spindle travel (mm): 120
• Collar (mm): Ø 62
• Column (mm): Ø 92
• Height (mm): 1710
• Column to spindle distance (mm): 260
• Table dimensions (mm): 460 × 425
• Groove (mm): 14
• Table tilt: ± 45°

Who it is for

Designed for industrial maintenance technicians and mechanics.
