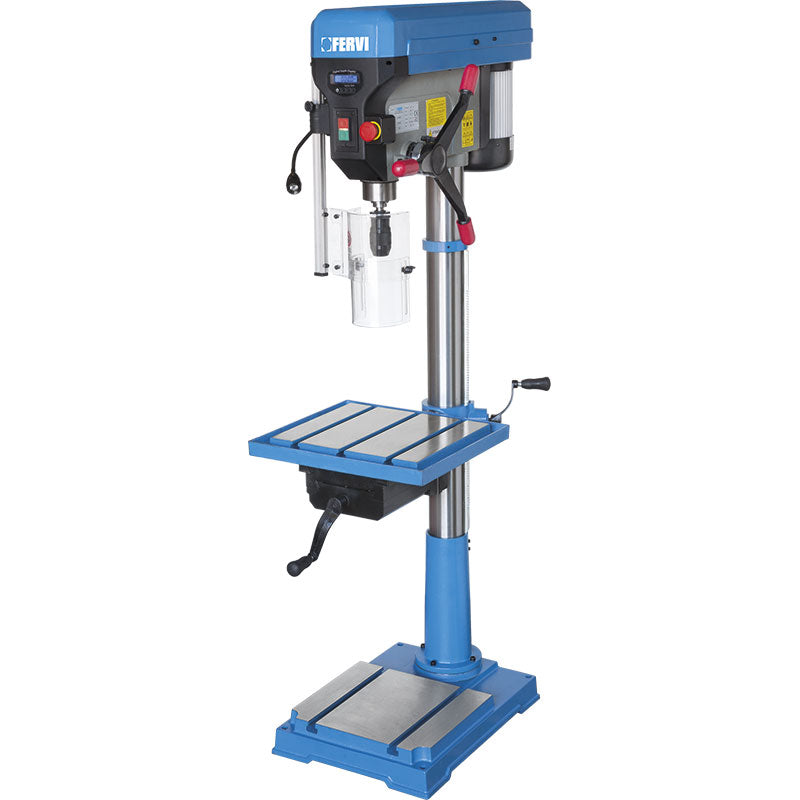

Belt-driven pillar drill Fervi 0252/230V

What it is

The Fervi 0252/230V belt-drive pillar drill is a sturdy workshop machine for drilling metals, with a continuous drilling capacity of up to Ø 20 mm and, with a pilot hole, up to Ø 28 mm on S235JR steel and Ø 32 mm on cast iron. The MT 4 Morse taper and the 1 to 16 mm B18 chuck accept bits of different sizes, while the 12 spindle speeds from 150 to 2450 rpm allow the work to be matched to the material. The spindle stroke is 120 mm and the machine comes with a 210 x 165 mm vice.

A pillar drill is a stationary drilling machine on a column or magnetic base for accurate, perpendicular holes; this category also includes chucks and drill vices.

What it is for

Used for drilling steel, stainless steel and aluminium, on a pillar drill or with a hand-held drill and in workshop machining of steel, aluminium and alloy parts.

How to use it

Clamp the workpiece in the vice, or fix the magnetic base to clean steel; never hold the workpiece by hand. Fit the bit in the chuck and tighten it firmly, set the speed according to diameter and material and drill with a steady feed, using coolant on metals. Wear safety glasses, no gloves near the chuck, and keep sleeves and hair tied back.

Where it is used

• Mechanical engineering industry
• Mechanical workshops

Technical data

• Cast iron drilling capacity with pilot hole (mm): Ø 32
• Maximum drilling capacity in steel with pilot hole, S235JR (mm): Ø 28
• Continuous drilling capacity (mm): Ø 20
• Morse taper: CM 4
• Chuck: 1 - 16 mm B18
• Spindle speed: (12) 150 – 2450 rpm
• Spindle travel (mm): 120
• Collar (mm): Ø 62
• Column (mm): Ø 92
• Height (mm): 1720
• Spindle to column distance (mm): 255
• Distance between machine nose and table (mm): 700
• Table dimensions (mm): 460 × 425
• Distance between machine nose and base (mm): 1220

Who it is for

Designed for industrial maintenance technicians and mechanics.
