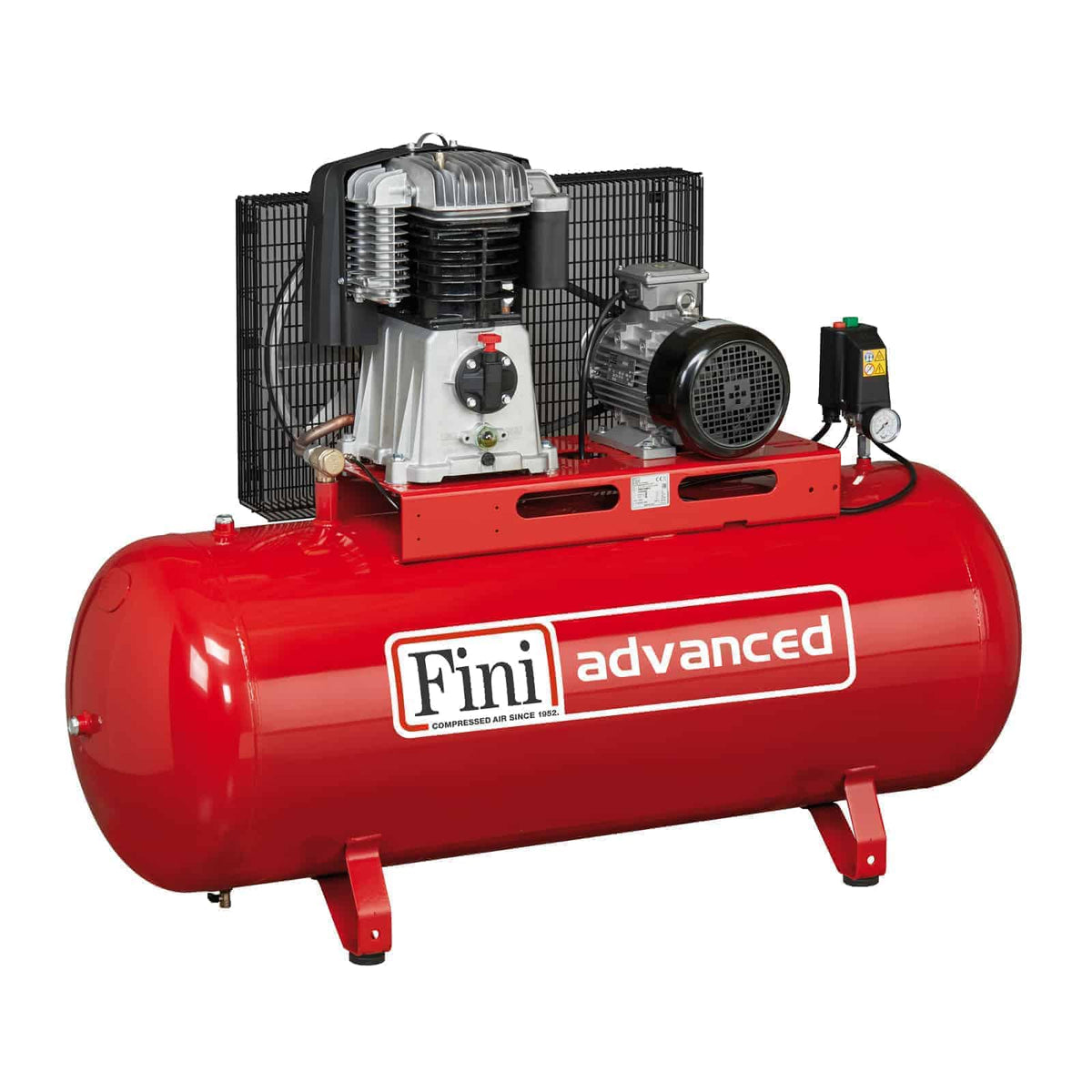

High-pressure two-stage belt-driven compressor 270 L BK119-270-7,5-A.P. Fini Compressori

What it is

Piston compressor Fini Compressori BK119-270-7,5-A.P., high-pressure version: it reaches 14 bar compared with the 10 bar of the standard BK119-270-7,5. It has a 7.5 HP motor, a 270-litre wheel-mounted tank and a BK119 pump unit, which in the Fini range is oil-lubricated, with belt drive and two-stage compression. The standards listed are the PED Directive 2014/68/EU, the Machinery Directive 2006/42/EC and ISO 1217.

What it is for

Used to supply air tools, from the compressor to the point of use and in compressed air systems, from generation in the compressor room to distribution on the shop floor.

How to use it

Install it on a level floor in a ventilated room, with the belt enclosed by its guard, and connect it to a suitable power supply, often three-phase. Check the oil on lubricated models, set the outlet pressure and distribute the air with hoses and fittings of suitable bore. Drain condensate daily and periodically check belt tension, filters and the safety valve.

Where it is used

• Vehicle body repair
• Industrial plant engineering
• Food industry
• Mechanical engineering industry
• Mechanical workshops

Technical data

• Regulations: PED 2014/68/EU, Machinery Directive 2006/42/EC, ISO 1217
• Power (HP): 7,5
• Tank capacity (L): 270
• Max pressure (bar): 14

Who it is for

Designed for vehicle body repairers, industrial maintenance technicians and mechanics.
