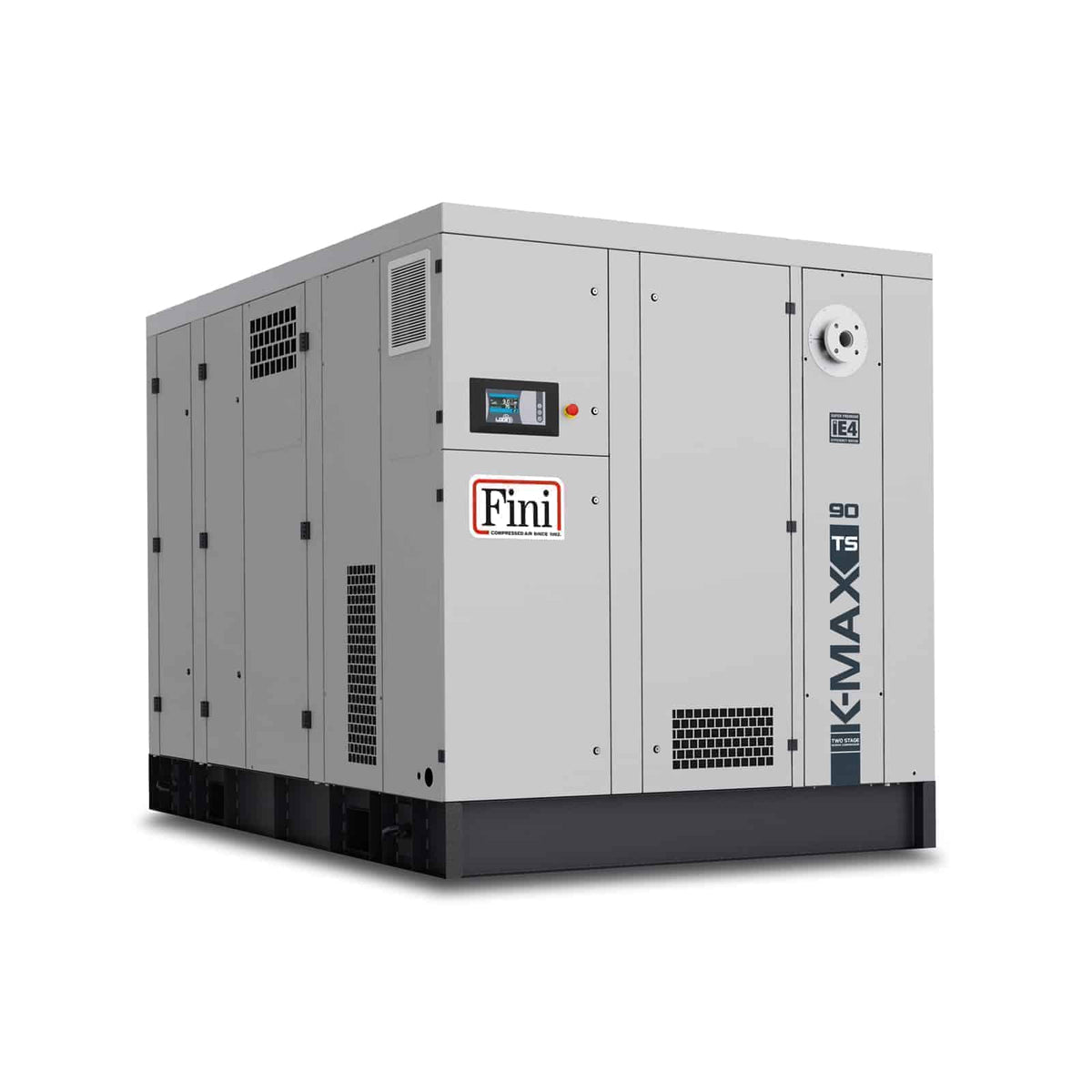

Two-stage screw compressor K-MAX TS 90-07 VS Fini Compressori
Also known as: two-stage rotary screw compressor
Key features
- RegulationsPED 2014/68/EU, Machinery Directive 2006/42/EC, ISO 1217
- Power (kW)90
- Max pressure (bar)7
- Air flow rate6303 - 19100 l/min. / 6.30 - 19.10 m3/min. / 223 - 675 c.f.m.
- LubricationWith oil
- No. of stages2
What it is
Two-stage screw compressor K-MAX TS 90-07 VS Fini Compressori. Key specifications: regulations PED 2014/68/EU, Machinery Directive 2006/42/EC, ISO 1217, power (kW) 90, max pressure (bar) 7.
An industrial screw compressor is a helical-rotor machine, compact or with integrated receiver and dryer, that delivers a continuous supply of compressed air to workshops and production lines.
What it is for
Used in compressed air systems, from generation in the compressor room to distribution on the shop floor.
How to use it
Position it in a clean, ventilated area away from heat sources, with clear access to the panels for maintenance. Connect it to the distribution network with an isolating valve, and set the pressure and load/unload or variable speed operation on the control panel. Drain condensate, check alarms and carry out scheduled maintenance at the hours specified in the manual.
Where it is used
- Industrial plant engineering
- Chemical industry
- Mechanical engineering industry
Technical data
- Regulations: PED 2014/68/EU, Machinery Directive 2006/42/EC, ISO 1217
- Power (kW): 90
- Max pressure (bar): 7
- Air flow rate: 6303 - 19100 l/min. / 6.30 - 19.10 m3/min. / 223 - 675 c.f.m.
- Lubrication: With oil
- No. of stages: 2
- Voltage/frequency (Hz): 400/50
- G connection: DN50
- Controller: Login
- Engine type: Electric
- Energy efficiency: IE4
- Sound level (dB(A)): 73
- Gross weight (kg): 3500
- Weight (kg): 3050
Who it is for
Designed for industrial maintenance technicians.
Related products
- Two-stage screw compressor K-MAX TS 90-08 VS Fini Compressori
- Two-stage screw compressor K-MAX TS 75-10 VS Fini Compressori
- Air tank, 500 litres, 11 bar Abac — from the category Compressed Air Receivers
- Y-fitting art. 27 — from the category Compressed Air Accessories and Tools
- Browse the whole category: Industrial Screw Compressors
Before you order
In your request, please state the power rating, the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 17
| Regulations | PED 2014/68/EU, Machinery Directive 2006/42/EC, ISO 1217 |
|---|---|
| Power (kW) | 90 |
| Max pressure (bar) | 7 |
| Item code | V60ZE97FNM045 |
| Air flow rate | 6303 - 19100 l/min. / 6.30 - 19.10 m3/min. / 223 - 675 c.f.m. |
| Lubrication | With oil |
| No. of stages | 2 |
| Voltage/frequency (Hz) | 400/50 |
| G connection | DN50 |
| Controller | Login |
| Engine type | Electric |
| Energy efficiency | IE4 |
| Sound level (dB(A)) | 73 |
| Gross weight (kg) | 3500 |
| Weight (kg) | 3050 |
| Packaging dimensions (L×P×H mm) | 3000 × 2000 × 2200 |
| Net dimensions (L×P×H mm) | 3000 × 2000 × 2200 |
Compare with similar models
Technical data declared by the manufacturers. An empty cell means the figure is not declared.
| Feature |
This model
Two-stage screw compressor K-MAX TS 90-07 VS Fini Compressori
|
Screw compressor PLUS 8-08 Fini Compressori
|
Screw compressor MICRO SE 4.0-08 Fini Compressori
|
Compact screw compressor MICRO 5.5-13 Fini Compressori
|
|---|---|---|---|---|
| Brand | Fini Compressori | Fini Compressori | Fini Compressori | Fini Compressori |
| Power | 90 kW | 7,5 kW | 4 kW | 5,5 kW |
| Max pressure | 7 bar | 8 bar | 8 bar | 13 bar |
| Air flow rate | 6303 - 19100 l/min. / 6.30 - 19.10 m3/min. / 223 - 675 c.f.m. | 1250 l/min. / 1.25 m3/min. / 44 c.f.m. | 580 l/min. / 0.58 m3/min. / 20 c.f.m. | 485 l/min. / 0.49 m3/min. / 17 c.f.m. |
| No. of stages | 2 | 1 | 1 | 1 |
| G connection | DN50 | 3/4" | 1/2" | 1/2" |
| Controller | Login | ETMII | Login | ETMII |
| Energy efficiency | IE4 | IE3 | IE3 | IE3 |
| Sound level (dB(A)) | 73 dB(A | 68 dB(A | 60 dB(A | 64 dB(A |
