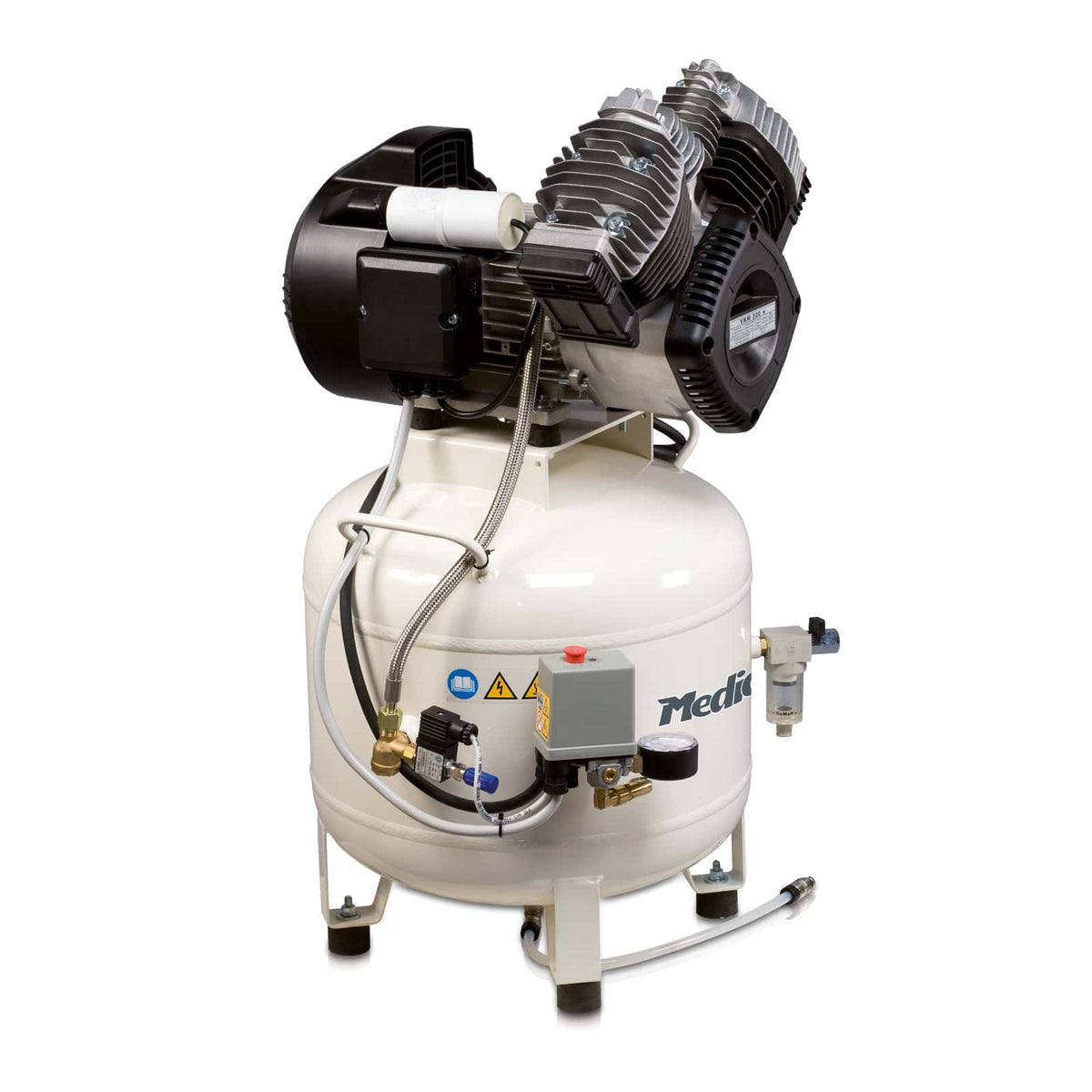

Oil-free piston compressor 50 L MedicAir Med 320-50V-3M Fini Compressori

What it is

Oil-free piston compressor 50 L MedicAir Med 320-50V-3M Fini Compressori. Key specifications: regulations PED 2014/68/EU, Machinery Directive 2006/42/EC, ISO 1217, power (HP) 3, tank capacity (L) 50.

A piston compressor produces compressed air with one or more cylinders and stores it in a receiver, to supply air tools, spray guns and tyre inflation.

What it is for

Used to supply air tools, from the compressor to the point of use and in compressed air systems, from generation in the compressor room to distribution on the shop floor.

How to use it

Place it on a stable, well-ventilated surface, outdoors if it has a combustion engine, and connect it to a suitable socket or refuel it. On lubricated models, check the oil level before starting, then set the regulator to the pressure required by the tool. Drain condensate from the receiver regularly and clean or replace the air filters as specified in the manual.

Where it is used

• Food industry
• Chemical industry

Technical data

• Regulations: PED 2014/68/EU, Machinery Directive 2006/42/EC, ISO 1217
• Power (HP): 3
• Tank capacity (L): 50
• Max pressure (bar): 8
• Intake air: 235 l/min / 14 c.f.m.
• No. of revolutions (rpm): 1400
• Lubrication: Oil-free
• Pumping unit: VKM320
• No. of cylinders: 2
• Voltage/frequency (Hz): 230/50
• Engine type: Electric
• Sound level (dB(A)): 72
• Gross weight: 53 kg / 116 lb
• Packaging dimensions (L×P×H mm): 400 × 500 × 950

Who it is for

Designed for industrial maintenance technicians.
