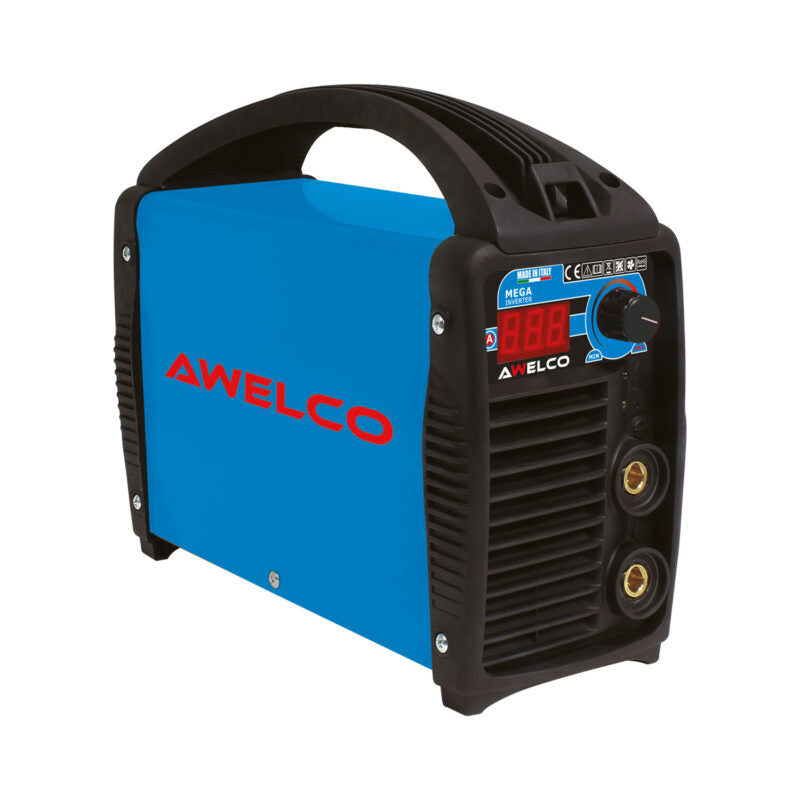

MMA electrode inverter welding machine, Mega 220, Awelco

What it is

The MEGA 220 MMA inverter welder by Awelco (code 62275) is the professional solution for stick electrode welding in craft, industrial and maintenance settings. Designed to ensure arc stability and precise current control, it suits work on steel, stainless steel and cast iron, with clean results and less waste.

A stick (MMA) welder is a power source that melts a coated electrode to weld steel, stainless steel and cast iron; it is used with electrodes, cables and connectors.

What it is for

Used in steel fabrication, from cutting to assembly and in welding and the work that goes with it.

How to use it

Connect the earth clamp to the clean workpiece close to the joint, fit the electrode in the electrode holder and set the current according to the type and diameter of the electrode. Strike the arc by scratching the electrode on the workpiece and travel with a short arc and constant angle; at the end of the bead, remove the slag with a chipping hammer and wire brush. Store electrodes in a dry place and work with a welding helmet, gloves and welding clothing.

Where it is used

• Mechanical engineering industry
• Mechanical workshops

Technical data

• Voltage: 230 V~1ph
• Absorbed power: KVA 7 kW 5
• No load voltage (V): 60
• Welding current (A): 30-160 190 MAX
• Duty cycle: 10/160
• Electrodes: 1,6-4(5)
• Packaging dimensions: 410x200x350
• Pcs per master box: 4

Who it is for

Designed for metal fabricators and welders.
