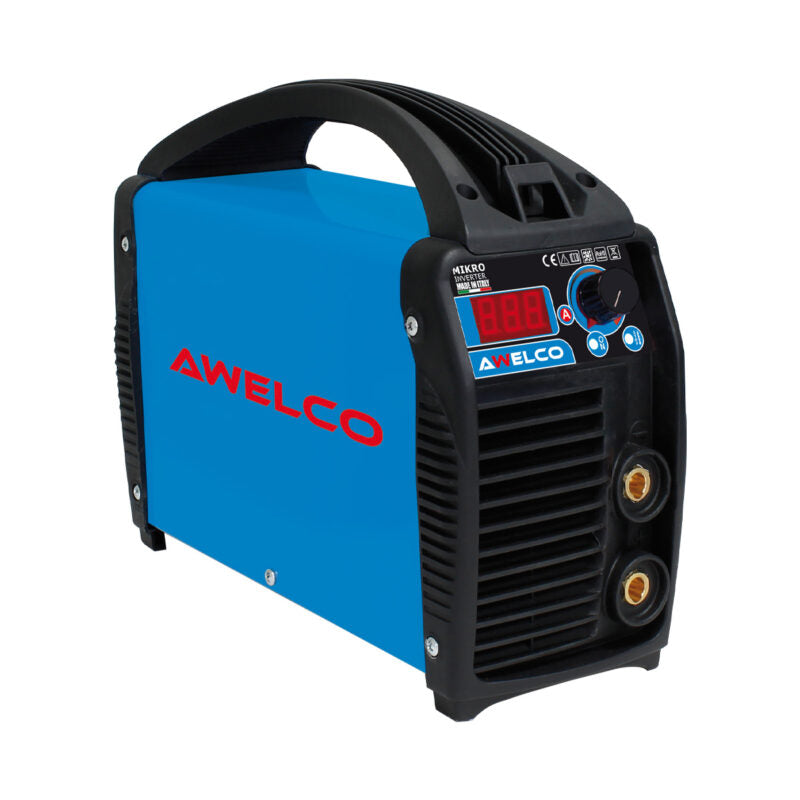

MMA electrode inverter welding machine, Mikro 164, Awelco
Key features
- Voltage230 V~1ph
- Absorbed powerKVA 6 kW 4.3
- No load voltage (V)60
- Welding current (A)30 - 140
- Duty cycle20/140
- Electrodes (mm)1,6 - 4
What it is
MMA electrode inverter welding machine, Mikro 164, Awelco. Key specifications: voltage 230 V~1ph, absorbed power KVA 6 kW 4.3, no load voltage (V) 60.
A stick (MMA) welder is a power source that melts a coated electrode to weld steel, stainless steel and cast iron; it is used with electrodes, cables and connectors.
What it is for
Used in steel fabrication, from cutting to assembly and in welding and the work that goes with it.
How to use it
Connect the earth clamp to the clean workpiece close to the joint, fit the electrode in the electrode holder and set the current according to the type and diameter of the electrode. Strike the arc by scratching the electrode on the workpiece and travel with a short arc and constant angle; at the end of the bead, remove the slag with a chipping hammer and wire brush. Store electrodes in a dry place and work with a welding helmet, gloves and welding clothing.
Where it is used
- Mechanical engineering industry
- Mechanical workshops
Technical data
- Voltage: 230 V~1ph
- Absorbed power: KVA 6 kW 4.3
- No load voltage (V): 60
- Welding current (A): 30 - 140
- Duty cycle: 20/140
- Electrodes (mm): 1,6 - 4
- Packaging dimensions: 410x200x350
- Pcs per master box: 4
Who it is for
Designed for metal fabricators and welders.
Related products
- MMA electrode inverter welding machine, Mikro 184, Awelco
- Wire-feed inverter welder MIG/MMA TRIS 500 Awelco
- Welding mask Helmet 1500-G Awelco — from the category Welding Helmets
- Leather sleeves for welders Leather Sleeves Strip 48cm Awelco — from the category Welders' Clothing, Protection and Accessories
- Steel deburring discs TOP Unifix — from the category Metal Grinding Discs
- Browse the whole category: Stick (MMA) Welders and Welding Accessories
Before you order
In your request, please state the supply voltage, the power rating and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 12
| Voltage | 230 V~1ph |
|---|---|
| Absorbed power | KVA 6 kW 4.3 |
| No-load voltage (V) | 60 |
| Welding current (A) | 30 - 140 |
| Duty cycle | 20/140 |
| Electrodes (mm) | 1,6 - 4 |
| Item code | 66264 |
| Packaging dimensions | 410x200x350 |
| Pcs per master box | 4 |
| EAN | 8004386662649 |
| Phase | monofase |
| Voltage | 230V |
