Multi-process inverter welding machine MIG/MMA/TIG, Mikromig 2000, Awelco

What it is

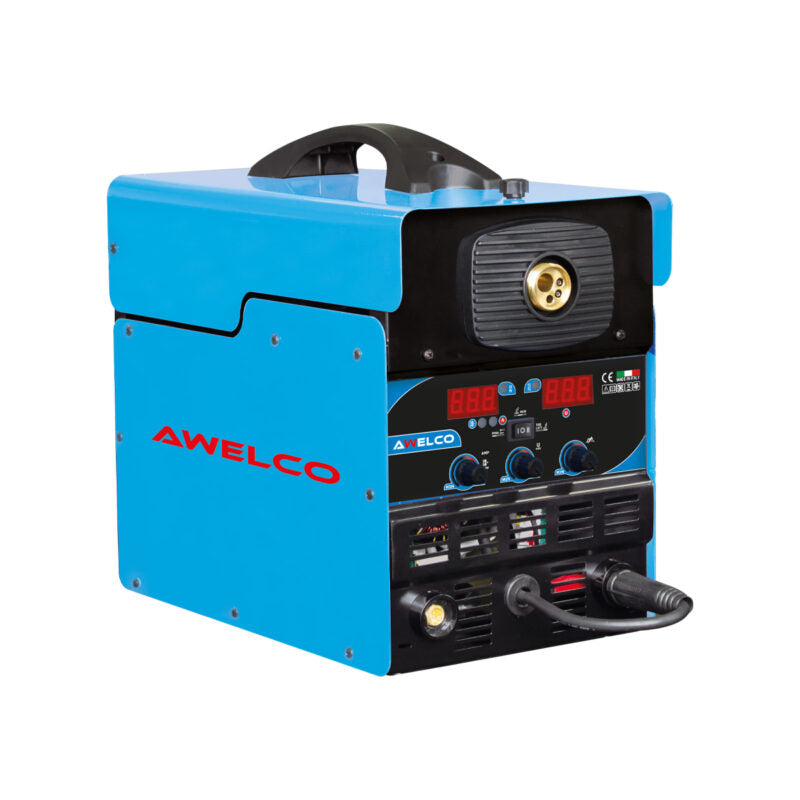

The continuous-wire MIG/MAG inverter welder Awelco Multiprocess inverter welder MIG/MMA/TIG MIKROMIG 2000 Awelco (code 59850) combines arc stability and precise wire control to meet the needs of workshops, craft laboratories and building sites that require operating flexibility. Designed for a 230V single-phase supply, this machine supports MIG/MAG, MMA (electrode) and TIG processes (with dedicated accessories), covering a wide range of applications on different metals.

A MIG/MAG welder is a power source that feeds a continuous wire through the torch, either gas-shielded or gasless flux-cored; this family includes wires and gas cylinders.

What it is for

Used in steel fabrication, from cutting to assembly and in welding and the work that goes with it.

How to use it

Fit the spool and check that the drive rolls and contact tip match the wire diameter; for solid wire, connect a cylinder of the shielding gas suited to the material, while gasless flux-cored wire does not need one. Clamp the earth to the clean workpiece, set the voltage and wire feed speed and weld keeping the torch at a constant distance. Clean spatter from the nozzle and tip frequently, and work with a welding helmet, gloves and good ventilation.

Where it is used

• Shipyards
• Mechanical engineering industry
• Mechanical workshops

Technical data

• Voltage: 230 V~1ph
• Absorbed power: MIG 7.7 kVA 5.9 kW MMA 8.7 kVA 6.8 kW TIG 6.2 kVA 4.8 kW
• No load voltage (V): 56
• Welding current (A): MIG 20-200 MMA 20-200 TIG 20-200
• Duty cycle: MIG 30/200 MMA 30/200 TIG 30/200
• Electrodes (mm): 1,6 - 4,0

Who it is for

Designed for shipwrights, metal fabricators and welders.
