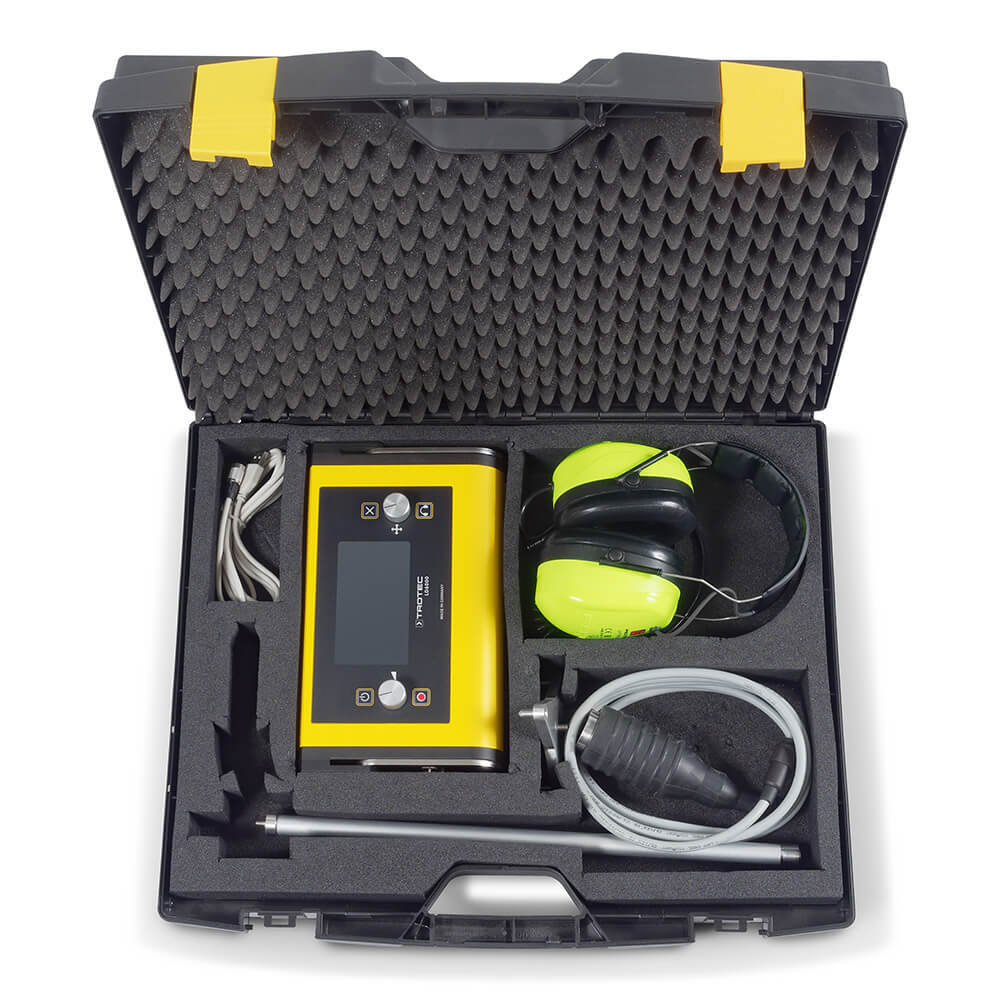

Acoustic leak detector Trotec LD6000
Key features
- ControlsVia touchscreen, buttons or control knob
- Amplification120 dB
- Input impedance1 M Ω
- Frequency spectrum (Hz)0 - 4,000
- DisplayColour LCD (automatic backlight), 480 x 272 pixels
- Battery checkVia microcontroller
What it is
Acoustic leak detector Trotec LD6000. Key specifications: controls Via touchscreen, buttons or control knob, amplification 120 dB, input impedance 1 M Ω.
The acoustic leak detector listens to the noise of water or gas escaping from a pipe, to locate the leak without demolition.
What it is for
Used in the installation and maintenance of plumbing systems and for inspecting plant, pipework and structures.
How to use it
Switch the instrument on and place the sensor or probe along the route of the pipe, listening through the headphones and watching the signal level. The leak is where the noise is loudest. Work in as quiet an environment as possible.
Where it is used
- Building services
- Building maintenance
- Water engineering works
Technical data
- Controls: Via touchscreen, buttons or control knob
- Amplification: 120 dB
- Input impedance: 1 M Ω
- Frequency spectrum (Hz): 0 - 4,000
- Display: Colour LCD (automatic backlight), 480 x 272 pixels
- Battery check: Via microcontroller
- Output impedance: ≤ 10 Ω
- Power supply: 4 x 1.5V LR14 C-type batteries
- Protection class: IP54
- Housing: Aluminium, powder-coated
- Product size l x w x h: 210 x 160 x 60 mm
- Weight (kg): 1,05
Who it is for
Designed for plumbers and heating and plumbing engineers.
Related products
- Acoustic leak detector Trotec LD8
- Acoustic leak detector Trotec LD6
- Electrical insulating glove Electro Neri 347012 — from the category VDE 1000V Tools: Insulated Tools for Electrical Installations
- 9V battery Procell — from the category Household Batteries
- Multiple charging station for gas detectors Irudek Multicharger — from the category Gas Detectors
- Browse the whole category: Electrical and Gas Measuring Instruments
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 13
| Item code | LD6000 |
|---|---|
| Controls | Via touchscreen, buttons or control knob |
| Amplification | 120 dB |
| Input impedance | 1 M Ω |
| Frequency spectrum (Hz) | 0 - 4,000 |
| Display | Colour LCD (automatic backlight), 480 x 272 pixels |
| Battery check | Via microcontroller |
| Output impedance | ≤ 10 Ω |
| Power supply | 4 x 1.5V LR14 C-type batteries |
| Protection class | IP54 |
| Housing | Aluminium, powder-coated |
| Product size l x w x h | 210 x 160 x 60 mm |
| Weight (kg) | 1,05 |
