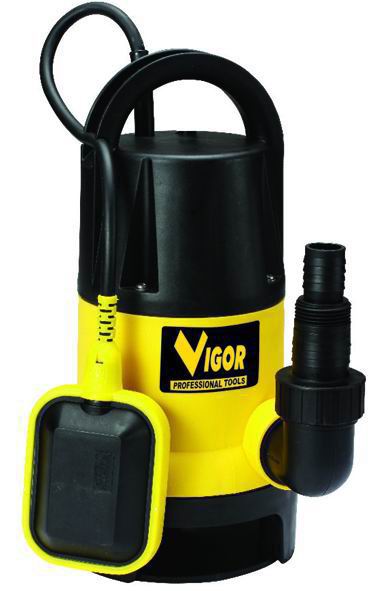

Submersible electric pumps Al-550, self-priming, dirty water, 1-1/2" M, Vigor
Key features
- Power (W)550
- Voltage (V)240
- Submersible forSubmersible for dirty water
- Motor windingCopper motor winding
- Max flow rate (l/min)175
- Max head (m)7
What it is
Submersible electric pumps Al-550, self-priming, dirty water, 1-1/2" M, Vigor. Key specifications: power (W) 550, voltage (V) 240, submersible for Submersible for dirty water.
A dirty water pump is an electric pump or engine-driven pump that draws water containing mud, sand or solids from excavations, sumps, tanks and flooded rooms.
What it is for
Used for water drainage and for pumping water out of excavations, tanks and sumps.
How to use it
Lower the submersible pump to the lowest point, suspended by a rope attached to the handle (never by the cable), and rest it on firm ground; set the engine-driven pump on a level surface, prime it by filling the pump casing with water and immerse the suction hose with its strainer. Connect the delivery hose without kinks, start the pump and check that it does not run dry. After use, run it in clean water to flush it out.
Where it is used
- Agriculture
- Building services
- Water engineering works
Technical data
- Power (W): 550
- Voltage (V): 240
- Submersible for: Submersible for dirty water
- Motor winding: Copper motor winding
- Max flow rate (l/min): 175
- Max head (m): 7
- Length (m): 7
- Connection: 1
- Protection rating: IP8
Who it is for
Designed for plumbers, agricultural workers and heating and plumbing engineers.
Related products
- Submersible drainage electric pump AS Wortex
- Engine-driven pumps Pramac MP66-3
- Low-density PE pipe PN6 — from the category Water Hoses and Layflat Hoses
- Generator RG6000KS-M5 AVR (50 Hz) Genmac — from the category Portable and Wheeled Generating Sets
- Marine braid rope, super, 30 m hanks, 4 mm, Vigor — from the category Synthetic Ropes and Lines
- Browse the whole category: Electric and Engine-Driven Pumps for Dirty Water and Wastewater
Before you order
In your request, please state the length, the supply voltage, the power rating and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 10
| Power (W) | 550 |
|---|---|
| Voltage (V) | 240 |
| Submersible for | Submersible for dirty water |
| Motor winding | Copper motor winding |
| Max flow rate (l/min) | 175 |
| Max head (m) | 7 |
| Length (m) | 7 |
| Connection | 1 |
| Protection rating | IP8 |
| Item code | 75740-35 |
