All Wagner products

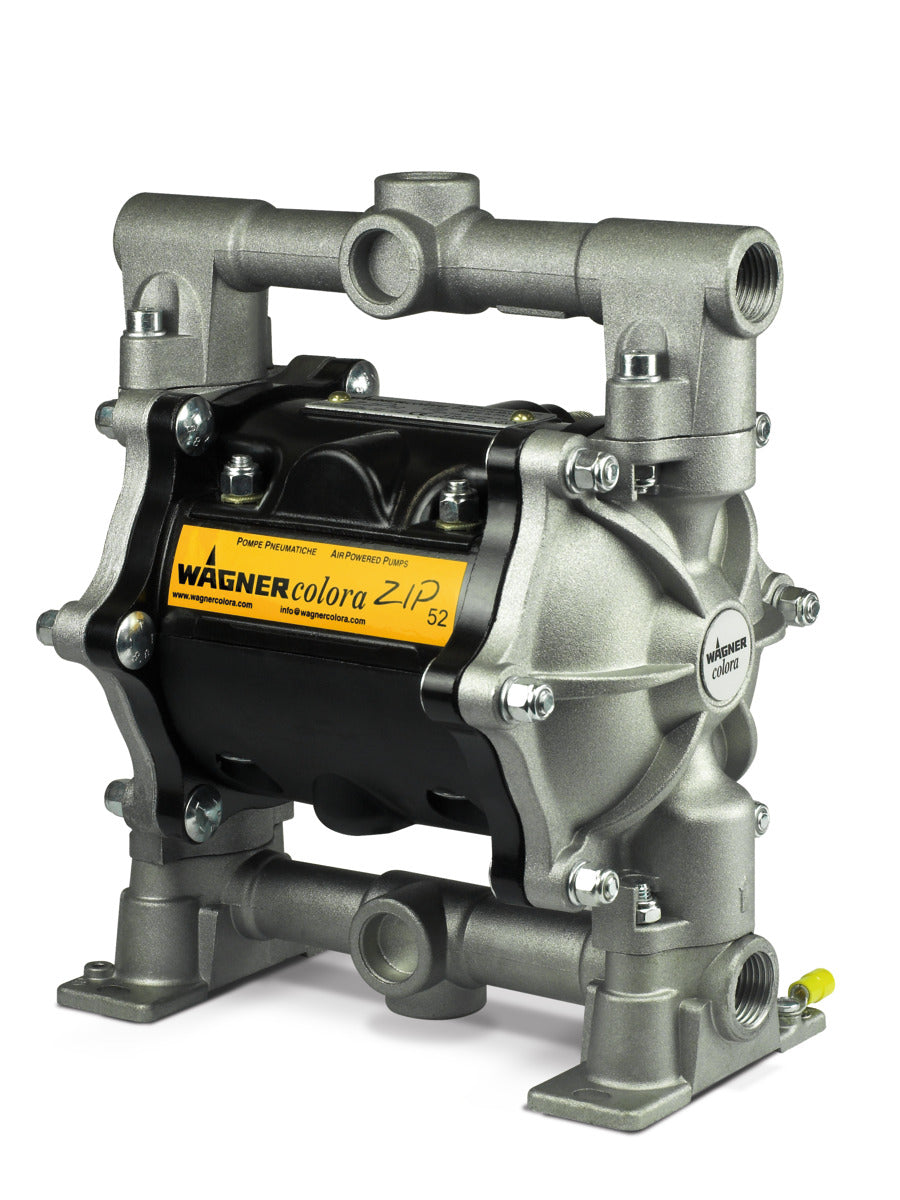

Professional air-operated double diaphragm pump Zip 52 Wagner
Key features
- Max flow rate (l/min)52
- Operating pressure0.8 MPa
- Weight (kg)3,8
- TechnologyDouble-diaphragm pump
- DrivePneumatic
- Explosion proof protectionSì
What it is
Professional air-operated double diaphragm pump Zip 52 Wagner. Key specifications: max flow rate (l/min) 52, operating pressure 0.8 MPa, weight (kg) 3,8.
These are spray painting systems and guns: airless pumps, spray guns, pressure pots, two-component systems and powder coating systems.
What it is for
Used for painting interiors and exteriors and for coating wood, metal and masonry surfaces.
How to use it
Prepare and strain the product to the stated viscosity, choose the right tip and set the pressure and flow rate with a test on cardboard. Mask off anything that needs protecting and spray at a constant distance, perpendicular to the surface, with parallel overlapping passes. After use, flush the circuit immediately with the solvent or water suited to the product; work with a vapour or dust mask in a ventilated area.
Where it is used
- Industrial construction
- Residential construction
Technical data
- Max flow rate (l/min): 52
- Operating pressure: 0.8 MPa
- Weight (kg): 3,8
- Technology: Double-diaphragm pump
- Drive: Pneumatic
- Explosion proof protection: Sì
- Inlet air pressure: 0.1–0.8 MPa
- Max material pressure: 0.8 MPa
- Maximum suction height (m): 4,9
- Max solid particle size (mm): 2
- Sound pressure level, 50 cycles/min (dB(A)): 76
- Operating temperature: 4-90 °C
- Compressed air connection: 1/4"
- Connection material: 1/2"
Who it is for
Designed for decorative finishers, painters and decorators and construction painters.
Related products
- Professional air-operated double diaphragm pump Zip 80 Wagner
- Professional air-operated double diaphragm pump Zip 182 Wagner
- Washi paper tape NPT Sigill — from the category Paper Masking Tapes
- Surgical mask +Sana Type II Neri 151135 — from the category Dust and Gas Respirators
- POLY solvent Kimia — from the category Solvents and Thinners for Paints and Coatings
- Browse the whole category: Misting and Spraying Systems
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 14
| Max flow rate (l/min) | 52 |
|---|---|
| Operating pressure | 0.8 MPa |
| Weight (kg) | 3,8 |
| Technology | Double-diaphragm pump |
| Drive | Pneumatic |
| Explosion-proof protection | Sì |
| Inlet air pressure | 0.1–0.8 MPa |
| Max material pressure | 0.8 MPa |
| Maximum suction height (m) | 4,9 |
| Max solid particle size (mm) | 2 |
| Sound pressure level, 50 cycles/min (dB(A)) | 76 |
| Operating temperature | 4-90 °C |
| Compressed air connection | 1/4" |
| Connection material | 1/2" |
