Wortex PROFI - Submersible Drainage Pumps

Benefits

• Wortex Reliability: recognized brand in the Submersible Drainage Pumps sector
• Consistent performance: tested for professional use
• Compatibility: integrable with the Wortex line
• AMES Support: pre and post-sales technical consultancy

Applications

The Wortex PROFI - Submersible Drainage Pumps tool is intended for professional use in the following contexts:

• Construction sites, infrastructures and plants
• Workshops, laboratories and industrial production
• Specialized technical maintenance
• Operators and professionals in the Submersible Drainage Pumps sector

Standards and Compliance

Reference standards: CE marking according to applicable EU directives for the Submersible Drainage Pumps sector, compliance with current technical and safety regulations, technical documentation provided by the manufacturer Wortex.

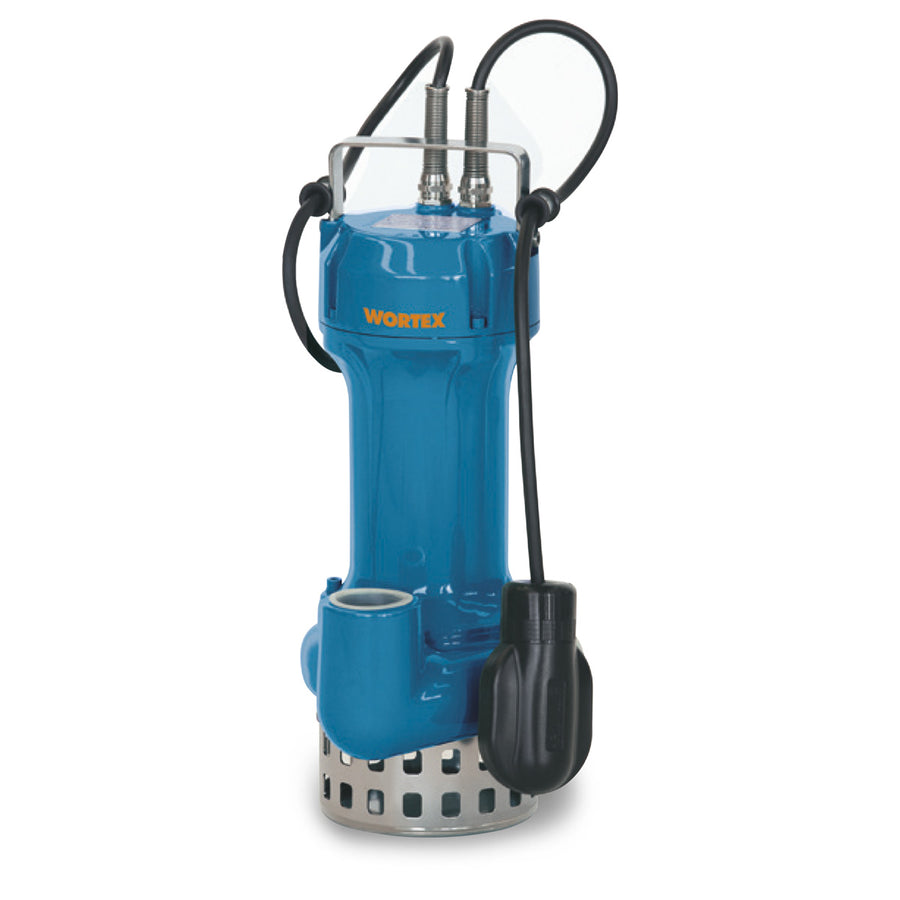

PROFI (Wortex — Submersible drainage pumps) — Via A.Volta, 5/7 Poviglio (RE) 42028 - Italy Drainage pumps with open recessed impeller with filtering grid. Suitable for lifting clear water with small suspended solids, for rainwater and infiltration water, and for emptying rainwater or collection water. - Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41) Max. liquid temperature: 35°C (for other uses) - Maximum immersion depth 20 mt. (with appropriately long cable) - Solids passage Ø 10 mm - Min. suction level 100 mm - Continuous duty - Insulation Class F - Protection IP 68 - Thermal protector (single-phase only) - Motor body: Cast iron - Pump body: Cast iron - Impeller: Cast iron - Motor shaft: Stainless steel AISI 304 - Grid: Stainless steel AISI 304 - Mechanical seal with oil chamber: Silicon/Silicon/NBR " * " indicates required fields For over 50 years, WORTEX has been synonymous with innovation, quality, and reliability. Our constant commitment to meeting the needs of an ever-evolving market has positioned us among the leading players, both nationally and internationally.

Technical specifications

Features

• Via A.Volta, 5/7 Poviglio (RE) 42028 - Italy
• - Insulation Class F - Protection IP 68 - Thermal protector (single-phase only)
• - Motor body: Cast iron - Pump body: Cast iron - Impeller: Cast iron - Motor shaft: Stainless steel AISI 304 - Grid: Stainless steel AISI 304 - Mechanical seal with oil chamber: Silicon/Silicon/NBR
• " * " indicates required fields

Why choose Wortex

• Over 50 years of experience: pumping and pressurization for industry, agriculture and civil use
• Complete range: electric pumps, pressure washers, generators, motor compressors and motor wheelbarrows
• Reliability and durability: quality materials (stainless steel, cast iron) and high performance
• Customized solutions: for residential, civil and industrial needs

Request a quote from AMES Srl for PROFI: we will contact you with variations, performance and supply conditions.
