Pulleys with clamp CSC Edilizia 255B

What it is

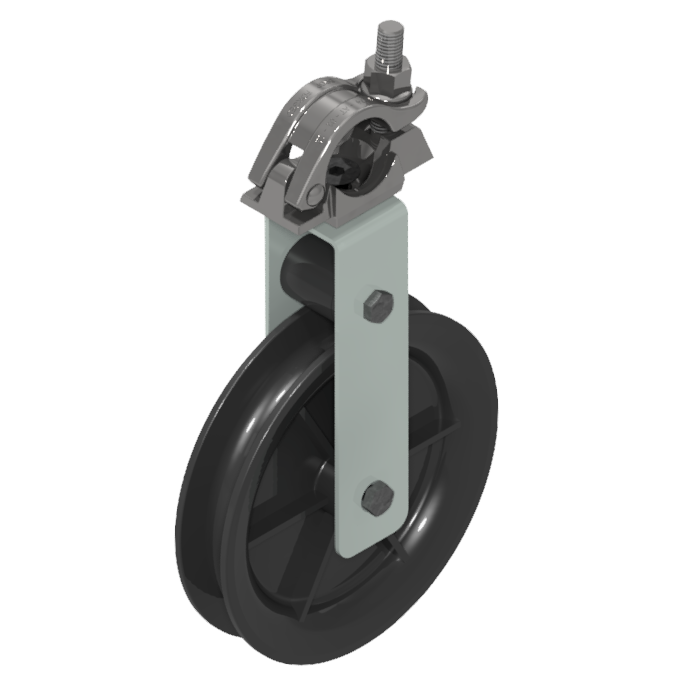

Pulley with clamp CSC Edilizia 255B is a variant designed for fixing by clamp to scaffolding tubes and structures, offering a stable anchorage for vertical hoisting of materials. It is made of S235JR structural steel (Fe 360 B) with a galvanised treatment against corrosion, has a capacity of 50 kg and a weight of 1.40 kg, with machining in compliance with the general tolerances of UNI-ISO 2768.

Pulleys, hoists and winches are devices for lifting or pulling loads with ropes or chains, reducing effort through mechanical advantage or a motor.

What it is for

Used for lifting loads, with accessories rated for the weight involved.

How to use it

Check that the capacity of the device and of the attachment point exceeds the load, and hang it from a solid structure with the hook safety latch closed. Lift slowly, with the load hanging vertically below the attachment point, and never stand underneath. Before use, check the rope or chain, hooks and brake, and carry out the periodic inspections required for lifting equipment.

Where it is used

• Residential construction

Technical data

• Material: S235JR (Fe 360 B)
• Regulations: UNI-ISO 2768
• Capacity (kg): 50
• Weight (kg): 1,40
• Treatment: Galvanised

Who it is for

Designed for formwork carpenters and construction workers.
