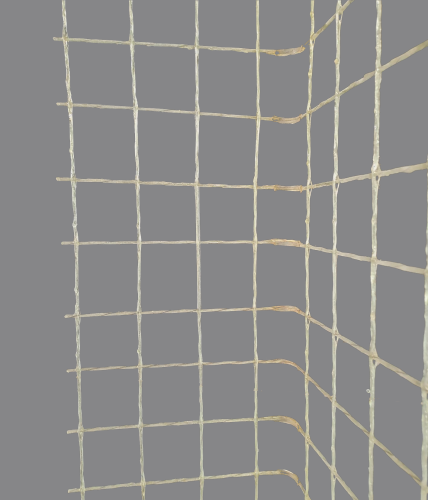

Preformed glass fibre corner bead Kimitech Corner CRM 33x33, 66x66, 99x99 Kimia

Code Kimitech CORNER CRM 33

Key features

  • ModelKimitech CORNER CRM 33
  • Made in Italy100% Italian production
  • Mesh size33 x 33 mm
  • Zirconium content (Zr)> 16
  • Fibre typeFibreglass
  • Matrix typeEpoxy resin
See all 38 specifications

What it is

Preformed glass fibre corner bead Kimitech Corner CRM 33x33, 66x66, 99x99 Kimia. Key specifications: model Kimitech CORNER CRM 33, line Kimitech, made in Italy 100% Italian production.

FRP and FRCM structural strengthening is a system of fibre fabrics, meshes and connectors, applied with resins or mortars, that increases the strength of beams, columns and masonry.

What it is for

Used for strengthening masonry and concrete structures and for structural fixings, where the fixing is load-bearing and must be calculated.

How to use it

Strengthening must be carried out to a design by a qualified engineer. Remove render and deteriorated material, repair the substrate and apply the primer; then apply the first coat of resin or mortar, lay the fabric or mesh taut and free of air bubbles and cover it with the second coat. Insert the connectors into clean holes filled with resin; handle resins and primers with gloves and safety glasses.

Where it is used

  • Industrial construction
  • Conservation and restoration
  • Renovation

Technical data

  • Model: Kimitech CORNER CRM 33
  • Line: Kimitech
  • Made in Italy: 100% Italian production
  • Mesh size: 33 x 33 mm
  • Zirconium content (Zr): > 16
  • Fibre type: Fibreglass
  • Matrix type: Epoxy resin
  • Fibre density: 2,62 g/cm3
  • Percentage of glass fibre by weight: 75%
  • Percentage of resin by weight: 25%
  • No. of bars per metre: Warp 30, weft 30
  • Warp 45 mm²: Weft: 4.5 mm2
  • Nominal bar diameter: Warp: 3 mm
  • Weft 3 mm: Nominal cross-section of the bars

Who it is for

Designed for formwork carpenters, bricklayers and restorers.

Related products

Before you order

In your request, please state the diameter and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.

Quantity
Specifications 38
ModelKimitech CORNER CRM 33
LineKimitech
Made in Italy100% Italian production
Mesh size33 x 33 mm
Zirconium content (Zr)> 16
Fibre typeFibreglass
Matrix typeEpoxy resin
Fibre density2,62 g/cm3
Percentage of glass fibre by weight75%
Percentage of resin by weight25%
No. of bars per metreWarp 30, weft 30
Warp 45 mm²Weft: 4.5 mm2
Nominal bar diameterWarp: 3 mm
Weft 3 mmNominal cross-section of the bars
Warp 707 mm² 5Weft: 7.07 mm2 ± 5%
Equivalent thicknessWarp: 0.212 mm
Weft 0212 mmResistant cross-section
Warp 212 mm²/mWeft: 212 mm2/m
Characteristic valueWarp: 5.97 kN
Weft 619 knWarp: 5.18 kN
Diode(characteristic value)
Warp 1792 kN/mWeft: 185.8 kN/m
Warp 1555 kN/mWeft: 159.5 kN/m
Freeze-thaw resistanceResidue > 85%
Humidity resistance at 1000 and 3000 hoursResidue > 85%
Residue 85Resistance to alkaline environments at 1000 and 3000 hours
Weft 15Nominal fibre area
Weft 0106 mmResistant cross-section
Warp 106 mm²/mWeft: 106 mm2/m
Weft 655 knWarp: 5.05 kN
Warp 883 kN/mWeft: 98.2 kN/m
Warp 758 kN/mWeft: 84.1 kN/m
Weft 10Nominal fibre area
Weft 0071 mmResistant cross-section
Warp 707 mm²/mWeft: 70.7 mm2/m
Weft 645 knWarp: 5.13 kN
Warp 631 kN/mWeft: 64.5 kN/m
Warp 513 kN/mWeft: 55.3 kN/m

Technical documents

Manufacturer documents (PDF, opens in a new tab).

Compare with similar models

Technical data declared by the manufacturers. An empty cell means the figure is not declared.

Feature This model Preformed glass fibre corner bead Kimitech Corner CRM 33x33, 66x66, 99x99 Kimia Preformed rigid structural glass-fibre mesh Kimitech WALLMESH CRM 66x66 Kimia Preformed rigid structural glass-fibre mesh Kimitech WALLMESH CRM 33x33 Kimia Preformed rigid structural glass-fibre mesh Kimitech WALLMESH CRM 99x99 Kimia
Brand KimiaKimiaKimiaKimia
Mesh size 33 x 33 mm66 x 66 mm33 x 33 mm99 x 99 mm
Zirconium content > 16> 16> 16> 16
Fibre type FibreglassFibreglassFibreglassFibreglass
Matrix type Epoxy resinEpoxy resinEpoxy resinEpoxy resin
Fibre density 2,62 g/cm32,62 g/cm32,62 g/cm32,62 g/cm3
Percentage of glass fibre by weight 75%75%75%75%
No. of bars per metre Warp 30, weft 30Warp 15, weft 15Warp 30, weft 30Warp 10, weft 10
Characteristic value Warp: 5.97 kNWarp: 833 MPaWarp: 845 MPaWarp: 893 MPa
