Grillo Green Pin a D con dado e coppiglia SpanSet
All SpanSet products

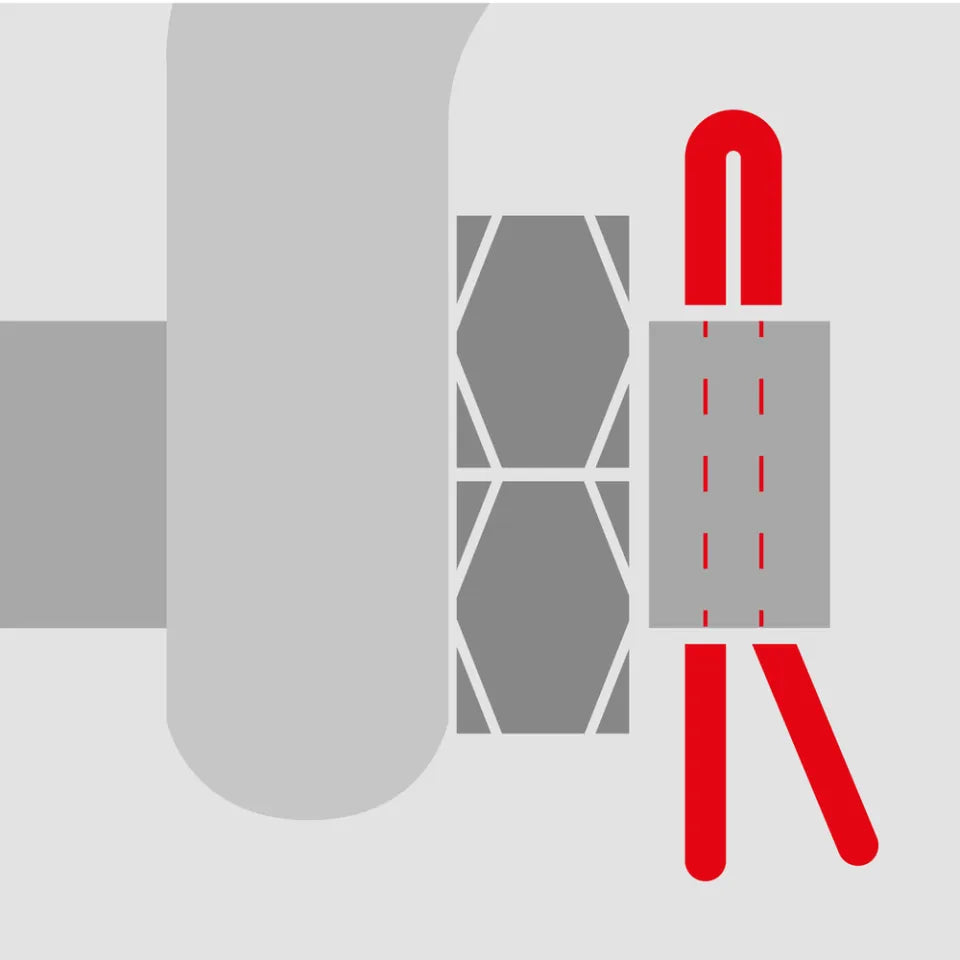

D-Shackle Green Pin with Nut and Cotter Pin SpanSet

Code 2009188

Key features

  • WLL (tonnes)2 t, 3,25 t, 4,75 t, 6,5 t, 8,5 t, 9,5 t
  • Diameter in inches0,5 in, 0.625 in, 0,75 in, 0.875 in, 1 in, 1.125 in
  • Grade60, 80
  • WLL2000 kg, 3250 kg, 4750 kg, 6500 kg, 8500 kg, 9500 kg
  • Dimensions22 mm, 27 mm, 31 mm, 36 mm, 43 mm, 47 mm
  • Dimension B16 mm, 19 mm, 22 mm, 25 mm, 28 mm, 32 mm
See all 15 specifications

What it is

D-Shackle Green Pin with Nut and Cotter Pin SpanSet. Key specifications: WLL (tonnes) 2 t, 3,25 t, 4,75 t, 6,5 t, 8,5 t, 9,5 t, diameter in inches 0,5 in, 0.625 in, 0,75 in, 0.875 in, 1 in, 1.125 in, grade 60, 80.

Chain fittings are hooks, shackles, master links and snap hooks that connect chains, ropes and straps to the load or to the attachment point.

What it is for

Used for anchoring to walls, ceilings and floors, for handling materials on site and for lifting loads, with accessories rated for the weight involved.

How to use it

Match each fitting to the size and grade of the chain or rope, and check that its rated capacity is at least equal to that of the rest of the sling assembly. For lifting, use only marked and certified parts: brass snap hooks and hardware-store hooks are for light duty, not suspended loads. Always close safety latches and shackle pins, and discard deformed or worn parts.

Where it is used

  • Industrial construction
  • Logistics and warehousing

Technical data

  • WLL (tonnes): 2 t, 3,25 t, 4,75 t, 6,5 t, 8,5 t, 9,5 t
  • Diameter in inches: 0,5 in, 0.625 in, 0,75 in, 0.875 in, 1 in, 1.125 in
  • Grade: 60, 80
  • WLL: 2000 kg, 3250 kg, 4750 kg, 6500 kg, 8500 kg, 9500 kg
  • Dimensions: 22 mm, 27 mm, 31 mm, 36 mm, 43 mm, 47 mm
  • Dimension B: 16 mm, 19 mm, 22 mm, 25 mm, 28 mm, 32 mm
  • Safety factor: 6:1, 5:1
  • Dimension C: 43 mm, 51 mm, 59 mm, 73 mm, 85 mm, 90 mm
  • Height dimension: 13,5 mm, 16 mm, 19 mm, 22 mm, 25 mm, 28 mm
  • Dimension F: 34 mm, 40 mm, 46 mm, 52 mm, 59 mm, 66 mm
  • Dimension H: 81 mm, 97 mm, 112 mm, 134 mm, 154 mm, 167 mm
  • Dimension m: 13 mm, 17 mm, 19 mm, 22 mm, 25 mm, 27 mm
  • Weight: 0,38 kg, 0,7 kg, 1 kg, 1,7 kg, 2,6 kg, 3,8 kg
  • Colour: Silver

Who it is for

Designed for formwork carpenters, crane operators, warehouse operatives and building maintenance operatives.

Related products

Before you order

In your request, please state the colour, the diameter and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.

Quantity
Specifications 15
WLL (tonnes)2 t, 3,25 t, 4,75 t, 6,5 t, 8,5 t, 9,5 t
Diameter in inches0,5 in, 0.625 in, 0,75 in, 0.875 in, 1 in, 1.125 in
Grade60, 80
WLL2000 kg, 3250 kg, 4750 kg, 6500 kg, 8500 kg, 9500 kg
Dimensions22 mm, 27 mm, 31 mm, 36 mm, 43 mm, 47 mm
Dimension B16 mm, 19 mm, 22 mm, 25 mm, 28 mm, 32 mm
Safety factor6:1, 5:1
Dimension C43 mm, 51 mm, 59 mm, 73 mm, 85 mm, 90 mm
Height dimension13,5 mm, 16 mm, 19 mm, 22 mm, 25 mm, 28 mm
Dimension F34 mm, 40 mm, 46 mm, 52 mm, 59 mm, 66 mm
Dimension H81 mm, 97 mm, 112 mm, 134 mm, 154 mm, 167 mm
Dimension m13 mm, 17 mm, 19 mm, 22 mm, 25 mm, 27 mm
Weight0,38 kg, 0,7 kg, 1 kg, 1,7 kg, 2,6 kg, 3,8 kg
ColourSilver
RegulationsEN 13889

Compare with similar models

Technical data declared by the manufacturers. An empty cell means the figure is not declared.

This model D-Shackle Green Pin with Nut and Cotter Pin SpanSet Bow (Omega) Shackle Green Pin with Nut and Cotter Pin SpanSet D-Shackle Green Pin with Screw Pin SpanSet Bow (Omega) Shackle Green Pin with Screw Pin SpanSet
Brand SpanSetSpanSetSpanSetSpanSet
WLL 2 t, 3,25 t, 4,75 t, 6,5 t, 8,5 t, 9,5 t12 t, 25 t, 35 t, 42,5 t, 55 t, 0,75 t0,5 t, 0,75 t, 1 t, 1,5 t, 2 t, 3,25 t0,33 t, 0,5 t, 0,75 t, 1 t, 1,5 t, 2 t
Diameter in inches 0,5 in, 0.625 in, 0,75 in, 0.875 in, 1 in, 1.125 in1,25 in, 1,75 in, 2 in, 2,25 in, 2,5 in, 0.3125 in0,25 in, 0.3125 in, 0.375 in, 0.4375 in, 0,5 in, 0.625 in0.1875 in, 0,25 in, 0.3125 in, 0.375 in, 0.4375 in, 0,5 in
WLL 2000 kg, 3250 kg, 4750 kg, 6500 kg, 8500 kg, 9500 kg12000 kg, 25000 kg, 35000 kg, 42500 kg, 55000 kg, 750 kg500 kg, 750 kg, 1000 kg, 1500 kg, 2000 kg, 3250 kg330 kg, 500 kg, 750 kg, 1000 kg, 1500 kg, 2000 kg
Dimensions 22 mm, 27 mm, 31 mm, 36 mm, 43 mm, 47 mm51 mm, 74 mm, 83 mm, 95 mm, 105 mm, 13 mm12 mm, 13 mm, 17 mm, 19 mm, 22 mm, 27 mm10 mm, 12 mm, 13 mm, 17 mm, 19 mm, 22 mm
Dimension B 16 mm, 19 mm, 22 mm, 25 mm, 28 mm, 32 mm35 mm, 50 mm, 57 mm, 65 mm, 70 mm, 10 mm8 mm, 10 mm, 11 mm, 13 mm, 16 mm, 19 mm6 mm, 8 mm, 10 mm, 11 mm, 13 mm, 16 mm
Dimension C 43 mm, 51 mm, 59 mm, 73 mm, 85 mm, 90 mm115 mm, 178 mm, 197 mm, 222 mm, 260 mm, 32 mm22 mm, 26 mm, 32 mm, 37 mm, 43 mm, 51 mm22 mm, 29 mm, 32 mm, 36,5 mm, 43 mm, 51 mm
Height dimension 13,5 mm, 16 mm, 19 mm, 22 mm, 25 mm, 28 mm32 mm, 45 mm, 50 mm, 57 mm, 65 mm, 9 mm7 mm, 9 mm, 11 mm, 13,5 mm, 16 mm, 19 mm5 mm, 7 mm, 9 mm, 10 mm, 11 mm, 13,5 mm
Dimension F 34 mm, 40 mm, 46 mm, 52 mm, 59 mm, 66 mm72 mm, 103 mm, 111 mm, 130 mm, 145 mm, 20 mm16,5 mm, 20 mm, 22,5 mm, 26,5 mm, 34 mm, 40 mm12 mm, 16,5 mm, 20 mm, 22,5 mm, 26,5 mm, 34 mm
