Pedrollo TEX® - Submersible Pumps For Wastewater And Drainage

Code TEX®

Key specifications

TipologiaElettropompa
Codice articoloTEX®
Caudalhasta 240 l/min (14.4 m³/h)
Alturahasta 10 m
Temperatura del l quidohasta +40 °C (+90 °C para servicio intermitente máximo de 3 minuas)
Paso de cuerpos s lidoshasta Ø 30 mm

See all 14 specifications

Advantages

Pedrollo Reliability: renowned brand in the Submersible Pumps for Wastewater and Drainage sector
Consistent performance: tested for professional use
Compatibility: integrable with the Pedrollo line
AMES Support: pre and post-sales technical consulting

Applications

The Pedrollo TEX® - Submersible Pumps for Wastewater and Drainage tool is intended for professional use in the following contexts:

Construction sites, infrastructure and plants
Workshops, laboratories and industrial production
Specialized technical maintenance
Operators and professionals in the Submersible Pumps for Wastewater and Drainage sector

Standards and Compliance

Reference regulations: CE marking according to applicable EU directives for the Submersible Pumps for Wastewater and Drainage sector, compliance with current technical and safety regulations, technical documentation provided by the manufacturer Pedrollo.

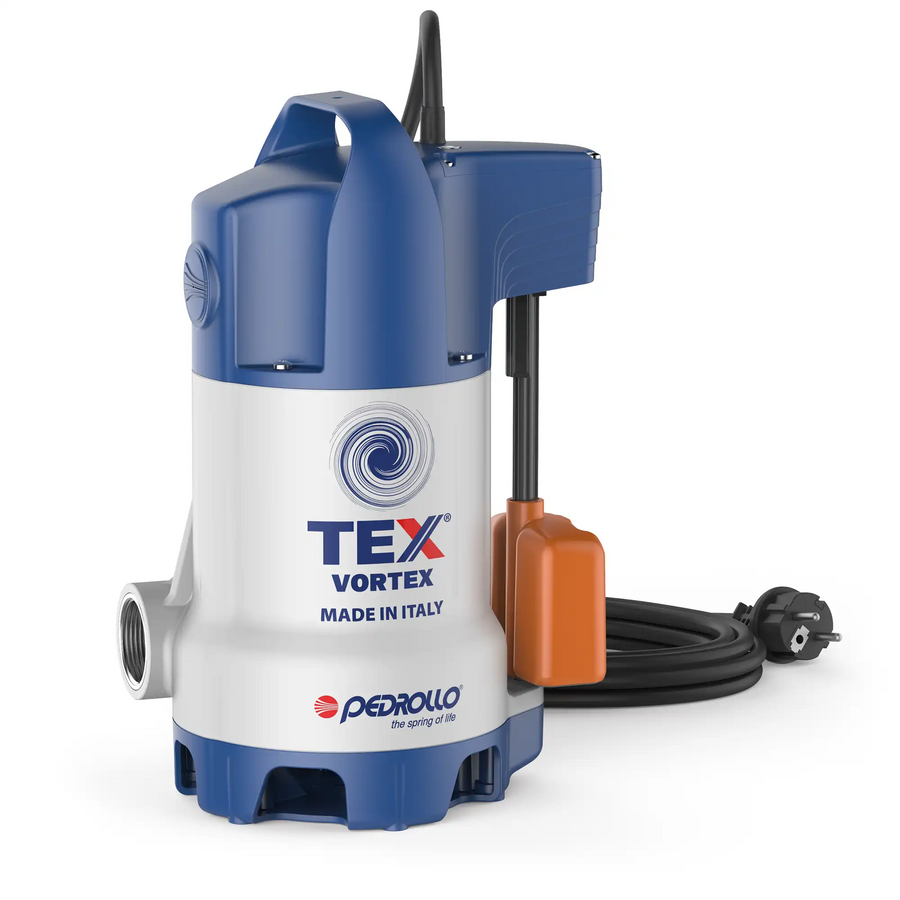

TEX® (Pedrollo) — Submersible electric pumps for greywater The TEX dirty water electric pumps are the reliable solution for wastewater. Typically used in fixed installations for emptying collection sumps, they can also be used for mobile applications, for example in tanks, cisterns, ditches or in case of flooding. TEX electric pumps are equipped with a compact integrated float with vertical-sliding magnetic operation that ensures total electrical safety and allows the pump to be used in very confined spaces (even in sumps as small as 220 mm side) Construction features Submersible pumps for wastewater and drainage Submersible electric pumps for heavily laden water Submersible electric pumps for clear water Submersible electric pumps for lightly laden water Wastewater lifting stations Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy

Technical data

Feature	Value
Flow rate	up to 240 l/min (14.4 m³/h)
Head	up to 10 m
Liquid temperature	up to +40 °C (+90 °C for intermittent service maximum of 3 minutes)
Passage of solid bodies	up to Ø 30 mm
Maximum immersion depth	up to 5 m (with power cable of adequate length)
Minimum draining level	35 mm
Motor	2 poles
Protection degree	IP 68
Pump body	Technopolymer
Impeller	Noryl™
Motor casing	AISI 304 stainless steel
Shaft	AISI 431 stainless steel

Main features

Construction features
Submersible pumps for wastewater and drainage
Submersible electric pumps for heavily laden water
Submersible electric pumps for clear water
Submersible electric pumps for lightly laden water
Wastewater lifting stations
Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy

Why choose Pedrollo

World leader in pumps: Pedrollo S.p.A., Italian excellence in electric pumps for water, recycling and circularity
Complete range: surface pumps, submerged pumps, submersible pumps, pressure booster sets, control panels and accessories
Hydraulic quality: excellent hydraulic characteristics, reliability and compactness for domestic, civil, industrial and agricultural use
Made in Italy: Italian design and production, distribution in over 160 countries

Request a quote from AMES Srl for TEX®: we will contact you with model, hydraulic performance and supply conditions.

Quantity

Products may not be in stock.
Delivery times depend on the manufacturer's speed.

Specifications

Tipologia	Elettropompa
Codice articolo	TEX®
Caudal	hasta 240 l/min (14.4 m³/h)
Altura	hasta 10 m
Temperatura del l quido	hasta +40 °C (+90 °C para servicio intermitente máximo de 3 minuas)
Paso de cuerpos s lidos	hasta Ø 30 mm
M xima profundidad de uso	hasta 5 m (con cable de alimentación de longitud adecuada)
Nivel m nimo de vaciado	35 mm
Motor	2 polos
Protecci n	IP 68
Cuerpo bomba	Tecnopolímero
Rodete	Noryl™
Camisa motor	Acero inoxidable AISI 304
Eje	Acero inoxidable AISI 431
