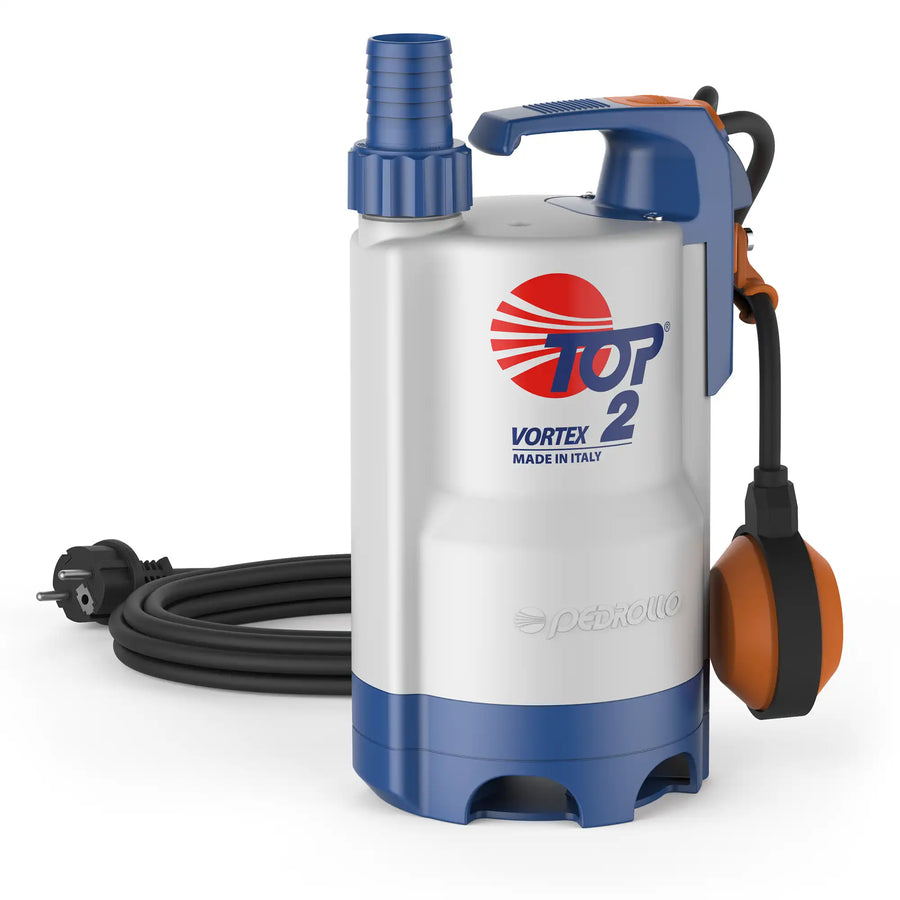

Pedrollo TOP-VORTEX - Pompe Sommergibili Per Acque Reflue E Drenaggio

Pedrollo TOP-VORTEX - Submersible Pumps for Wastewater and Drainage

Code TOP-VORTEX

Key specifications

TipologiaElettropompa
Codice articoloTOP-VORTEX
Caudalhasta 170 l/min (10.2 m³/h)
Alturahasta 8.7 m
Temperatura del l quidohasta +40 °C (+90 °C para servicio intermitente máximo de 3 minuas)
Paso de cuerpos s lidoshasta Ø 25 mm

See all 14 specifications

Advantages

Pedrollo Reliability: a recognized brand in the Submersible Pumps for Wastewater and Drainage sector
Consistent performance: tested for professional use
Compatibility: integrable with the Pedrollo line
AMES Support: pre- and post-sales technical consulting

Applications

The Pedrollo TOP-VORTEX - Submersible Pumps for Wastewater and Drainage is intended for professional use in the following contexts:

Construction sites, infrastructure, and plants
Workshops, laboratories, and industrial production
Specialized technical maintenance
Operators and professionals in the Submersible Pumps for Wastewater and Drainage sector

Standards and Compliance

Reference standards: CE marking according to EU directives applicable to the Submersible Pumps for Wastewater and Drainage sector, compliance with current technical and safety regulations, technical documentation provided by the manufacturer Pedrollo.

TOP-VORTEX (Pedrollo) — Submersible electric pumps for greywater TOP-VORTEX pumps are suitable for draining dirty water, which is chemically non-aggressive to the pump's constituent materials. The construction solutions used guarantee ease of use and operational safety thanks to the total cooling of the motor and the double seal on the shaft. They are recommended for domestic use, for the evacuation of dirty water, emptying tanks, domestic drains, emptying collection pits even in the presence of solid bodies in suspension up to Ø 25 mm. Construction characteristics Submersible pumps for wastewater and drainage Submersible electric pumps with grinder for sewage Submersible electric pumps for sewage Submersible pumps for sewage in micro-cast stainless steel Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy

Technical data

Feature	Value
Flow rate	up to 170 l/min (10.2 m³/h)
Head	up to 8.7 m
Liquid temperature	up to +40 °C (+90 °C for intermittent service, maximum 3 minutes)
Passage of solid bodies	up to Ø 25 mm
Maximum immersion depth	up to 3 m (with an adequately long power cable)
Minimum draining level	25 mm
Motor	2 poles
Protection degree	IP 68
Pump body	Technopolymer
Impeller	Noryl™
Motor casing	AISI 304 stainless steel
Shaft	AISI 431 stainless steel

Main features

Construction characteristics
Submersible pumps for wastewater and drainage
Submersible electric pumps with grinder for sewage
Submersible electric pumps for sewage
Submersible pumps for sewage in micro-cast stainless steel
Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy

Why choose Pedrollo

World leader in pumps: Pedrollo S.p.A., Italian excellence in electric water pumps, recycling and circularity
Complete range: surface, submersible, and submerged pumps, pressure booster sets, control panels, and accessories
Hydraulic quality: excellent hydraulic characteristics, reliability, and compactness for domestic, civil, industrial, and agricultural use
Made in Italy: Italian design and production, distributed in over 160 countries

Request a quote from AMES Srl for TOP-VORTEX: we will contact you with model, hydraulic performance, and supply conditions.

Quantity

Products may not be in stock.
Delivery times depend on the manufacturer's speed.

Specifications

Tipologia	Elettropompa
Codice articolo	TOP-VORTEX
Caudal	hasta 170 l/min (10.2 m³/h)
Altura	hasta 8.7 m
Temperatura del l quido	hasta +40 °C (+90 °C para servicio intermitente máximo de 3 minuas)
Paso de cuerpos s lidos	hasta Ø 25 mm
M xima profundidad de uso	hasta 3 m (con cable de alimentación de longitud adecuada)
Nivel m nimo de vaciado	25 mm
Motor	2 polos
Protecci n	IP 68
Cuerpo bomba	Tecnopolímero
Rodete	Noryl™
Camisa motor	Acero inoxidable AISI 304
Eje	Acero inoxidable AISI 431
