Pedrollo TRITUS - Pompe Sommergibili Per Acque Reflue E Drenaggio

Pedrollo TRITUS - Submersible Pumps For Wastewater And Drainage

Code TRITUS

Key specifications

TipologiaElettropompa
Codice articoloTRITUS
D bitjusqu'à 430 l/min (25.8 m³/h)
Hauteurjusqu'à 55 m
Temp rature du liquidejusqu'à +40° C
Passage des corps solides en suspension-

See all 15 specifications

Advantages

Pedrollo reliability: a recognized brand in the Submersible Pumps for Wastewater and Drainage sector
Consistent performance: tested for professional use
Compatibility: integrable with the Pedrollo line
AMES support: technical consultancy before and after sales

Applications

The Pedrollo TRITUS - Submersible Pumps for Wastewater and Drainage tool is intended for professional use in the following contexts:

Construction sites, infrastructure and plants
Workshops, laboratories and industrial production
Specialized technical maintenance
Operators and professionals in the Submersible Pumps for Wastewater and Drainage sector

Standards and Compliance

Reference regulations: CE marking according to applicable EU directives for the Submersible Pumps for Wastewater and Drainage sector, compliance with current technical and safety regulations, technical documentation provided by the manufacturer Pedrollo.

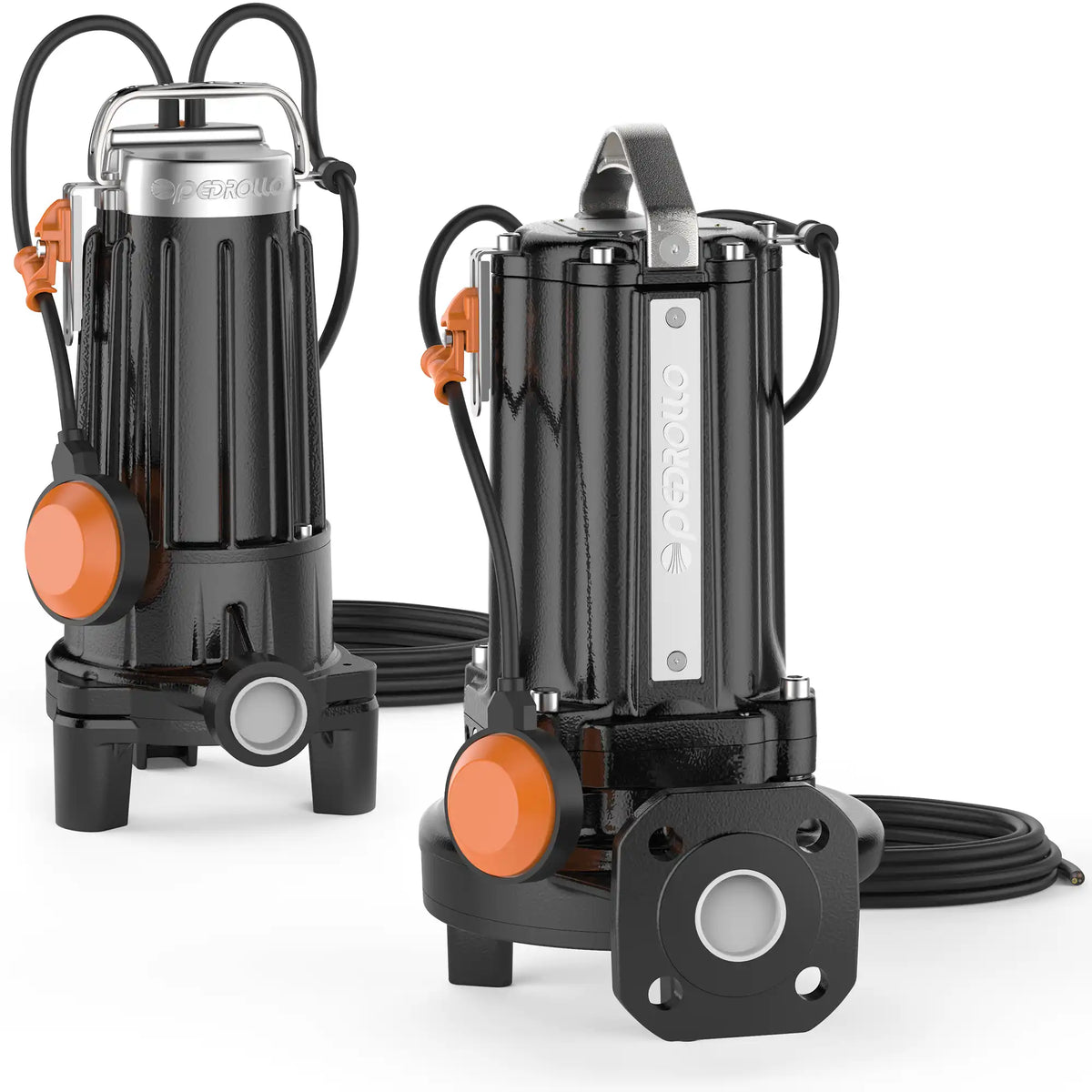

TRITUS (Pedrollo) — Submersible electric pumps with grinder for dirty water. The TRITUS series grinder pumps, built of thick cast iron, exceptional robustness, abrasion resistance and long life, are equipped with a high-resistance hardened stainless steel grinder that allows to completely grind solid bodies and fibers contained in sewage and wastewater in the domestic and civil sectors, for pressure conveyance into the sewage system through small diameter pipes. Construction characteristics Self-priming liquid ring electric pumps Single-impeller and twin-impeller centrifugal pumps Single-impeller centrifugal pumps in stainless steel Electric pumps with peripheral impeller Single-impeller centrifugal electric pumps Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy

Technical data

Characteristic	Value
Flow rate	up to 430 l/min (25.8 m³/h)
Head	up to 55 m
Liquid temperature	up to +40 °C
Passage of solids	-
Maximum immersion depth	up to 10 m (with adequate power cable length)
Minimum immersion for continuous service	– 300 mm for 0.75, 0.9, 1.1, 1.3 – 350 mm for 1.5, 2.2, TR 2.2 AP, TR 3 AP, TR 3, TR 4
Motor	2 poles
Protection rating	IP 68
Pump body	Cast iron
Impeller	Technopolymer (for TR 0.75-0.9-1.1-1.3) Micro-cast stainless steel AISI 304
Motor housing	Cast iron
Shaft	Stainless steel AISI 431
Grinder	Hardened stainless steel AISI 440C

Main features

Construction characteristics
Self-priming liquid ring electric pumps
Single-impeller and twin-impeller centrifugals
Single-impeller centrifugal pumps in stainless steel
Electric pumps with peripheral impeller
Single-impeller centrifugal electric pumps
Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy

Why choose Pedrollo

World leader in pumps: Pedrollo S.p.A., Italian excellence in electric pumps for water, recycling and circularity
Complete range: surface, submersible, drainage pumps, booster sets, control panels and accessories
Hydraulic quality: excellent hydraulic characteristics, reliability and compactness for domestic, civil, industrial and agricultural use
Made in Italy: Italian design and production, distributed in over 160 countries

Request a quote from AMES Srl for TRITUS: we will contact you with the model, hydraulic performance and supply conditions.

Quantity

Products may not be in stock.
Delivery times depend on the manufacturer's speed.

Specifications

Tipologia	Elettropompa
Codice articolo	TRITUS
D bit	jusqu'à 430 l/min (25.8 m³/h)
Hauteur	jusqu'à 55 m
Temp rature du liquide	jusqu'à +40° C
Passage des corps solides en suspension	-
Maximum profondeur d utilisation	jusqu'à 10m (avec câble d'alimentation de longueur adéquate)
Immersion minimale pour un service conti	– 300 mm pour 0.75, 0.9, 1.1, 1.3 – 350 mm pour 1.5, 2.2, TR 2.2 AP, TR 3 AP, TR 3, TR 4
Moteur	2 pôles
Protection	IP 68
Corps pompe	Fonte
Roue	Technopolymère (pour TR 0.75-0.9-1.1-1.3)Acier inoxydable AISI 304 coulé
Porte moteur	Fonte
Arbre moteur	Acier inoxydable AISI 431
Broyeur	Acier inoxydable AISI 440C trempé
