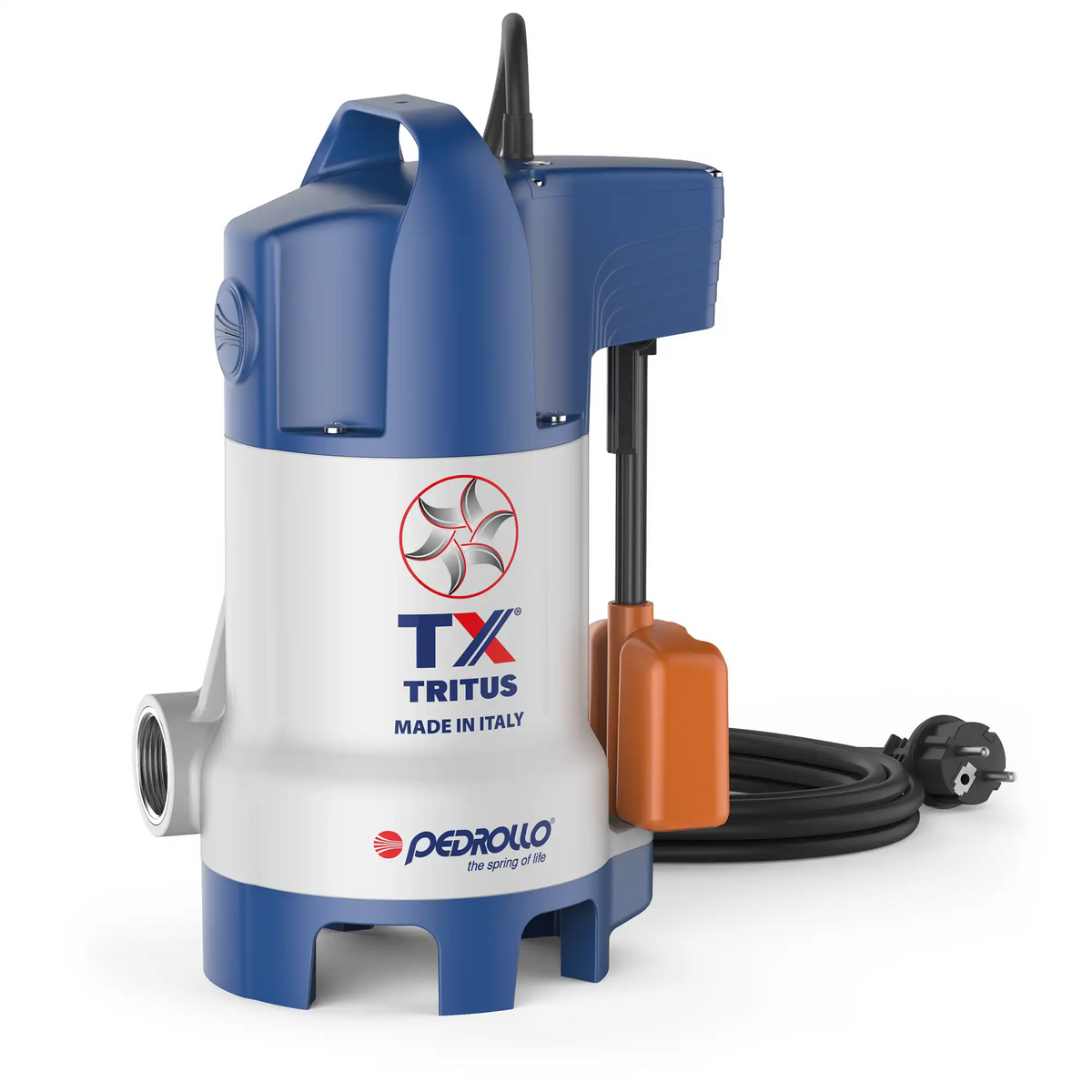

Submersible pump TRITUS-TX Pedrollo
Also known as: submersible pump
Key features
- CapacityUp to 90 l/min (5.4 m³/h)
- Motor2-pole
- Motor casingStainless steel AISI 304
- HeadUp to 12 m
- Liquid temperatureUp to +40 °C and up to +90 °C for short intervals (maximum 3 minutes) in intermittent duty
- Maximum operating depthUp to 5 m (with a suitably long power cable)
What it is
Electric pump TRITUS-TX Pedrollo. Key specifications: capacity Up to 90 l/min (5.4 m³/h), motor 2-pole, motor casing Stainless steel AISI 304.
A dirty water pump is an electric pump or engine-driven pump that draws water containing mud, sand or solids from excavations, sumps, tanks and flooded rooms.
What it is for
Used for water drainage and for pumping water out of excavations, tanks and sumps.
How to use it
Lower the submersible pump to the lowest point, suspended by a rope attached to the handle (never by the cable), and rest it on firm ground; set the engine-driven pump on a level surface, prime it by filling the pump casing with water and immerse the suction hose with its strainer. Connect the delivery hose without kinks, start the pump and check that it does not run dry. After use, run it in clean water to flush it out.
Where it is used
- Water engineering works
- Civil protection
Technical data
- Capacity: Up to 90 l/min (5.4 m³/h)
- Motor: 2-pole
- Motor casing: Stainless steel AISI 304
- Head: Up to 12 m
- Maximum operating depth: Up to 5 m (with a suitably long power cable)
- Bottom emptying level: Up to 35 mm
- Protection: IP68
- Pump body: Technopolymer
- Impeller: Noryl™
- Drive shaft: Stainless steel AISI 431
- Grinder: Hardened AISI 440C stainless steel
Who it is for
Designed for plumbers.
Related products
- Electric pump VX Pedrollo
- Electric pump TRITUS-INOX Pedrollo
- PrimoFlex Plus flexible hose 3/4" – 50m Kärcher — from the category Water Hoses and Layflat Hoses
- Generator G18000HS Genmac — from the category Portable and Wheeled Generating Sets
- Polyester braided rope — from the category Synthetic Ropes and Lines
- Browse the whole category: Electric and Engine-Driven Pumps for Dirty Water and Wastewater
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 12
| Capacity | Up to 90 l/min (5.4 m³/h) |
|---|---|
| Motor | 2-pole |
| Motor casing | Stainless steel AISI 304 |
| Head | Up to 12 m |
| Liquid temperature | Up to +40 °C and up to +90 °C for short intervals (maximum 3 minutes) in intermittent duty |
| Maximum operating depth | Up to 5 m (with a suitably long power cable) |
| Bottom emptying level | Up to 35 mm |
| Protection | IP68 |
| Pump body | Technopolymer |
| Impeller | Noryl™ |
| Drive shaft | Stainless steel AISI 431 |
| Grinder | Hardened AISI 440C stainless steel |
