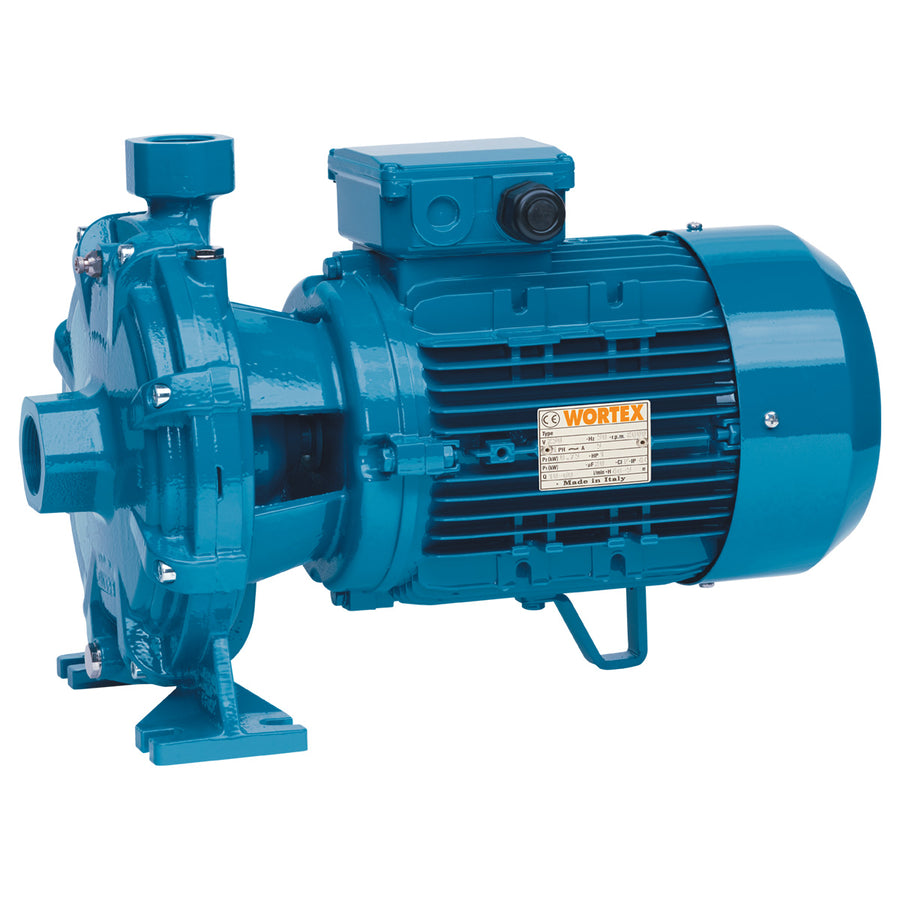

Centrifugal electric pump CB 32 210 Wortex

What it is

Centrifugal electric pump CB 32 210 Wortex. Key specifications: model PHASE, cb 32 210d Single-phase, cb t 32 210d Three-phase.

A clean water pump is a surface or submersible electric pump that lifts or pressurises clear water from wells, cisterns and tanks.

What it is for

Used in irrigation systems, from the water supply point to the emitter and for pumping water out of excavations, tanks and sumps.

How to use it

Install surface pumps on a level base close to the draw-off point, with a foot valve on the suction pipe, and fill them with water before first start-up; lower submersible pumps suspended on a rope. Use them only with clean, sand-free water and never let them run dry. Connect them to a circuit protected by an RCD and, in winter, drain outdoor pumps to protect them from frost.

Where it is used

• Agriculture
• Building services
• Water engineering works

Technical data

• Model: PHASE
• Cb 32 210d: Single-phase
• Cb t 32 210d: Three-phase
• Cb t 32 210c: Three-phase
• Cb t 32 210b: Three-phase
• Cb t 32 210a: Three-phase
• Cb t 32 215a: Three-phase
• Domestic use liquid temperature, EN 60335 2 41: Up to 35°C
• Maximum temperature, other uses: 90°C
• Ambient temperature: Up to 40°C
• Suction height (m): up to 7
• Service: Continuous
• Motor: Induction, 2-pole (2850 rpm)
• Insulation: Class F

Who it is for

Designed for plumbers, agricultural workers and heating and plumbing engineers.
