Angled toe-board connector CSC Edilizia 119-22
Key features
- MaterialAluminium
- RegulationsUNI-ISO 2768
- DimensionsNo. 6 holes Ø6.5 sheet thickness 1.5 Sca-
- Weight (kg)0,12
- Hole diameter (mm)6,5
What it is

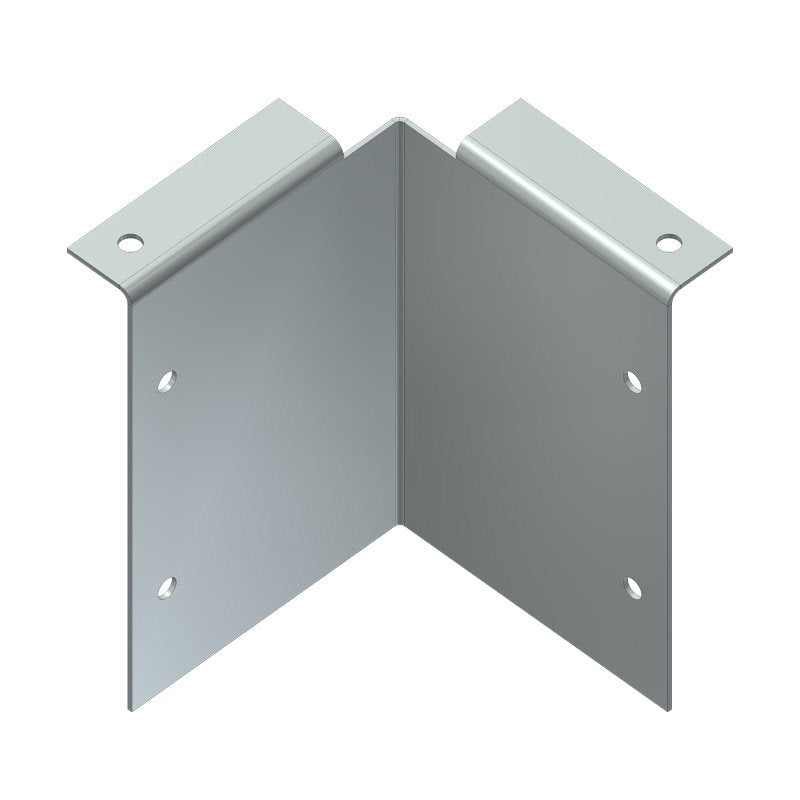

The 119-22 angled toe board joint by CSC Edilizia is a component for joining toe board profiles of safety guardrails at an angle, made of aluminium with a weight of 0.12 kg. The Ø6.5 mm holes make it possible to connect two sections laid at an angle, maintaining the continuity of the toe board at corners and changes of direction around the perimeter. Machining is carried out to tolerances in accordance with UNI-ISO 2768.
Posts, bases, joints, end caps and profiles are the components from which a guardrail is assembled: they support the rails and toe boards and connect them to each other and to the structure.
What it is for
Used for fall protection, as part of a fall arrest or work restraint system and for protecting edges and corners.
How to use it
Choose components from the same system that are compatible with one another. Fit them following the manufacturer's manual, tightening the screws and fixing the bases with anchors suited to the substrate. Do not leave gaps between one element and the next. Periodically check tightness and corrosion.
Where it is used
- Commercial construction
- Industrial construction
- Workplace safety and PPE
Technical data
- Material: Aluminium
- Regulations: UNI-ISO 2768
- Dimensions: No. 6 holes Ø6.5 sheet thickness 1.5 Sca-
- Weight (kg): 0,12
- Hole diameter (mm): 6,5
Who it is for
Designed for formwork carpenters, building maintenance operatives and health and safety officers.
Related products
- Linear toe-board connector CSC Edilizia
- Angled toe-board connector CSC Edilizia
- Highbond FIS HB + FHB dyn chemical system Fischer — from the category Chemical Anchors
- Type A Anchors, CSC Edilizia 415D — from the category Horizontal and Vertical Lifeline Anchors
- Intermediate section, 4 rungs, for caged ladder CSC Edilizia 379B — from the category Caged Safety Ladders
- Browse the whole category: Permanent Guardrails and Safety Nets
Before you order
In your request, please state the diameter and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
