Wall connector for permanent guardrails CSC Edilizia 119-26
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- DimensionsNo. 6 slots Ø12.5x18 140 120 20 80 20 20
- Weight (kg)1,40
What it is

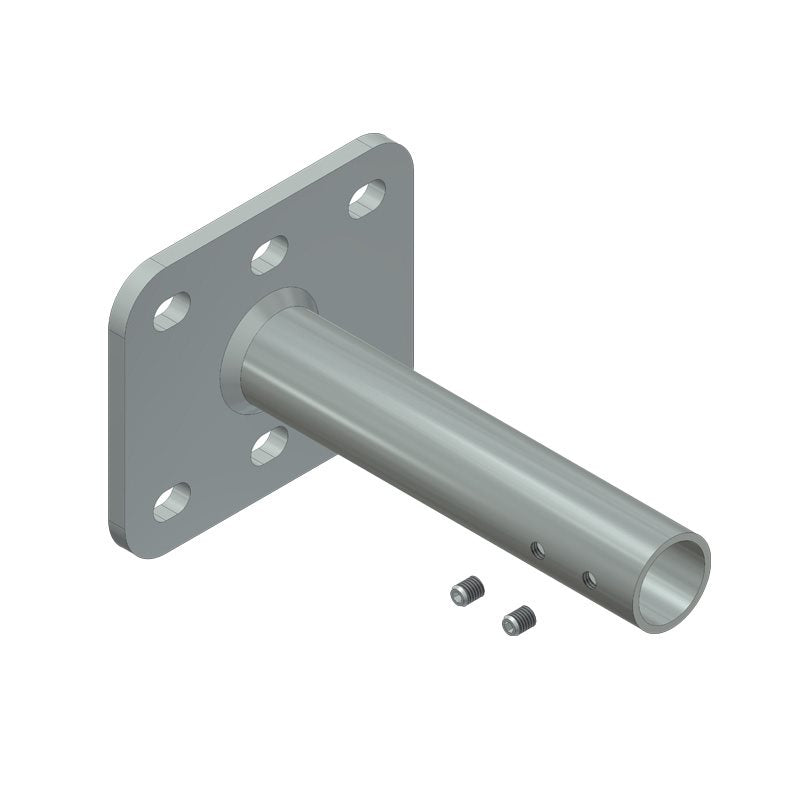

The 119-26 wall joint by CSC Edilizia is a fixing element that makes it possible to connect permanent guardrails to a vertical surface. Made of S235JR (Fe 360 B) steel with a weight of 1.40 kg, it anchors the post or the guardrail section to the wall, ensuring the stability and continuity of the protection at the junctions with vertical structures. Machining is carried out to tolerances in accordance with UNI-ISO 2768.
Posts, bases, joints, end caps and profiles are the components from which a guardrail is assembled: they support the rails and toe boards and connect them to each other and to the structure.
What it is for
Used for fall protection, as part of a fall arrest or work restraint system and for protecting edges and corners.
How to use it
Choose components from the same system that are compatible with one another. Fit them following the manufacturer's manual, tightening the screws and fixing the bases with anchors suited to the substrate. Do not leave gaps between one element and the next. Periodically check tightness and corrosion.
Where it is used
- Commercial construction
- Industrial construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Dimensions: No. 6 slots Ø12.5x18 140 120 20 80 20 20
- Weight (kg): 1,40
Who it is for
Designed for formwork carpenters, building maintenance operatives and health and safety officers.
Related products
- Angled toe-board connector CSC Edilizia
- Wall connector for permanent guardrails CSC Edilizia
- Fixing kit with chemical anchor, Bonfante (UNIVER) — from the category Chemical Anchors
- Type A – C Anchors, CSC Edilizia 413D — from the category Horizontal and Vertical Lifeline Anchors
- Closing hatch for caged ladder CSC Edilizia 379H — from the category Caged Safety Ladders
- Browse the whole category: Permanent Guardrails and Safety Nets
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 4
| Material | S235JR (Fe 360 B) |
|---|---|
| Regulations | UNI-ISO 2768 |
| Dimensions | No. 6 slots Ø12.5x18 140 120 20 80 20 20 |
| Weight (kg) | 1,40 |
