CSC EdiliziaType A – C Anchors, CSC Edilizia 411NCode 411N
Build and complete horizontal and vertical fall arrest lifelines with certified components.
Accessories collection:Lifeline AccessoriesGalvanised or Stainless Steel Cables and Wire Rope KitsFall Arrest Harnesses
All CSC Edilizia products
Type A Anchor, CSC Edilizia 421
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- DimensionsNo. 4 holes Ø18 n; no. 1 hole n32 n; no. 4 holes n 18
- Height (mm)510
- Holes (mm)Ø 18
- Slots18x45 mm
What it is

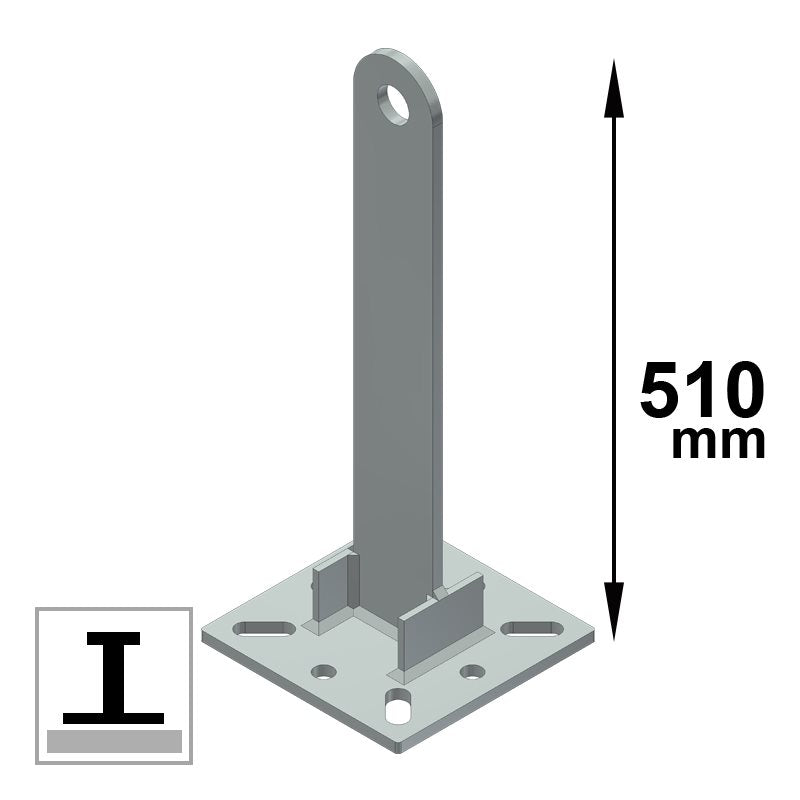

The type A anchor CSC Edilizia 421 is a structural anchoring device for fall arrest systems, made of S235JR (Fe 360 B) steel. It is characterised by a height of 510 mm, Ø 18 mm holes, 18x45 mm slots and a larger Ø 32 mm hole for the connection, with a weight of 6.50 kg; machining complies with the general tolerances of UNI-ISO 2768.
Lifeline anchors are certified posts, brackets and fixed points that are secured to the roof or structure for attaching lifelines and fall arrest devices.
What it is for
Used as an anchor point in fall protection systems, for roof maintenance and for fall protection, as part of a fall arrest or work restraint system.
How to use it
They are installed to design by a qualified installer, on a verified substrate (timber, concrete, steel, metal sheeting), using the fixings specified by the manufacturer. On completion, the installer issues the declaration and documentation, and the required periodic inspections are carried out. Workers check the anchor before clipping on and do not use it if it is deformed or has already arrested a fall.
Where it is used
- Industrial construction
- Residential construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Dimensions: No. 4 holes Ø18 n; no. 1 hole n32 n; no. 4 holes n 18
- Height (mm): 510
- Holes (mm): Ø 18
- Slots: 18x45 mm
- Hole (mm): Ø 32
- Weight (kg): 6,50
Who it is for
Designed for formwork carpenters, building maintenance operatives and health and safety officers.
Related products
- Type A Anchor, CSC Edilizia 421C
- Anchor for Sheet Metal, CSC Edilizia 800-80C
- Counter-plate for honeycomb base CSC Edilizia 416L — from the category Lifeline Accessories
- Locking accessory for DoubleBack buckles Petzl — from the category Fall Arrest Harnesses
- Lifeline 8 m flat base H40 cm and H60 cm CSC Edilizia 602C-8M-612-8M-612C-8M — from the category Ropes and Temporary Lifelines
- Browse the whole category: Horizontal and Vertical Lifeline Anchors
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 8
| Material | S235JR (Fe 360 B) |
|---|---|
| Regulations | UNI-ISO 2768 |
| Dimensions | No. 4 holes Ø18 n; no. 1 hole n32 n; no. 4 holes n 18 |
| Height (mm) | 510 |
| Holes (mm) | Ø 18 |
| Slots | 18x45 mm |
| Hole (mm) | Ø 32 |
| Weight (kg) | 6,50 |
