Anchor for Sheet Metal, CSC Edilizia 800-80C
Key features
- MaterialAluminium
- RegulationsUNI-ISO 2768
- DimensionsNo. 18 holes Ø 100 406 n13 n13 n13 154 98
- Length (mm)800
- Max pitch (mm)335
- Hole diameter (mm)5,6
What it is

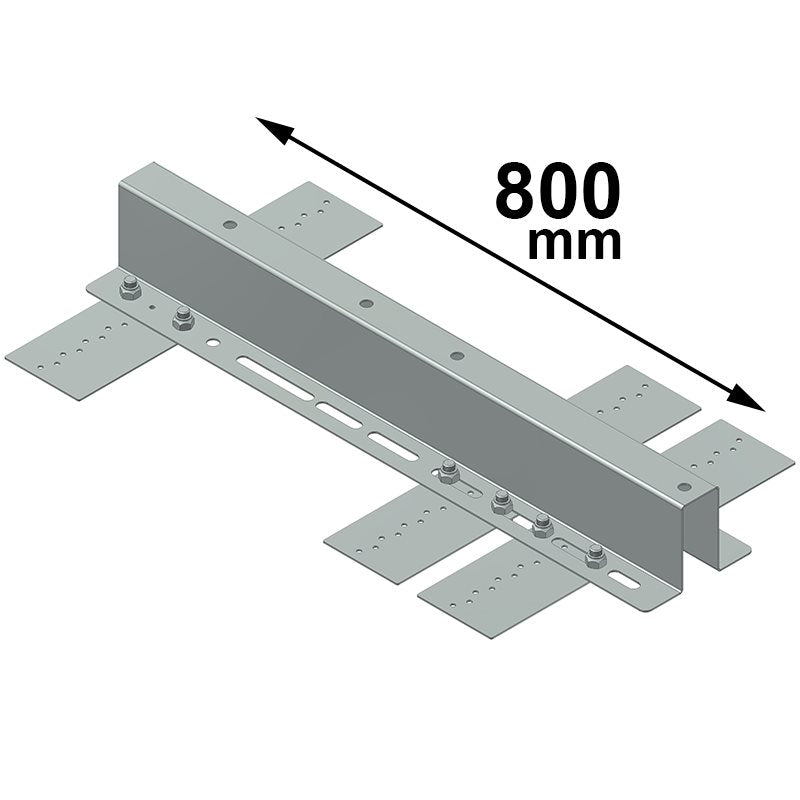

The CSC Edilizia 800-80C sheet metal anchor is a lifeline device for fixing on metal roofs, made of aluminium with a low weight of 6.80 kg. With a length of 800 mm and 18 holes of Ø5.6 mm distributed at a maximum pitch of 335 mm, it spreads the stresses along an extended profile. Production follows the general tolerances of UNI-ISO 2768, a guarantee of dimensional accuracy.
Lifeline anchors are certified posts, brackets and fixed points that are secured to the roof or structure for attaching lifelines and fall arrest devices.
What it is for
Used as an anchor point in fall protection systems, for roof maintenance and for fall protection, as part of a fall arrest or work restraint system.
How to use it
They are installed to design by a qualified installer, on a verified substrate (timber, concrete, steel, metal sheeting), using the fixings specified by the manufacturer. On completion, the installer issues the declaration and documentation, and the required periodic inspections are carried out. Workers check the anchor before clipping on and do not use it if it is deformed or has already arrested a fall.
Where it is used
- Industrial construction
- Residential construction
- Workplace safety and PPE
Technical data
- Material: Aluminium
- Regulations: UNI-ISO 2768
- Dimensions: No. 18 holes Ø 100 406 n13 n13 n13 154 98
- Length (mm): 800
- Max pitch (mm): 335
- Hole diameter (mm): 5,6
- Weight (kg): 6,80
Who it is for
Designed for formwork carpenters, building maintenance operatives and health and safety officers.
Related products
- Type A Anchor, CSC Edilizia 421
- Anchor for Sheet Metal, CSC Edilizia 800-65C
- Type A – C Anchors, CSC Edilizia 411P — from the category Lifeline Accessories
- Harness Volt, international version, Petzl — from the category Fall Arrest Harnesses
- Rope with hot-dip galvanised/stainless steel washer CSC Edilizia — from the category Ropes and Temporary Lifelines
- Browse the whole category: Horizontal and Vertical Lifeline Anchors
Before you order
In your request, please state the length, the diameter and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 7
| Material | Aluminium |
|---|---|
| Regulations | UNI-ISO 2768 |
| Dimensions | No. 18 holes Ø 100 406 n13 n13 n13 154 98 |
| Length (mm) | 800 |
| Max pitch (mm) | 335 |
| Hole diameter (mm) | 5,6 |
| Weight (kg) | 6,80 |
