Swivel prop head type A–C CSC Edilizia 404S
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- DimensionsNo. 4 holes Ø18 n; no. 4 slots 18x45 n
- Weight (kg)15
- Holes (mm)Ø 18
- Slots18x45 mm
What it is

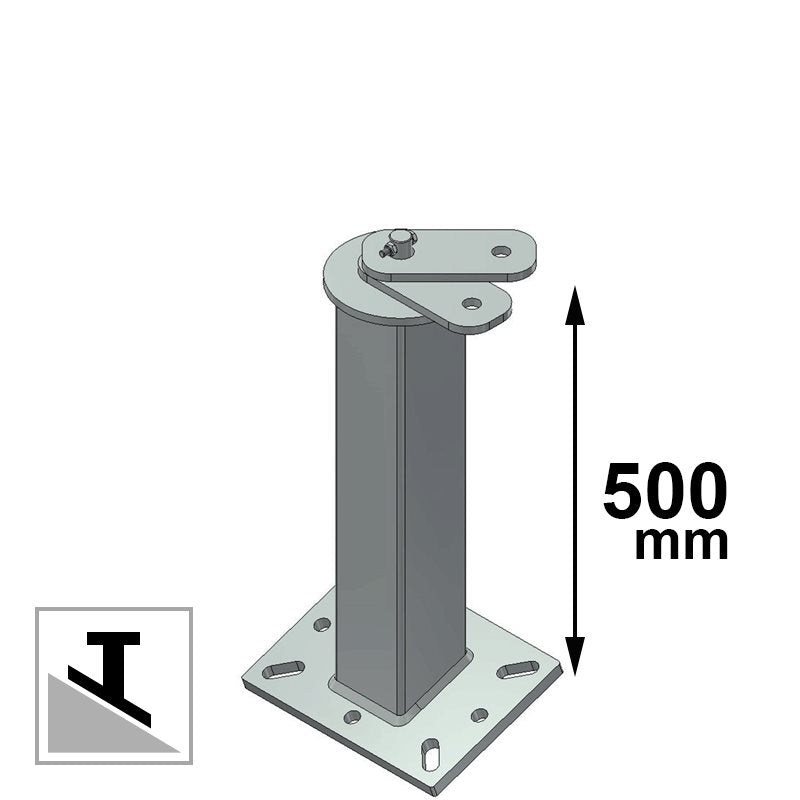

Rotating tower type A – C CSC Edilizia 404S is a robust anchor element for fall arrest systems, fitted with a rotating part that follows the operator's movements along the lifeline. Made of S235JR steel (Fe 360 B) and hot-dip galvanised to resist corrosion, it weighs 15 kg, which testifies to its structural solidity. It is fixed by means of Ø18 mm holes and 18x45 mm slots, with machining according to the general tolerances of UNI-ISO 2768.
Rigid posts and anchor posts are steel anchors fixed to the roof structure, to which lifelines and fall arrest devices are connected.
What it is for
Used as an anchor point in fall protection systems and for roof maintenance.
How to use it
The installation point and type of fixing are determined at design stage, according to the roof covering and load-bearing structure. The installer fixes the base and post with the specified anchors, restores the waterproofing and connects the cable or collars. After commissioning, complete the documentation and inspect the system periodically as specified by the manufacturer.
Where it is used
- Residential construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Dimensions: No. 4 holes Ø18 n; no. 4 slots 18x45 n
- Weight (kg): 15
- Holes (mm): Ø 18
- Slots: 18x45 mm
- Treatment: Hot-dip galvanised
Who it is for
Designed for formwork carpenters and health and safety officers.
Related products
- Swivel prop head type A–C CSC Edilizia 407S
- Swivel prop head type A–C CSC Edilizia 403S
- Type A Anchors, CSC Edilizia 415D — from the category Lifeline Accessories
- Clamps CSC Edilizia 434B-434C — from the category Galvanised or Stainless Steel Cables and Wire Rope Kits
- Fall-arrest harness Volt Wind Offshore Petzl — from the category Fall Arrest Harnesses
- Browse the whole category: Rigid Anchor Posts and Poles
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 7
| Material | S235JR (Fe 360 B) |
|---|---|
| Regulations | UNI-ISO 2768 |
| Dimensions | No. 4 holes Ø18 n; no. 4 slots 18x45 n |
| Weight (kg) | 15 |
| Holes (mm) | Ø 18 |
| Slots | 18x45 mm |
| Treatment | Hot-dip galvanised |
