Swivel prop head type A–C CSC Edilizia 407S
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- DimensionsNo. 4 holes Ø18 n; no. 4 slots 18x45 n
- Weight (kg)10,80
- Holes (mm)Ø 18
- Slots18x45 mm
What it is

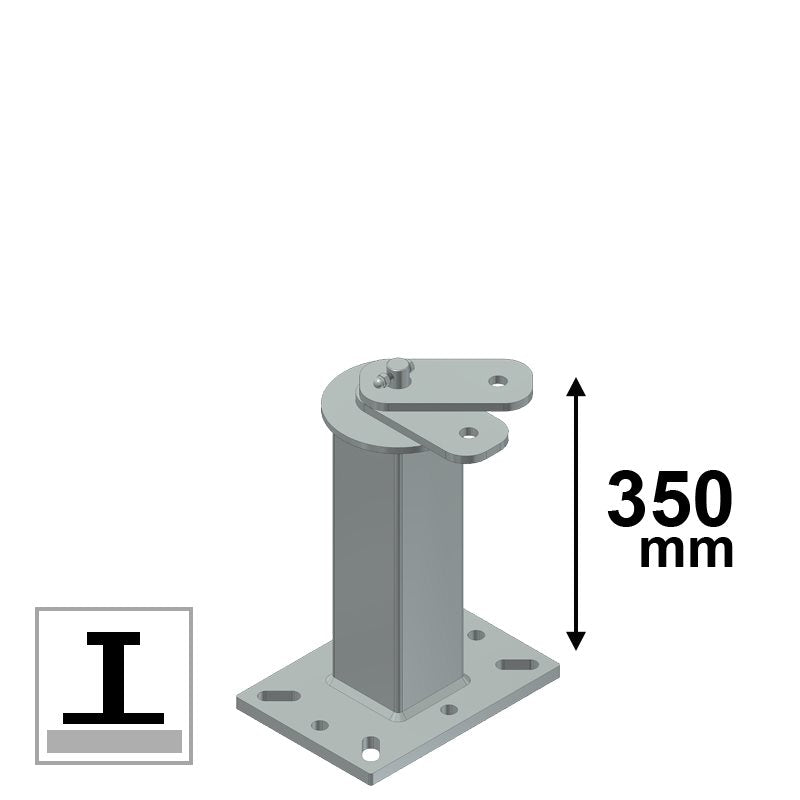

Rotating tower type A – C CSC Edilizia 407S is an anchor element for fall arrest systems with a rotating part, designed to follow the operator's movements along the lifeline. It is built from S235JR steel (Fe 360 B) and hot-dip galvanised for effective protection against corrosion; the weight is 10.80 kg. Fixing is provided by Ø18 mm holes and 18x45 mm slots, with machining in compliance with the general tolerances of UNI-ISO 2768.
Rigid posts and anchor posts are steel anchors fixed to the roof structure, to which lifelines and fall arrest devices are connected.
What it is for
Used as an anchor point in fall protection systems and for roof maintenance.
How to use it
The installation point and type of fixing are determined at design stage, according to the roof covering and load-bearing structure. The installer fixes the base and post with the specified anchors, restores the waterproofing and connects the cable or collars. After commissioning, complete the documentation and inspect the system periodically as specified by the manufacturer.
Where it is used
- Residential construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Dimensions: No. 4 holes Ø18 n; no. 4 slots 18x45 n
- Weight (kg): 10,80
- Holes (mm): Ø 18
- Slots: 18x45 mm
- Treatment: Hot-dip galvanised
Who it is for
Designed for formwork carpenters and health and safety officers.
Related products
- Swivel prop head type A–C CSC Edilizia 408S
- Swivel prop head type A–C CSC Edilizia 404S
- Counter-plate for small-base posts CSC Edilizia 707 — from the category Lifeline Accessories
- Clamps CSC Edilizia 434B-434C — from the category Galvanised or Stainless Steel Cables and Wire Rope Kits
- 2-point harness Comfort Plus, Portwest FP15 — from the category Fall Arrest Harnesses
- Browse the whole category: Rigid Anchor Posts and Poles
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 7
| Material | S235JR (Fe 360 B) |
|---|---|
| Regulations | UNI-ISO 2768 |
| Dimensions | No. 4 holes Ø18 n; no. 4 slots 18x45 n |
| Weight (kg) | 10,80 |
| Holes (mm) | Ø 18 |
| Slots | 18x45 mm |
| Treatment | Hot-dip galvanised |
