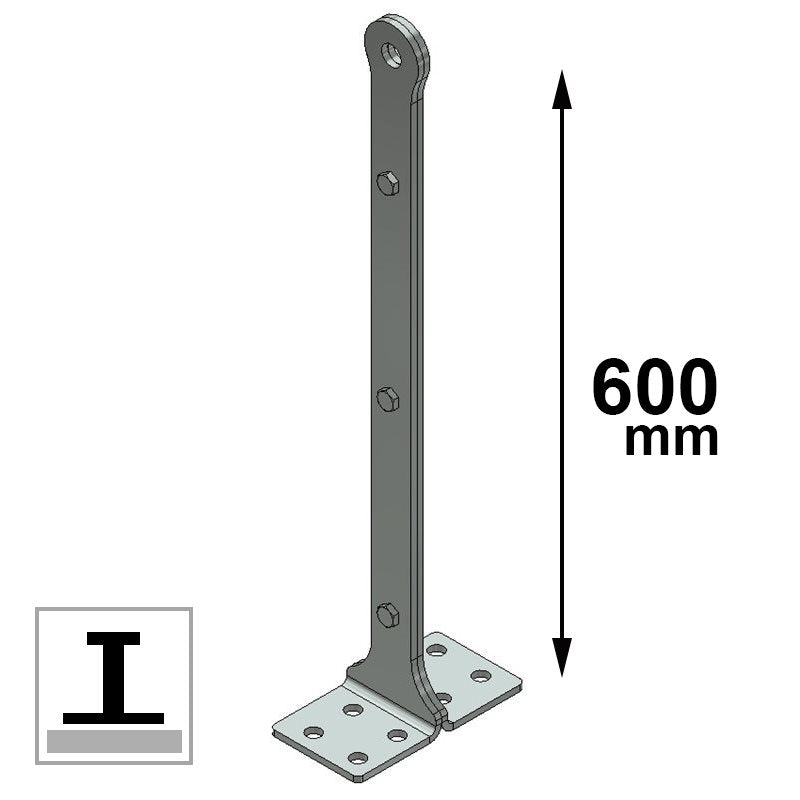

Light post, flat base, type C, CSC Edilizia 602
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- ModelFLAT END POST H 60 cm STAINLESS STEEL, FLAT END POST H 60 cm GALVANISED
- Holes8 holes Ø 14.5
What it is
The light post with flat base, type C, CSC Edilizia 602 is a load-bearing element of anchoring and lifeline systems, designed in the light version for installation on flat surfaces. It is made of S235JR (Fe 360 B) structural steel, a material chosen for its mechanical strength and reliability, and is provided with eight holes for plate fixing; machining complies with the general tolerances of the UNI-ISO 2768 standard.
Lifeline anchors are certified posts, brackets and fixed points that are secured to the roof or structure for attaching lifelines and fall arrest devices.
What it is for
Used as an anchor point in fall protection systems, for work at height, where access and restraint must be ensured for the whole job and for fall protection, as part of a fall arrest or work restraint system.
How to use it
They are installed to design by a qualified installer, on a verified substrate (timber, concrete, steel, metal sheeting), using the fixings specified by the manufacturer. On completion, the installer issues the declaration and documentation, and the required periodic inspections are carried out. Workers check the anchor before clipping on and do not use it if it is deformed or has already arrested a fall.
Where it is used
- Industrial construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Model: FLAT END POST H 60 cm STAINLESS STEEL, FLAT END POST H 60 cm GALVANISED
- Holes: 8 holes Ø 14.5
Who it is for
Designed for formwork carpenters, building maintenance operatives and health and safety officers.
Related products
- Light post, flat base, type C, CSC Edilizia 603
- Light post, flat base, type C, CSC Edilizia
- Type A Anchors, CSC Edilizia 421D — from the category Lifeline Accessories
- Fall-arrest harness Volt Wind Offshore Petzl — from the category Fall Arrest Harnesses
- Rope with hot-dip galvanised/stainless steel washer CSC Edilizia — from the category Ropes and Temporary Lifelines
- Browse the whole category: Horizontal and Vertical Lifeline Anchors
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Variant
Quantity
Specifications 4
| Material | S235JR (Fe 360 B) |
|---|---|
| Regulations | UNI-ISO 2768 |
| Model | FLAT END POST H 60 cm STAINLESS STEEL, FLAT END POST H 60 cm GALVANISED |
| Holes | 8 holes Ø 14.5 |
