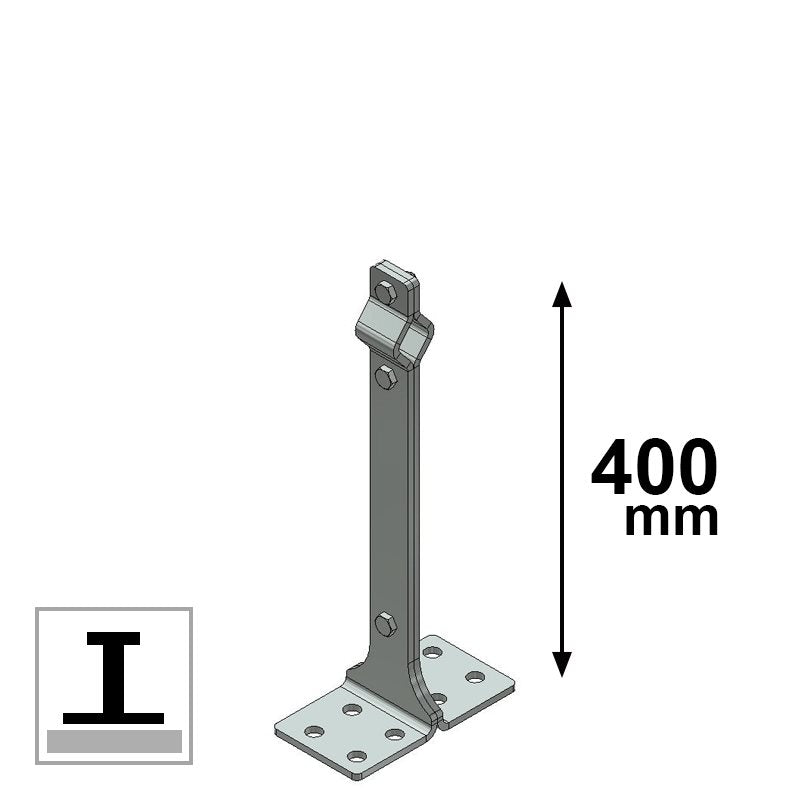

Light post, flat base, type C, CSC Edilizia 613
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- ModelINTERMEDIATE FLAT POST H 40 cm STAINLESS STEEL, INTERMEDIATE FLAT POST H 40 cm GALVANISED
- Holes8 holes Ø 14.5
What it is
The CSC Edilizia 613 type C light post with flat base is a fall arrest post intended for fixing to flat surfaces. It is made of S235JR (Fe 360 B) structural steel, a material that provides sturdiness and reliable behaviour under load. The base has Ø14.5 mm holes for anchoring, with machining carried out to the general tolerances of the UNI-ISO 2768 standard.
Lifeline anchors are certified posts, brackets and fixed points that are secured to the roof or structure for attaching lifelines and fall arrest devices.
What it is for
Used as an anchor point in fall protection systems, for work at height, where access and restraint must be ensured for the whole job and for fall protection, as part of a fall arrest or work restraint system.
How to use it
They are installed to design by a qualified installer, on a verified substrate (timber, concrete, steel, metal sheeting), using the fixings specified by the manufacturer. On completion, the installer issues the declaration and documentation, and the required periodic inspections are carried out. Workers check the anchor before clipping on and do not use it if it is deformed or has already arrested a fall.
Where it is used
- Industrial construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Model: INTERMEDIATE FLAT POST H 40 cm STAINLESS STEEL, INTERMEDIATE FLAT POST H 40 cm GALVANISED
- Holes: 8 holes Ø 14.5
Who it is for
Designed for formwork carpenters, building maintenance operatives and health and safety officers.
Related products
- Post, type A-C, H35, CSC Edilizia
- Light post, flat base, type C, CSC Edilizia 612
- Type A Anchors, CSC Edilizia 415C — from the category Lifeline Accessories
- 1-point Ultra harness Portwest FP71 — from the category Fall Arrest Harnesses
- Rope with hot-dip galvanised/stainless steel washer CSC Edilizia — from the category Ropes and Temporary Lifelines
- Browse the whole category: Horizontal and Vertical Lifeline Anchors
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Variant
Quantity
Specifications 4
| Material | S235JR (Fe 360 B) |
|---|---|
| Regulations | UNI-ISO 2768 |
| Model | INTERMEDIATE FLAT POST H 40 cm STAINLESS STEEL, INTERMEDIATE FLAT POST H 40 cm GALVANISED |
| Holes | 8 holes Ø 14.5 |
