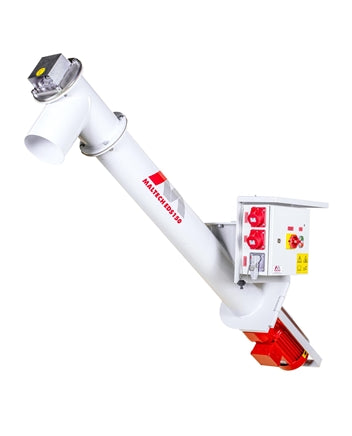

Screw conveyor EDS150 Maltech

What it is

Screw conveyor EDS150 Maltech. Key specifications: model EDS150, capacity ca. 12 m³/h, motor (kW) 5,5.

A plastering machine is a machine that mixes and pumps mortars and plasters to the spray gun; this category also includes mortar pumps and spare parts such as stators and rotors.

What it is for

Used for plastering walls and ceilings, by hand or by machine, for laying mortar and for moving materials around the site and the warehouse.

How to use it

Connect the machine to water, power or compressed air, set the water flow according to the product and load the pre-mixed material into the hopper. Spray the mortar onto the wall in even bands, keeping the gun at a constant distance, then screed and finish. At the end of the job, immediately wash out the hopper, hoses and pump, and replace the stator and rotor when the pressure drops.

Where it is used

• Commercial construction
• Residential construction
• Renovation

Technical data

• Model: EDS150
• Capacity: ca. 12 m³/h
• Motor (kW): 5,5
• Operating voltage: 400 V 50 Hz
• Control voltage (V): 42
• Width: 350 mm + 200 mm (electrical panel)
• Length (mm): 1840
• Overall weight (kg): ca. 150
• Silo height: Silo flange height + 170 mm
• Conveyor tube: With internal auger
• Electrical panel: Optional, with separate support

Who it is for

Designed for building contractors, bricklayers and construction workers.

Key strengths

• Description
• Technical data
• Dimensions and weight
• Standard equipment and accessories
• Reduced wear
• High output and cost-effectiveness
• Corrosion-resistant
• Functional design
• Can be combined with other mortar-processing machines (Plasterjet, M25, etc.)

Standards and compliance

Compliance: CE compliance under the Machinery Directive 2006/42/EC, the EMC and Low Voltage directives, operator safety systems, components designed for continuous professional use on construction sites.
