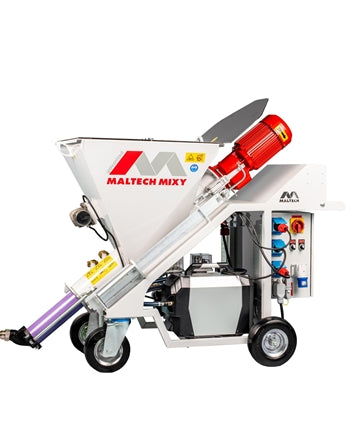

Plastering machine, Mixy, Maltech

What it is

Plastering machine, Mixy, Maltech. Key specifications: model Mixy, capacity approx. 16 l/min, max range distance (m) ca. 10.

A plastering machine is a machine that mixes and pumps mortars and plasters to the spray gun; this category also includes mortar pumps and spare parts such as stators and rotors.

What it is for

Used for plastering walls and ceilings, by hand or by machine and for mixing mortars and adhesives.

How to use it

Connect the machine to water, power or compressed air, set the water flow according to the product and load the pre-mixed material into the hopper. Spray the mortar onto the wall in even bands, keeping the gun at a constant distance, then screed and finish. At the end of the job, immediately wash out the hopper, hoses and pump, and replace the stator and rotor when the pressure drops.

Where it is used

• Residential construction
• Renovation

Technical data

• Model: Mixy
• Capacity: approx. 16 l/min
• Max range distance (m): ca. 10
• Mixy gearmotor: 2,2 kW 230 V 50 Hz
• Mixy FU gearmotor: 3,0 kW 230 V 50 Hz
• Compressor flow rate (l/min): 180
• Transport pressure (bar): ca. 15
• Min water pressure (bar): 3
• Control voltage (V): 42
• Pump: D4 ECO
• Hose material: DN25, 10 m, 40 bar
• Air hose (m): 10
• Spray lance: DN25
• Building and construction companies: Plastering, finishing, renovation

Who it is for

Designed for bricklayers and plasterers.

Key strengths

• Description
• Technical data
• Dimensions and weight
• Standard equipment and accessories
• Galvanised, powder-coated frame
• For internal and external plastering
• Handles adhesives, thermal insulation plasters, self-levelling screeds, interior and exterior plasters
• Low weight, easy-to-handle machine and easy to take apart
• High-quality components
• Available in single-phase versions with 230 V – 2.2 kW capacitor or 230 V – 3.0 kW frequency converter

Standards and compliance

Compliance: CE compliance under the Machinery Directive 2006/42/EC, the EMC and Low Voltage directives, operator safety systems, components designed for continuous professional use on construction sites.
