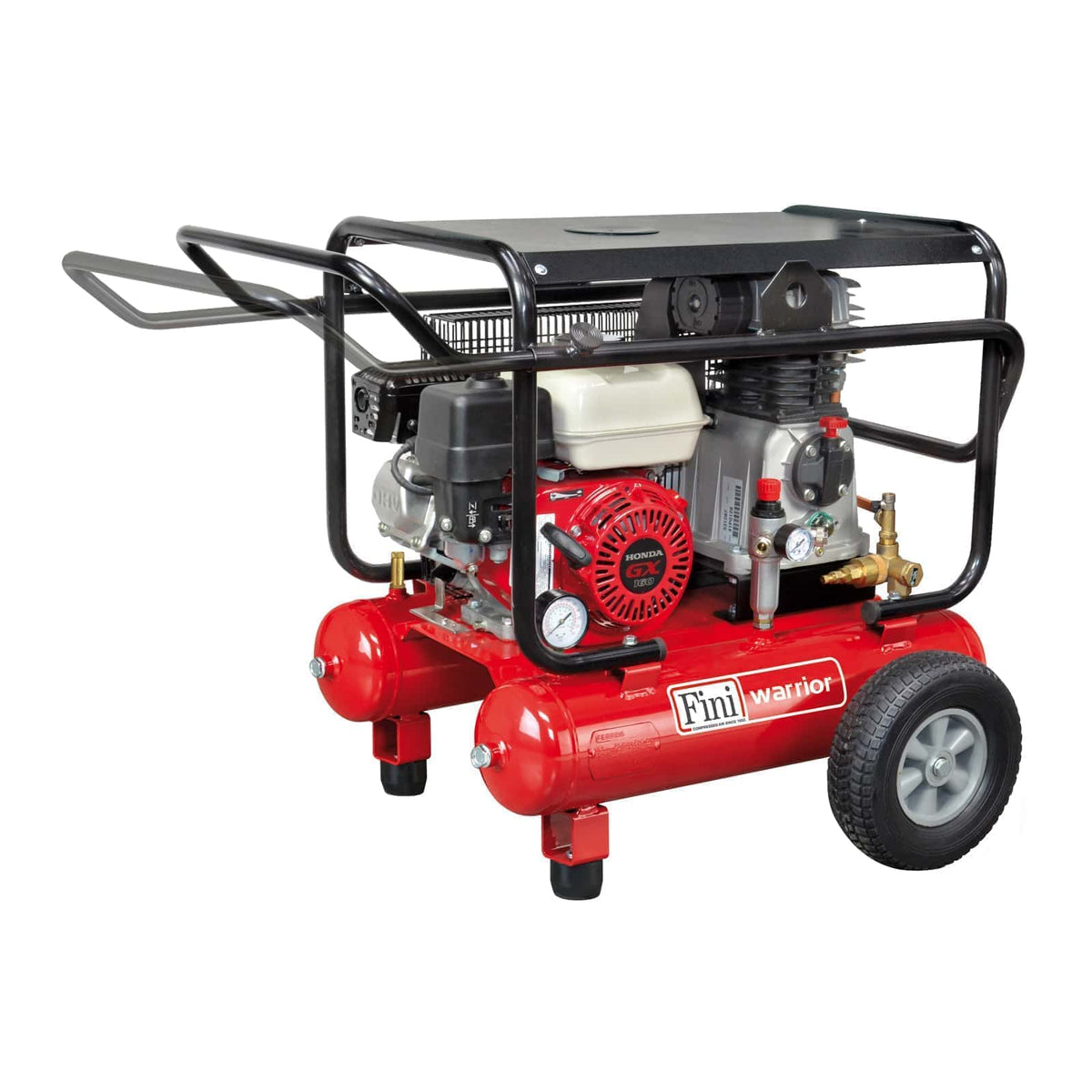

Petrol engine-driven compressor 20 L Honda Warrior MK113-5,5S Fini Compressori

What it is

Petrol engine-driven compressor 20 L Honda Warrior MK113-5,5S Fini Compressori. Key specifications: regulations PED 2014/68/EU, Machinery Directive 2006/42/EC, ISO 1217, power (HP) 5,5, tank capacity (L) 20.

The engine-driven compressor is an air compressor powered by an internal combustion engine, petrol or diesel, which does not depend on the mains electricity supply and is used where there is no power, for example on a building site.

What it is for

Used to supply air tools, from the compressor to the point of use and in compressed air systems, from generation in the compressor room to distribution on the shop floor.

How to use it

Use it only outdoors or in very well-ventilated areas, because the engine produces exhaust gases. Before starting, place it on level, stable ground and check the engine oil and fuel. After starting, let the engine warm up, set the outlet pressure and connect the tool. Switch it off and let it cool before refuelling, drain the condensate from the receiver and clean the air filters.

Where it is used

• Agriculture
• Road and motorway construction
• Residential construction

Technical data

• Regulations: PED 2014/68/EU, Machinery Directive 2006/42/EC, ISO 1217
• Power (HP): 5,5
• Tank capacity (L): 20
• Max pressure (bar): 10
• Intake air: 380 l/min / 13.4 c.f.m.
• No. of revolutions (rpm): 985
• Lubrication: With oil
• Pumping unit: MK113
• No. of cylinders: 2
• Engine type: Thermal
• Gross weight: 101 kg / 222,7 lb
• Packaging dimensions (L×P×H mm): 820 × 600 × 870

Who it is for

Designed for formwork carpenters, mechanics, construction workers and agricultural workers.
