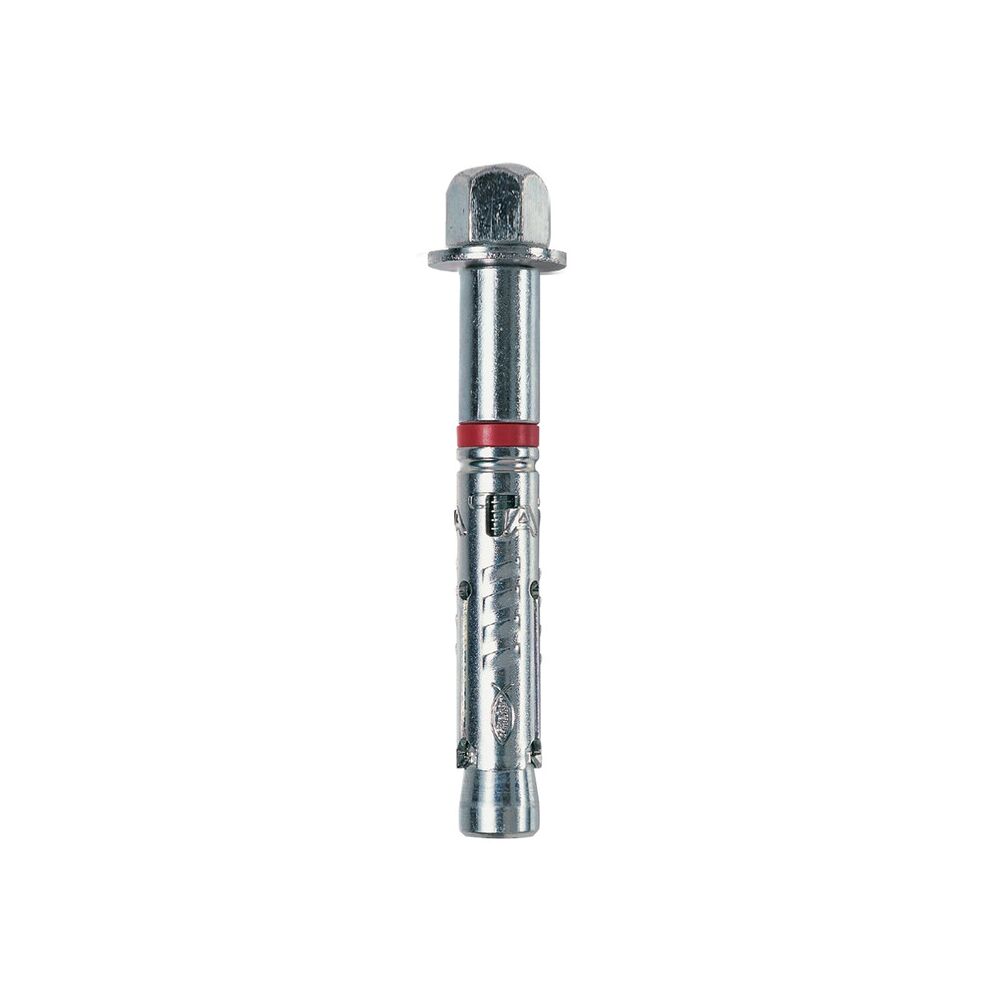

Heavy-duty fixing anchor TA M-H (blind nut) Fischer
Also known as: mechanical anchor, expansion anchor
Key features
- Typeexpanding-body anchor, blind nut
- Available sizesTA M6, M8, M10 T/25 H
- Hole diameter (mm)10, 12, 15
- Min hole depth (mm)90, 95, 110
- Tightening wrench (mm)10, 13, 17
- Pack (pcs)50 (M6, M8), 25 (M10)
What it is
Heavy-duty fixing anchor TA M-H (blind nut) Fischer. Key specifications: type expanding-body anchor, blind nut, hole diameter (mm) 10, 12, 15, min hole depth (mm) 90, 95, 110.
Heavy-duty fixings are steel or reinforced nylon anchors that carry high loads in concrete and solid masonry.
What it is for
Used for anchoring shelves, brackets and structures to walls, for mechanical fixing of structures and components to walls, ceilings and floors and for structural fixings, where the fixing is load-bearing and must be calculated.
How to use it
Drill with a bit of the specified diameter to the required depth, then clean the hole with a brush and blow-out pump. Insert the anchor through the part to be fixed, hammering it in if necessary, and tighten the nut with a torque wrench to the torque specified by the manufacturer. Observe the minimum edge distances and spacings stated in the technical data sheet.
Where it is used
- Industrial construction
- Residential construction
- Building services
Technical data
- Type: expanding-body anchor, blind nut
- Hole diameter (mm): 10, 12, 15
- Min hole depth (mm): 90, 95, 110
- Tightening wrench (mm): 10, 13, 17
- Pack (pcs): 50 (M6, M8), 25 (M10)
- Assembly: loop
Who it is for
Designed for electricians, metal fabricators and plumbers.
Related products
- Heavy-duty fixing anchor TA M-SK (flat countersunk head) Fischer
- Heavy-duty fixing anchor TA M-G (with pressed hook) Fischer
- Masonry drill bit SDS Plus II 8/100/400 Fischer — from the category Drill Bits for Granite, Masonry and Concrete
- Cordless rotary hammer SDS Plus 18V XR lithium 5.0Ah brushless - 3 modes DeWalt — from the category Rotary Hammers
- Combination wrench 19 mm Stanley STMT95912-0 — from the category Combination Spanners
- Browse the whole category: Heavy-Duty Anchors
Before you order
In your request, please state the diameter and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 9
| Type | expanding-body anchor, blind nut |
|---|---|
| Available sizes | TA M6, M8, M10 T/25 H |
| Hole diameter (mm) | 10, 12, 15 |
| Min hole depth (mm) | 90, 95, 110 |
| Tightening wrench (mm) | 10, 13, 17 |
| Pack (pcs) | 50 (M6, M8), 25 (M10) |
| Support material | non-cracked concrete C20/25 to C50/60 (approved), also C12/15 and dense natural stone |
| Assembly | loop |
| Use | metal structures, handrails, steps, cable-tray walkways, machinery, stairs, gates, facades |
Compare with similar models
Technical data declared by the manufacturers. An empty cell means the figure is not declared.
| Feature |
This model
Heavy-duty fixing anchor TA M-H (blind nut) Fischer
|
Heavy-duty fixing anchor TA M-SK (flat countersunk head) Fischer
|
Heavy-duty fixing anchor TA M-B (with threaded rod, class 5.8) Fischer
|
Heavy-duty fixing anchor TA M-G (with pressed hook) Fischer
|
|---|---|---|---|---|
| Brand | Fischer | Fischer | Fischer | Fischer |
| Type | expanding-body anchor, blind nut | expanding-body anchor, flat countersunk head | expanding-body anchor, class 5.8 threaded rod | expanding-body anchor, pressed hook |
| Available sizes | TA M6, M8, M10 T/25 H | TA M6/30, M8/30, M10/30, M12/30 SK | TA M6, M8, M10, M12 B | TA M6, M8, M10, M12 G |
| Hole diameter | 10, 12, 15 mm | 10, 12, 15, 18 mm | 10, 12, 15, 18 mm | 10, 12, 15, 18 mm |
| Min hole depth | 90, 95, 110 mm | 90, 100, 110, 125 mm | — | — |
| Tightening wrench | 10, 13, 17 mm | 4, 5, 6, 8 mm | 10, 13, 17, 19 mm | 10, 13, 17, 19 mm |
| Pack | 50 (M6, M8), 25 (M10) | 50 (M6, M8), 25 (M10), 20 (M12) | 50 (M6, M8), 25 (M10), 15 (M12) | 50 (M6, M8), 25 (M10), 15 (M12); also available in packs of 6 and blister packs of 1 |
| Assembly | loop | loop | non-through | non-through |
