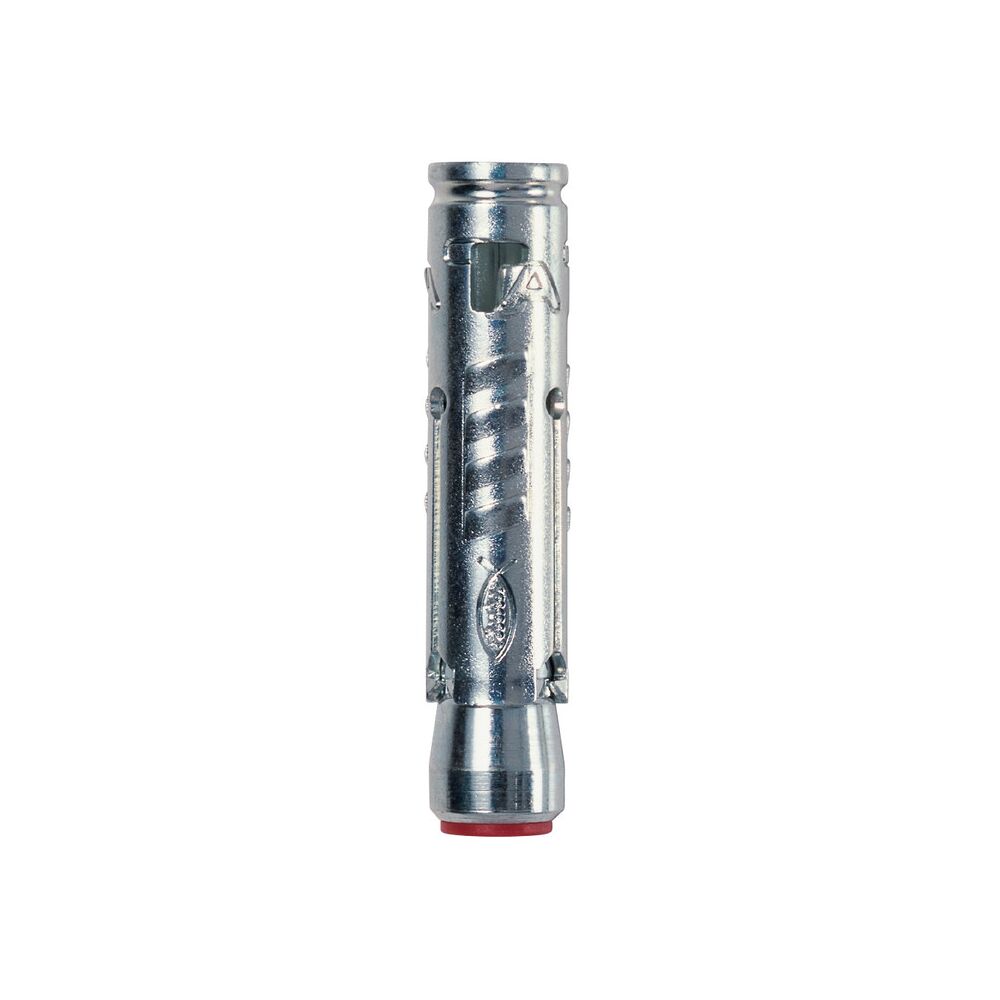

Heavy-duty fixing anchor TA M (body only, internally threaded) Fischer
Also known as: mechanical anchor, expansion anchor
Key features
- Typeexpanding-body anchor, internal metric thread
- Available sizesTA M6, M8, M10, M12
- Hole diameter (mm)10, 12, 15, 18
- Pack (pcs)50 (M6, M8), 25 (M10, M12)
- StandardETA certification
- Support materialnon-cracked concrete C20/25 to C50/60 (approved), also C12/15 and dense natural stone
What it is
Heavy-duty fixing anchor TA M (body only, internally threaded) Fischer. Key specifications: type expanding-body anchor, internal metric thread, hole diameter (mm) 10, 12, 15, 18, pack (pcs) 50 (M6, M8), 25 (M10, M12).
Heavy-duty fixings are steel or reinforced nylon anchors that carry high loads in concrete and solid masonry.
What it is for
Used for anchoring shelves, brackets and structures to walls, for mechanical fixing of structures and components to walls, ceilings and floors and for structural fixings, where the fixing is load-bearing and must be calculated.
How to use it
Drill with a bit of the specified diameter to the required depth, then clean the hole with a brush and blow-out pump. Insert the anchor through the part to be fixed, hammering it in if necessary, and tighten the nut with a torque wrench to the torque specified by the manufacturer. Observe the minimum edge distances and spacings stated in the technical data sheet.
Where it is used
- Industrial construction
- Residential construction
- Building services
Technical data
- Type: expanding-body anchor, internal metric thread
- Hole diameter (mm): 10, 12, 15, 18
- Pack (pcs): 50 (M6, M8), 25 (M10, M12)
- Standard: ETA certification
- Assembly: non-through
Who it is for
Designed for electricians, metal fabricators and plumbers.
Related products
- Heavy-duty fixing anchor TA M-B (with threaded rod, class 5.8) Fischer
- Heavy-duty fixing anchor FNA II OE (closed eyelet head) Fischer
- Concrete drill bit SDX Fischer — from the category Drill Bits for Granite, Masonry and Concrete
- Cordless rotary hammer M18 ONEFH Milwaukee — from the category Rotary Hammers
- Combination spanner 15 mm Stanley STMT95909-0 — from the category Combination Spanners
- Browse the whole category: Heavy-Duty Anchors
Before you order
In your request, please state the diameter and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 8
| Type | expanding-body anchor, internal metric thread |
|---|---|
| Available sizes | TA M6, M8, M10, M12 |
| Hole diameter (mm) | 10, 12, 15, 18 |
| Pack (pcs) | 50 (M6, M8), 25 (M10, M12) |
| Standard | ETA certification |
| Support material | non-cracked concrete C20/25 to C50/60 (approved), also C12/15 and dense natural stone |
| Assembly | non-through |
| Use | metal structures, handrails, steps, cable-tray walkways, machinery, stairs, gates, facades |
Compare with similar models
Technical data declared by the manufacturers. An empty cell means the figure is not declared.
| Feature |
This model
Heavy-duty fixing anchor TA M (body only, internally threaded) Fischer
|
Heavy-duty fixing anchor TA M-H (blind nut) Fischer
|
Heavy-duty fixing anchor TA M-B (with threaded rod, class 5.8) Fischer
|
Heavy-duty fixing anchor TA M-G (with pressed hook) Fischer
|
|---|---|---|---|---|
| Brand | Fischer | Fischer | Fischer | Fischer |
| Type | expanding-body anchor, internal metric thread | expanding-body anchor, blind nut | expanding-body anchor, class 5.8 threaded rod | expanding-body anchor, pressed hook |
| Available sizes | TA M6, M8, M10, M12 | TA M6, M8, M10 T/25 H | TA M6, M8, M10, M12 B | TA M6, M8, M10, M12 G |
| Hole diameter | 10, 12, 15, 18 mm | 10, 12, 15 mm | 10, 12, 15, 18 mm | 10, 12, 15, 18 mm |
| Pack | 50 (M6, M8), 25 (M10, M12) | 50 (M6, M8), 25 (M10) | 50 (M6, M8), 25 (M10), 15 (M12) | 50 (M6, M8), 25 (M10), 15 (M12); also available in packs of 6 and blister packs of 1 |
| Assembly | non-through | loop | non-through | non-through |
