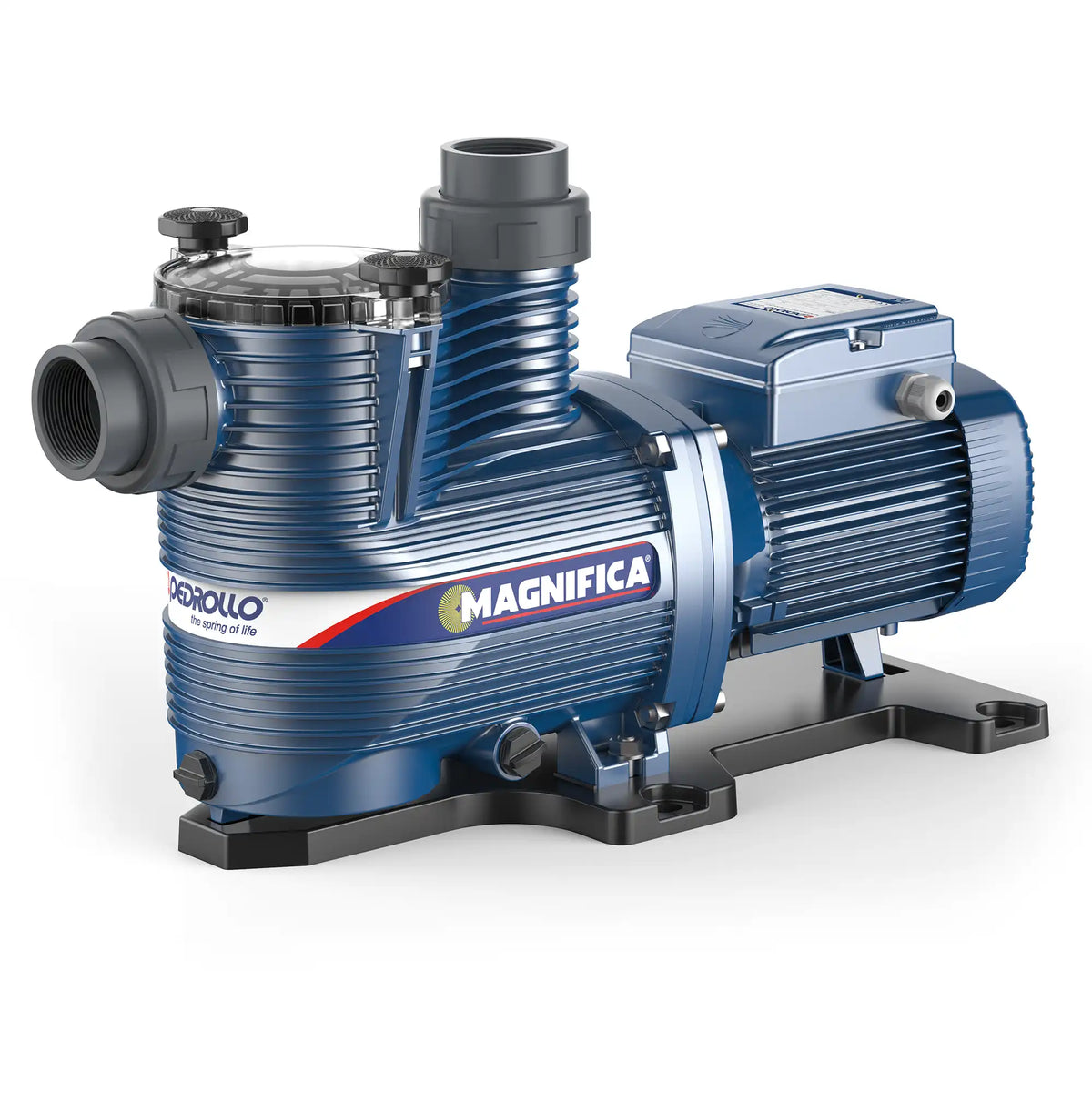

Self-priming electric pump for swimming pools MAGNIFICA Pedrollo
Key features
- CapacityUp to 700 l/min (42 m³/h)
- Head (m)up to 23
- Gauge suction height (m)up to 4
- Liquid temperatureUp to +45°C
- Ambient temperatureUp to +50°C
- Max pressure in the pump body (bar)2,5
What it is
Self-priming electric pump for swimming pools MAGNIFICA Pedrollo. Key specifications: capacity Up to 700 l/min (42 m³/h), head (m) up to 23, gauge suction height (m) up to 4.
A clean water pump is a surface or submersible electric pump that lifts or pressurises clear water from wells, cisterns and tanks.
What it is for
Used for filtering system water and for pumping water out of excavations, tanks and sumps.
How to use it
Install surface pumps on a level base close to the draw-off point, with a foot valve on the suction pipe, and fill them with water before first start-up; lower submersible pumps suspended on a rope. Use them only with clean, sand-free water and never let them run dry. Connect them to a circuit protected by an RCD and, in winter, drain outdoor pumps to protect them from frost.
Where it is used
- Building services
- Building maintenance
Technical data
- Capacity: Up to 700 l/min (42 m³/h)
- Head (m): up to 23
- Gauge suction height (m): up to 4
- Liquid temperature: Up to +45°C
- Ambient temperature: Up to +50°C
- Max pressure in the pump body (bar): 2,5
- Motor: 2-pole
- IP protection rating: IP55
- Pump body: Glass fibre-reinforced polypropylene
- Impeller: Noryl™
- Diffuser: Noryl™
- Shaft: Stainless steel AISI 431
- Seal holder insert: Glass fibre-reinforced polypropylene
Who it is for
Designed for plumbers and heating and plumbing engineers.
Related products
- Self-priming electric pump for swimming pools MAXIMA Pedrollo
- Electric pump 6ST Pedrollo
- Trough water pipe — from the category Water Hoses and Layflat Hoses
- Reducing sockets MF art. 246 — from the category Galvanised Pipe Fittings
- One-piece underground tanks, Exagon cistern, polyethylene, Rototec — from the category Tanks, Cisterns and Drums for Liquid Storage
- Browse the whole category: Clean Water Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 13
| Capacity | Up to 700 l/min (42 m³/h) |
|---|---|
| Head (m) | up to 23 |
| Gauge suction height (m) | up to 4 |
| Liquid temperature | Up to +45°C |
| Ambient temperature | Up to +50°C |
| Max pressure in the pump body (bar) | 2,5 |
| Motor | 2-pole |
| IP protection rating | IP55 |
| Pump body | Glass fibre-reinforced polypropylene |
| Impeller | Noryl™ |
| Diffuser | Noryl™ |
| Shaft | Stainless steel AISI 431 |
| Seal holder insert | Glass fibre-reinforced polypropylene |
