Electric pump 2CP Pedrollo
Key features
- CapacityUp to 450 l/min (27 m³/h)
- Head (m)up to 112
- Gauge suction height (m)up to 7
- Liquid temperatureFrom -10 °C to +90 °C
- Ambient temperatureFrom -10 °C to +40 °C
- Max pressure in the pump body (bar)10
What it is

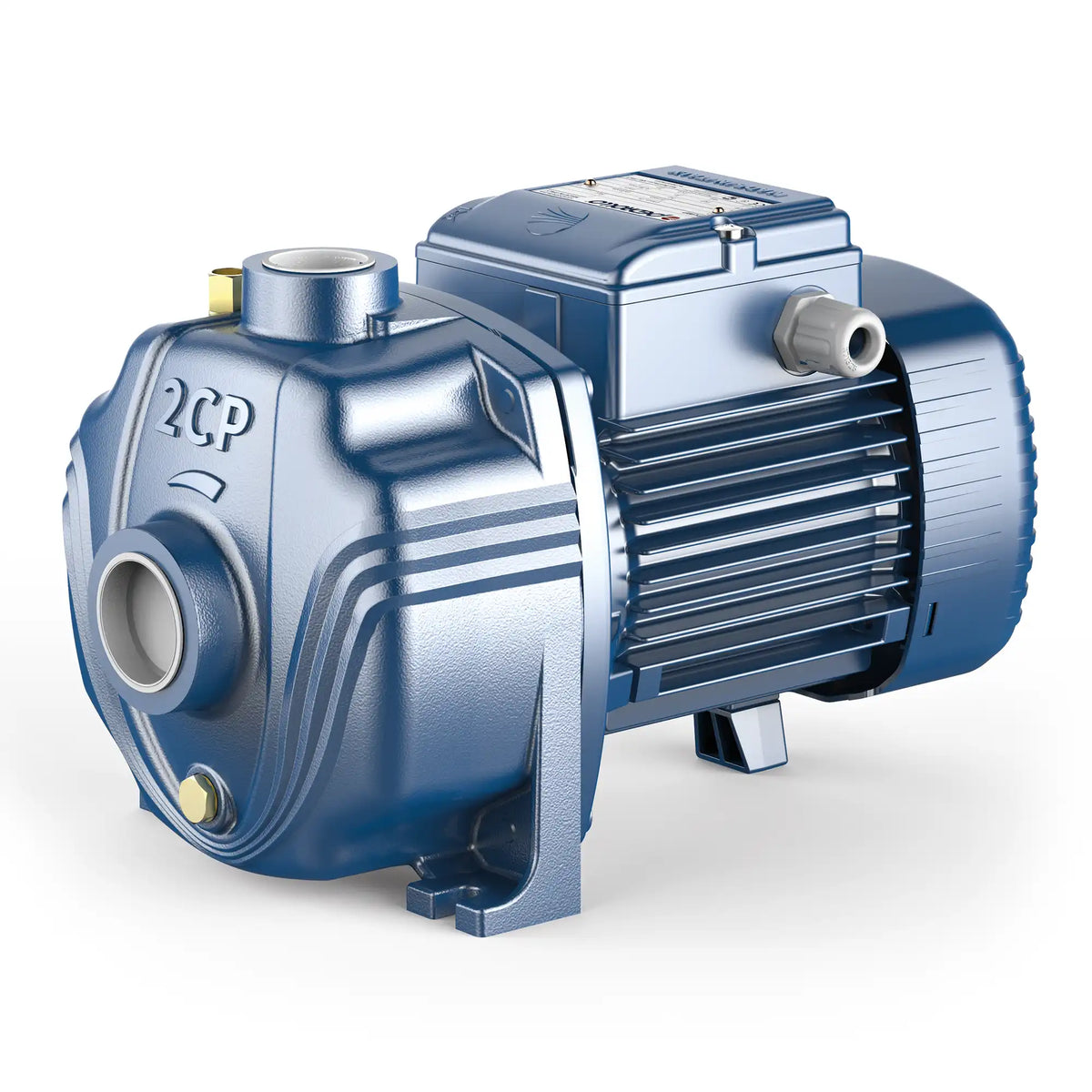

2CP (code 2CP) is a Pedrollo electric pump — twin-impeller centrifugal electric pumps, with a flow rate of up to 450 l/min (27 m³/h), head of up to 112 m, manometric suction height of up to 7 m. Professional product, reliable for intensive use.
A clean water pump is a surface or submersible electric pump that lifts or pressurises clear water from wells, cisterns and tanks.
What it is for
Used in irrigation systems, from the water supply point to the emitter and for pumping water out of excavations, tanks and sumps.
How to use it
Install surface pumps on a level base close to the draw-off point, with a foot valve on the suction pipe, and fill them with water before first start-up; lower submersible pumps suspended on a rope. Use them only with clean, sand-free water and never let them run dry. Connect them to a circuit protected by an RCD and, in winter, drain outdoor pumps to protect them from frost.
Where it is used
- Agriculture
- Building services
- Water engineering works
Technical data
- Capacity: Up to 450 l/min (27 m³/h)
- Head (m): up to 112
- Gauge suction height (m): up to 7
- Liquid temperature: From -10 °C to +90 °C
- Ambient temperature: From -10 °C to +40 °C
- Max pressure in the pump body (bar): 10
- Motor: 2-pole
- IP protection rating: IPX4
- Suction body: Cast iron
- Discharge body: Cast iron
- Impellers: Brass
- Shaft: Stainless steel AISI 431
Who it is for
Designed for plumbers, agricultural workers and heating and plumbing engineers.
Related products
- Electric pump 3SR Pedrollo
- Electric pump 2-5CR Pedrollo
- Capillary irrigation hose — from the category Water Hoses and Layflat Hoses
- Reducing sockets FF art. 240 — from the category Galvanised Pipe Fittings
- One-piece underground tanks, smooth Panettone, polyethylene, Rototec — from the category Tanks, Cisterns and Drums for Liquid Storage
- Browse the whole category: Clean Water Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 13
| Item code | 2CP |
|---|---|
| Capacity | Up to 450 l/min (27 m³/h) |
| Head (m) | up to 112 |
| Gauge suction height (m) | up to 7 |
| Liquid temperature | From -10 °C to +90 °C |
| Ambient temperature | From -10 °C to +40 °C |
| Max pressure in the pump body (bar) | 10 |
| Motor | 2-pole |
| IP protection rating | IPX4 |
| Suction body | Cast iron |
| Discharge body | Cast iron |
| Impellers | Brass |
| Shaft | Stainless steel AISI 431 |
