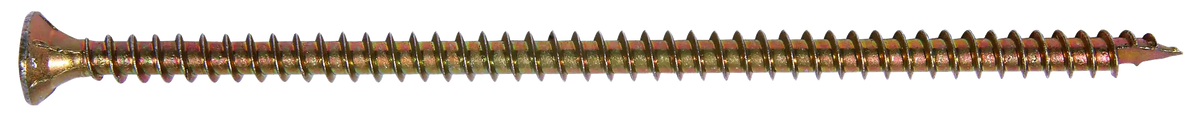

Yellow zinc-plated countersunk flat head wood screw Unifix

Code 0155-8-160-01

Key features

  • DriveTX40, TX50
  • Head diameter15, 18,5
  • L thread150, 170, 190, 210, 230, 250, 270, 290, 340, 390, 153, 173, 193, 213, 233, 253, 273, 293, 343, 393
  • Screw diameter x length8x160, 8x180, 8x200, 8x220, 8x240, 8x260, 8x280, 8x300, 8x350, 8x400, 10x160, 10x180, 10x200, 10x22…
  • MaterialYellow zinc-plated steel

What it is

The Unifix VG Stardrive yellow-zinc-plated countersunk flat head screw (code 0155-8-160-01) is a structural screw designed for high-strength joints in glulam and prefabricated elements. An ideal solution for heavy carpentry, industrial joinery and timber construction where secure, durable fastenings are needed without pre-drilling.

Wood screws are screws with a wood thread, also supplied with a plug or collar, for assembling timber and fixing frames and battens to walls.

What it is for

Used in carpentry work, for fixing into timber, from assembly work to carpentry and for structural fixings, where the fixing is load-bearing and must be calculated.

How to use it

Choose a length that penetrates at least two-thirds into the second piece. In hardwoods or near edges, pre-drill to prevent the wood from splitting. Drive with a bit of the right size, keeping the screwdriver in line and setting the clutch so as not to strip the head.

Where it is used

  • Industrial construction
  • Residential construction

Technical data

  • Drive: TX40, TX50
  • Head diameter: 15, 18,5
  • Material: Yellow zinc-plated steel

Who it is for

Designed for formwork carpenters and joiners.

Related products

Before you order

In your request, please state the diameter and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.

Variant
Quantity
Specifications 5
DriveTX40, TX50
Head diameter15, 18,5
L thread150, 170, 190, 210, 230, 250, 270, 290, 340, 390, 153, 173, 193, 213, 233, 253, 273, 293, 343, 393
Screw diameter x length8x160, 8x180, 8x200, 8x220, 8x240, 8x260, 8x280, 8x300, 8x350, 8x400, 10x160, 10x180, 10x200, 10x22…
MaterialYellow zinc-plated steel

Compare with similar models

Technical data declared by the manufacturers. An empty cell means the figure is not declared.

This model Yellow zinc-plated countersunk flat head wood screw Unifix Yellow zinc-plated reduced cheese head wood screw Unifix White zinc-plated hex head wood screw class 4.8 UNI704 DIN571 Unifix A2 stainless steel hex head wood screw UNI704 DIN571 Unifix
Brand UnifixUnifixUnifixUnifix
Drive TX40, TX50TX40CH8, CH10, CH13, CH17, CH19CH10, CH13, CH17
Head diameter 15, 18,510,28,63, 10,89, 14,2, 18,72, 20,8810,89, 14,2, 18,72
Material Yellow zinc-plated steelYellow zinc-plated steelWhite galvanised steelStainless steel A2
