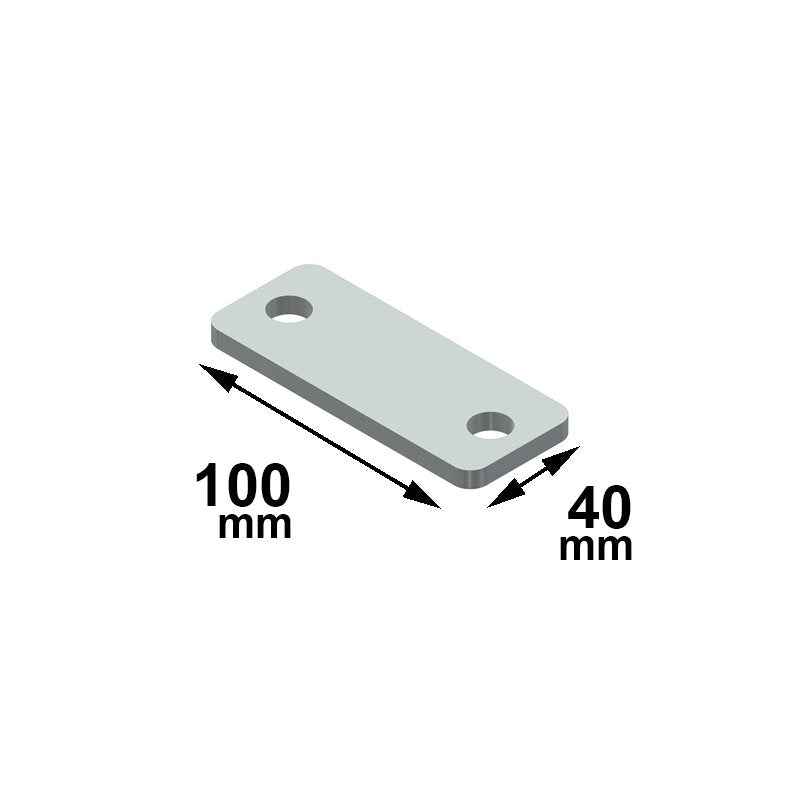

Counter-plate for 601D CSC Edilizia 601U
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- Weight (kg)0,20
- Hole diameter (mm)12,5
What it is
The CSC Edilizia 601U counterplate is the reinforcing element paired with component 601D in lifeline anchoring systems. Made from S235JR steel (Fe 360 B) with a weight of 0.20 kg, it is fitted on the opposite side of the structure to counter and tighten the fixing; the Ø12.5 mm hole ensures precise coupling with the corresponding element. Machining is carried out to tolerances compliant with UNI-ISO 2768.
The backing plate is the plate placed on the opposite side of the structure from the base or anchor, to spread the load when the through bolts are tightened.
What it is for
Used as an anchor point in fall protection systems, for work at height, where access and restraint must be ensured for the whole job and for fall protection, as part of a fall arrest or work restraint system.
How to use it
Position it on the opposite side of the fixing point and tighten it with the screws provided to the stated torque. Check that it sits snugly against the structure.
Where it is used
- Industrial construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Weight (kg): 0,20
- Hole diameter (mm): 12,5
Who it is for
Designed for formwork carpenters, building maintenance operatives and health and safety officers.
Related products
- Counter-plate for 606 CSC Edilizia 606A
- Counter-plate for 601 CSC Edilizia 601A
- Type A Anchors, CSC Edilizia 601D — from the category Horizontal and Vertical Lifeline Anchors
- Fall protection kit, Gargano, Irudek — from the category Fall Arrest Harnesses
- Fall-arrest lanyard with energy absorber ASTUN I 170CSS (361-C) Irudek — from the category Lanyards and Energy Absorbers
- Browse the whole category: Lifeline Accessories
Before you order
In your request, please state the diameter and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
