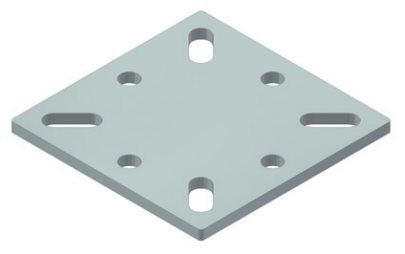

Counter-plate for rigid anchor posts CSC Edilizia 417
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- Holes (mm)Ø 18
- Slots18x27 mm
- Weight (kg)2,83
What it is
The backing plate for non-deformable anchors CSC Edilizia 417 is a counter-plate element for fixing the anchors of fall arrest systems. Made of S235JR steel (Fe 360 B), it has Ø 18 mm holes and 18x27 mm slots for fixing, with a low weight of 2.83 kg; machining follows the general tolerances of UNI-ISO 2768.
The backing plate is the plate placed on the opposite side of the structure from the base or anchor, to spread the load when the through bolts are tightened.
What it is for
Used as an anchor point in fall protection systems, for work at height, where access and restraint must be ensured for the whole job and for fall protection, as part of a fall arrest or work restraint system.
How to use it
Position it on the opposite side of the fixing point and tighten it with the screws provided to the stated torque. Check that it sits snugly against the structure.
Where it is used
- Industrial construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Holes (mm): Ø 18
- Slots: 18x27 mm
- Weight (kg): 2,83
Who it is for
Designed for formwork carpenters, building maintenance operatives and health and safety officers.
